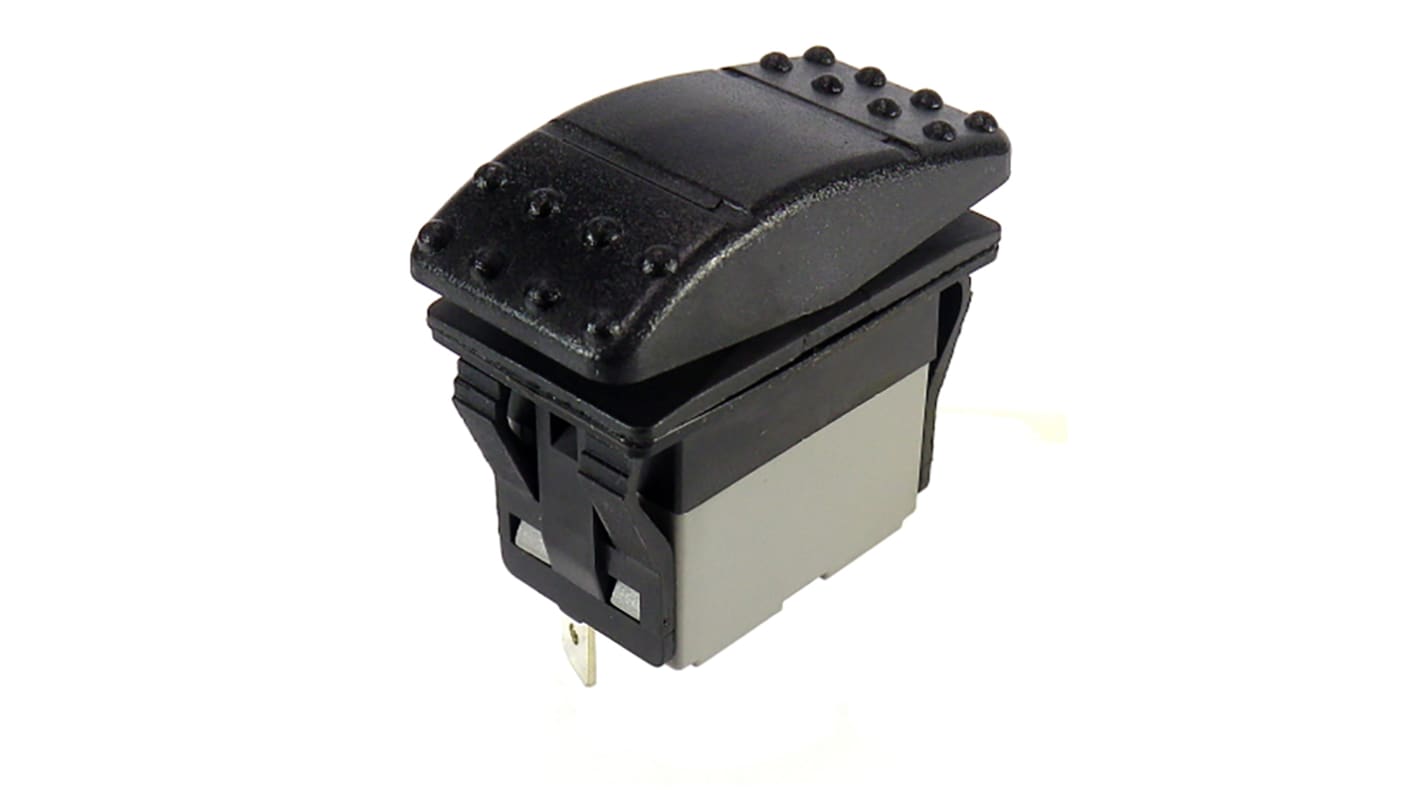

RS PRO Illuminated DPST, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 174-8306
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 03/10/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Box of 500)
MYR85.271
| Units | Per Unit | Per Box* |
| 500 - 500 | MYR85.271 | MYR42,635.50 |
| 1000 - 4500 | MYR83.958 | MYR41,979.00 |
| 5000 + | MYR69.098 | MYR34,549.00 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 174-8306
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Power Level, available from SPST to DPDT with a variety of options for actuator and actuator symbol.
• Mounting unit is available to simply the installation when several switches are required
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | Latching |
| Panel Cut Out Width | 37mm |
| Panel Cut Out Height | 21.1mm |
| Contact Current Rating | 5 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP67 |
| Terminal Type | Quick Connect |
| AC Voltage Rating | 125 → 250V |
| Actuator Shape | Rectangular |
| DC Voltage Rating | 30V |
| Panel Cut Out Size | 21.1 x 37mm |
| Operating Temperature Range | -20 → +85°C |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 20mΩ |
| Case Material | Polyamide |
| Contact Material | Copper |
| Maximum Operating Temperature | +85°C |
