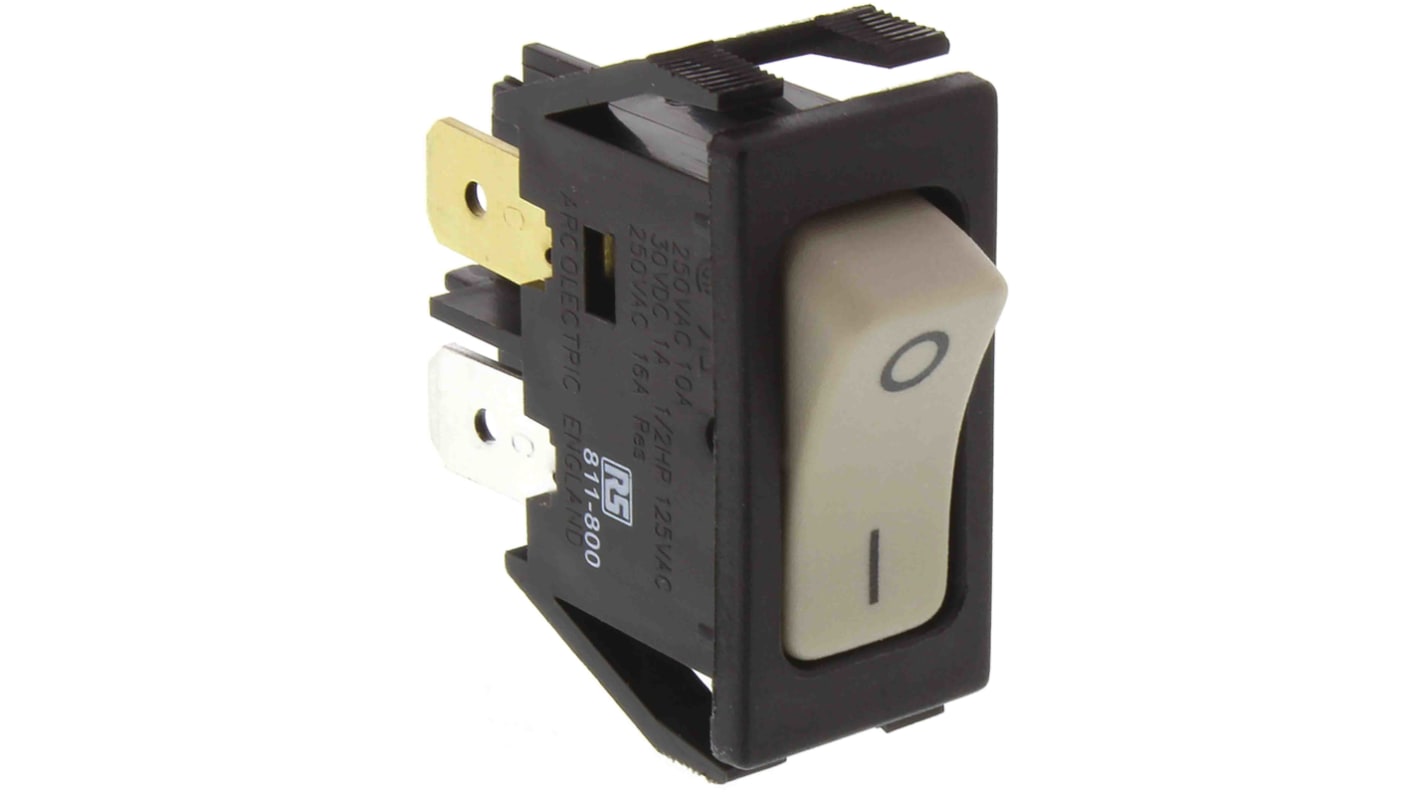

Arcolectric (Bulgin) Ltd DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 811-800
- Mfr. Part No.:
- C1250APAAD
- Manufacturer:
- Arcolectric (Bulgin) Ltd
38 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
505 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR6.16
| Units | Per Unit |
| 1 - 49 | MYR6.16 |
| 50 - 99 | MYR6.05 |
| 100 - 249 | MYR5.85 |
| 250 - 499 | MYR5.74 |
| 500 + | MYR5.64 |
- RS Stock No.:
- 811-800
- Mfr. Part No.:
- C1250APAAD
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Mini Double Pole
A fully approved double pole rocker switch
Fits into the space traditionally required for a single pole switch
DPST silver contacts
Connection via 6·3mm faston connectors
>3mm contact gap
Nylon 66 94 V-2
Fits into the space traditionally required for a single pole switch
DPST silver contacts
Connection via 6·3mm faston connectors
>3mm contact gap
Nylon 66 94 V-2
Approvals
ENEC, VDE, SEV, SEMKO, IMQ, BEAB, UL recognised component, CSA certified
Approvals
ENEC, VDE, SEV, SEMKO, IMQ, BEAB, UL recognised component, CSA certified
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 12.4mm |
| Panel Cut Out Height | 27.2mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Illuminated | No |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| AC Voltage Rating | 250V |
| DC Voltage Rating | 30V |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 27.2 x 12.4mm |
| Contact Material | Silver Alloy |
| Legend Text Colour | Black |
| Contact Resistance | 100mΩ |
| Case Material | Nylon 66 |
