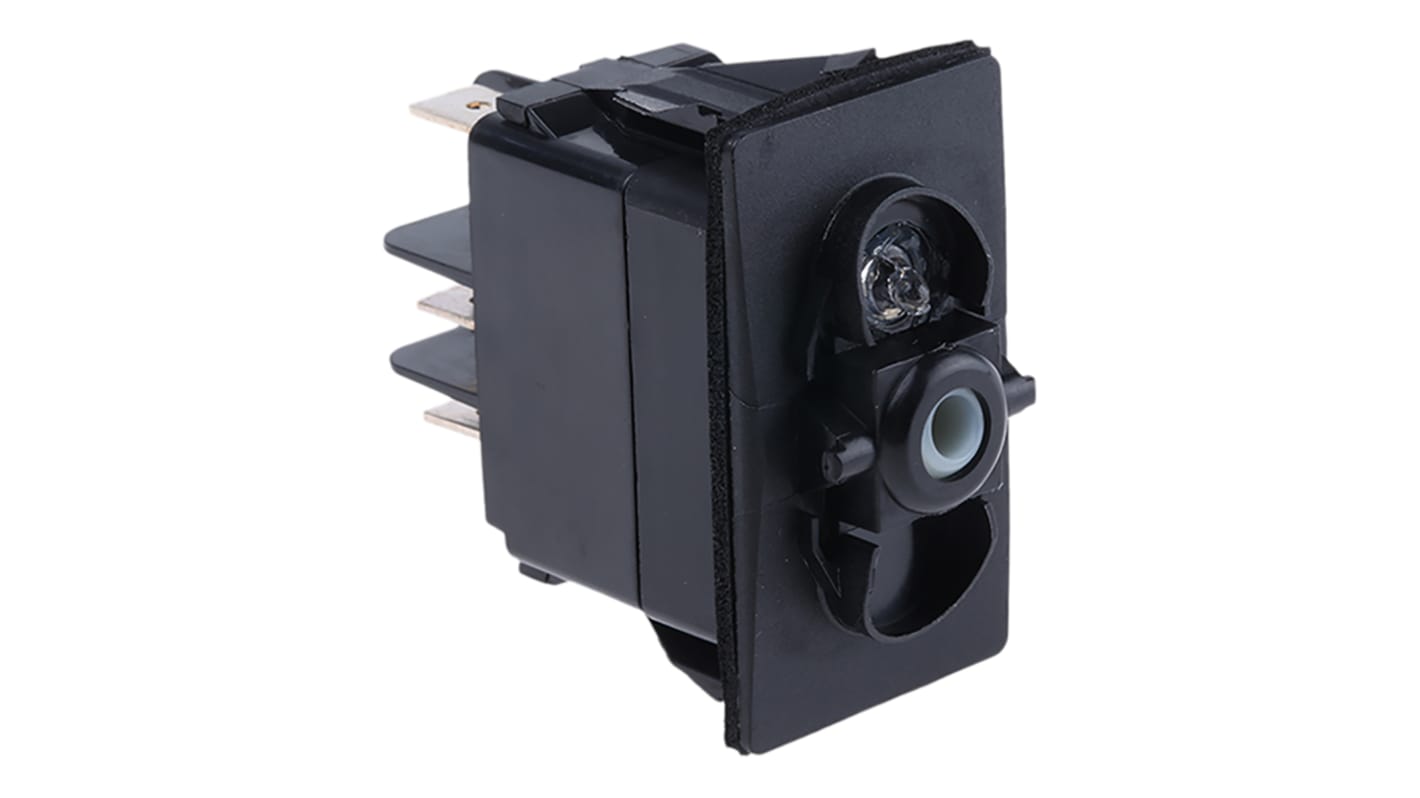

Carlingswitch DPST, Latching Rocker Switch Panel Mount

RS Stock No.:: 665-900
Mfr. Part No.:: RCV-37106255
Manufacturer:: Carlingswitch

Carlingswitch DPST, Latching Rocker Switch Panel Mount

In Global stock for delivery within 4 - 6 working days

Added

Price Each

MYR85.62

Units	Per Unit
1 - 49	MYR85.62
50 - 99	MYR83.84
100 - 249	MYR81.27
250 - 499	MYR79.30
500 +	MYR77.59

RS Stock No.:: 665-900
Mfr. Part No.:: RCV-37106255
Manufacturer:: Carlingswitch

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

Coloured Rocker Switches, Contura Series

IP68 rating if used without panel assembly system
These switches are terminated with 6.35mm fast-on terminals and are supplied with a panel-sealing gasket
Illuminated versions are available with a choice of 250V neon or red or green LEDs with integral resistors for 12V operation
Also available is a bezeled panel assembly system which permits sub-assemblies to be snapped into place (system does not have IP68 rating)
Contact resistance: 10mΩ
Contact material: Silver
Panel cut-out: 21.08 x 36.83

Note

Switch supplied without actuator, see stk. no 665-528 etc typically
The black/green lens actuator 665-556 is not suitable for use with neon or red LED illuminated switches

Approvals

UL; CSA; VDE; BEAB; DEMKO; SEMKO; NEMKO; FIMKO

Specifications

Attribute	Value
Contact Configuration	Double Pole Single Throw (DPST)
Switch Operation	Latching
Panel Cut Out Width	36.83mm
Panel Cut Out Height	21.08mm
Contact Current Rating	10 A @ 250 V ac
Illuminated	No
Mounting Type	Panel Mount
IP Rating	IP68
Terminal Type	Quick Connect
Panel Cut Out Size	21.08 x 36.83mm
AC Voltage Rating	250V
Contact Material	Silver
Minimum Operating Temperature	-40°C
Contact Resistance	10mΩ
Case Material	PET
Mechanical Life	150000Operations
Maximum Operating Temperature	+70°C
Operating Temperature Range	-40 → +70°C
