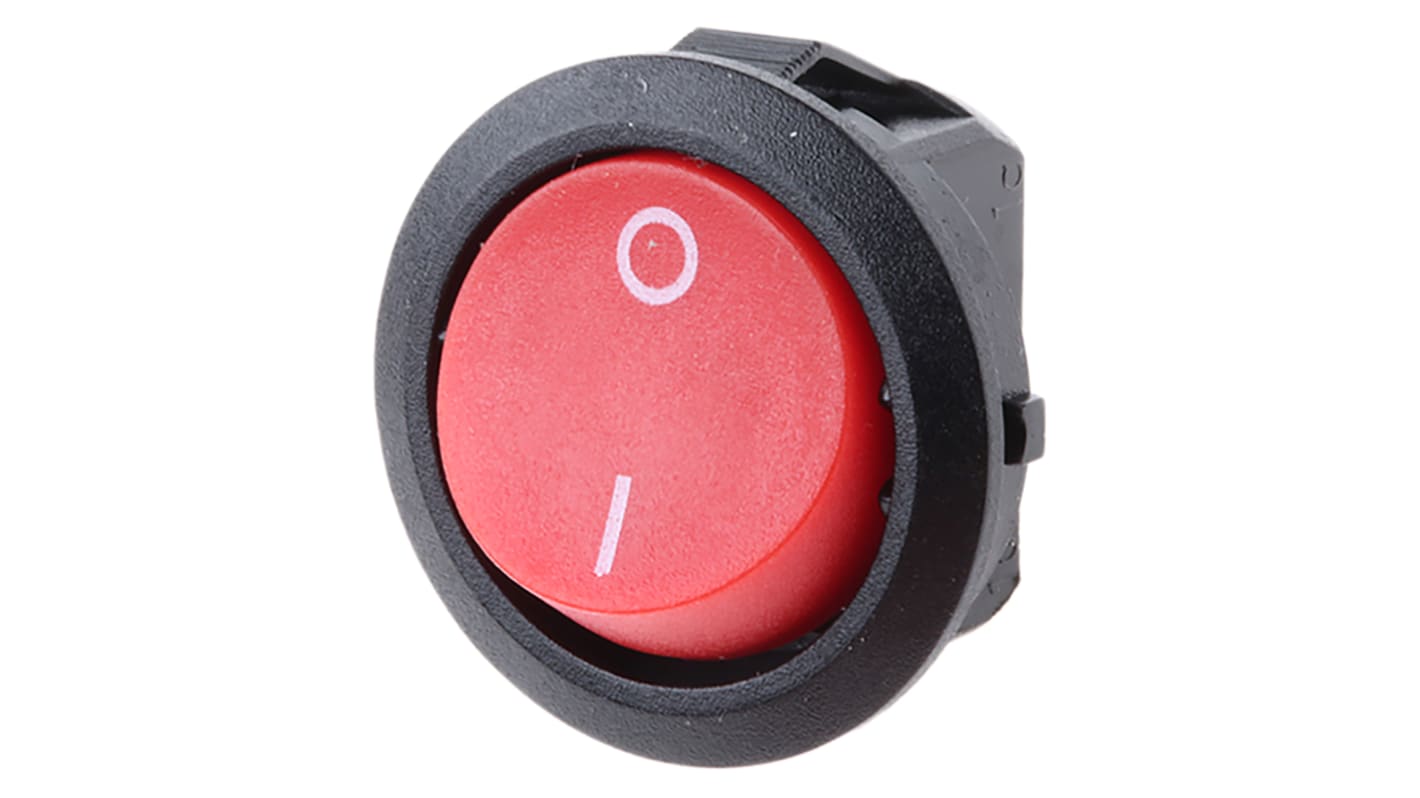

Marquardt SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 575-141
- Mfr. Part No.:
- 1881.1104
- Manufacturer:
- Marquardt
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
365 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR15.93
| Units | Per Unit |
| 1 - 24 | MYR15.93 |
| 25 - 49 | MYR15.45 |
| 50 - 99 | MYR14.99 |
| 100 + | MYR14.54 |
- RS Stock No.:
- 575-141
- Mfr. Part No.:
- 1881.1104
- Manufacturer:
- Marquardt
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- CN
Product Details
Marquardt 1881 Series Rocker Switches
Marquardt 1881 series of round single pole single throw rocker switches. The non illuminated 1881 rocker switches are suitable for use in Class II appliances and feature an abrasion-proof on-off legend. The round, 20mm diameter cut out, rocker switches have silver contacts with a SPST (on-off) switching format, a contact resistance <100mΩ and an insulation resistance of >100MΩ. Electrical connection is made via the 4.8mm Faston/Quick Connect style tab terminals.
High inrush current (capacitive) up to 70A
23mm diameter
Contact distance ≥3mm
Operating force 3N
UL 94 V-2 flammability rated (apart from stock number 575-131 which is UL 94 V-0 rated)
23mm diameter
Contact distance ≥3mm
Operating force 3N
UL 94 V-2 flammability rated (apart from stock number 575-131 which is UL 94 V-0 rated)
Note
Stock number 575-131 conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
Marquardt Rocker Switches
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-Off |
| Panel Cut Out Diameter | 20.3mm |
| Contact Current Rating | 15 A |
| Illuminated | No |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Legend Text | I, O |
| Actuator Shape | Round |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 20 (Dia.)mm |
| Maximum Operating Temperature | +55°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +55°C |
| Contact Resistance | 100mΩ |
| Legend Text Colour | White |
| Contact Material | Silver Plated Silver |
| Case Material | Polyamide |
| Minimum Operating Temperature | -20°C |
