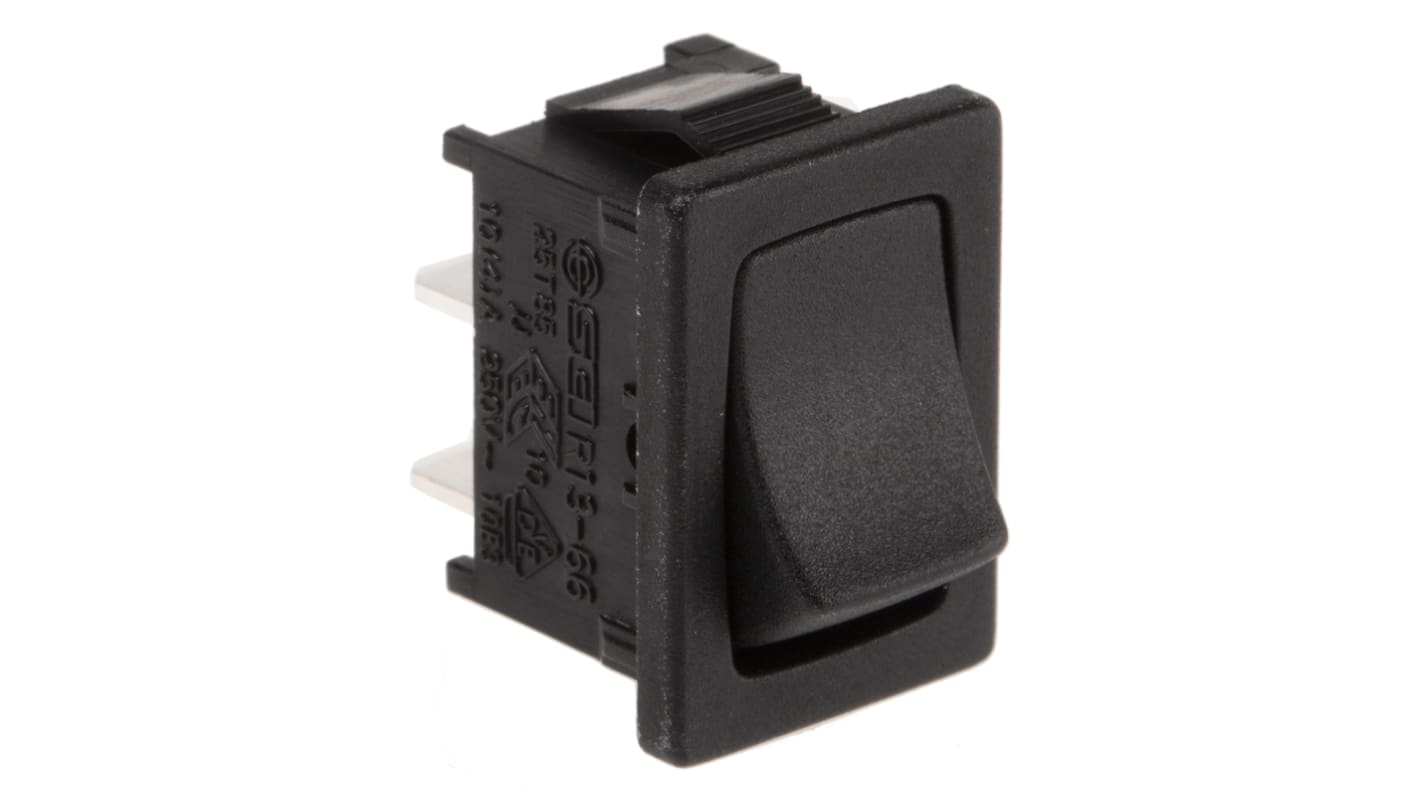

RS PRO SPST, Latching Rocker Switch Panel Mount

  • RS Stock No. 419-732
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Miniature Rocker Switches

Miniature SPST rocker switches, available in a wide variety of markings and colour options
Panel cut out 19.2 x 13mm
Fitted with 4.8mm blade style terminals (except stock no. 419-726 which has solder tag terminals)
Snap-in mounting, easy to install into panel
Nylon Housing to UL 94V-2 with silver plated brass terminals

Approvals

CSA (File no. UL45128), VDE (File no. 11037-4401), UR, ENEC, CQC

Specifications
Attribute Value
Contact Configuration SPST
Switch Operation On-None-Off
Panel Cut Out Width 19.8mm
Panel Cut Out Height 13mm
Contact Current Rating 16 A @ 125 V ac
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Actuator Shape Rectangular
Panel Cut Out Size 13 x 19.8mm
Case Material Nylon
Contact Resistance 50mΩ
AC Voltage Rating 125 V, 250 V
Operating Temperature Range -20 → +85°C
Minimum Operating Temperature -20°C
Contact Material Silver Plated Brass
Maximum Operating Temperature +85°C
30 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 6.576
units
Per unit
Per Pack*
5 - 245
MYR6.576
MYR32.88
250 - 495
MYR6.354
MYR31.77
500 - 1245
MYR6.24
MYR31.20
1250 - 2495
MYR6.132
MYR30.66
2500 +
MYR6.03
MYR30.15
*price indicative
