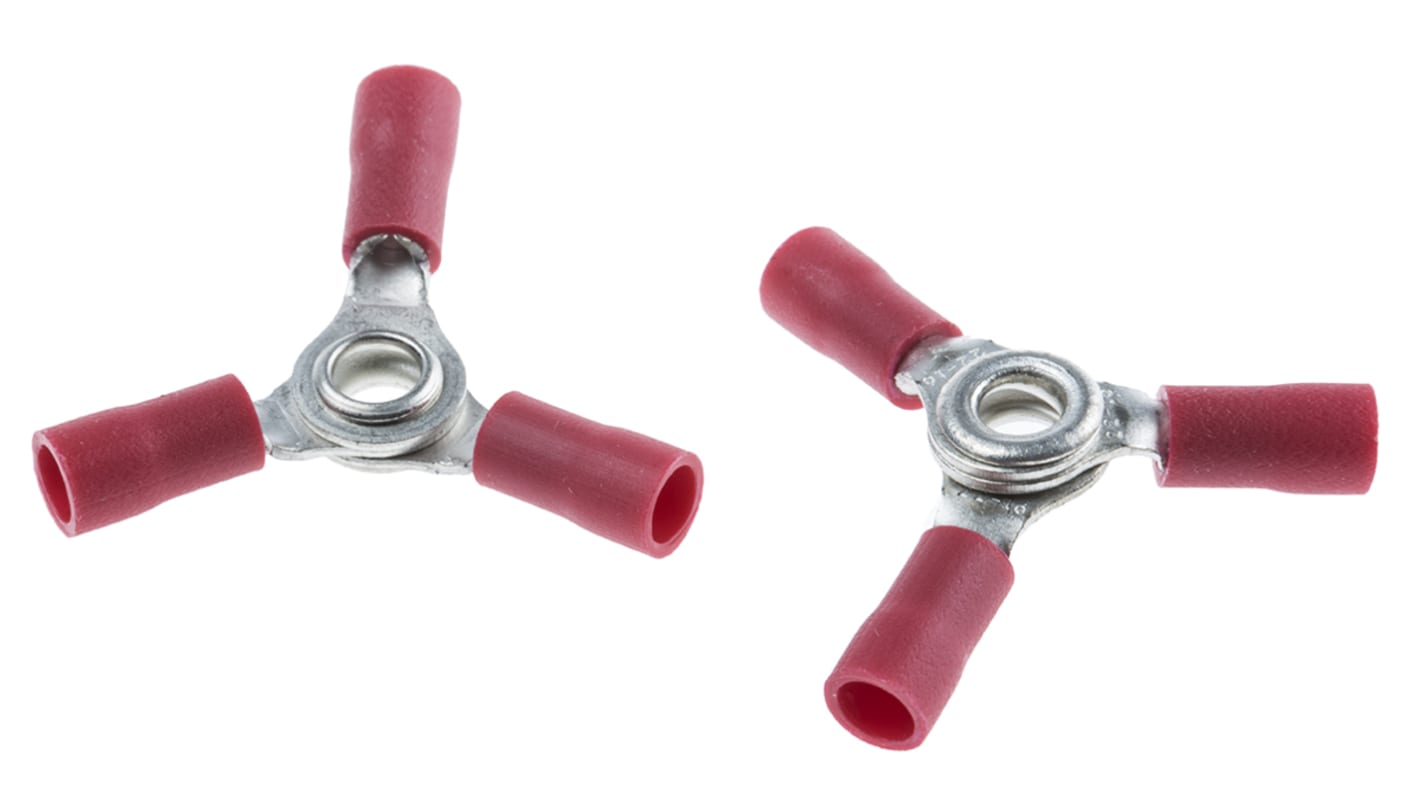

    RS PRO Insulated Ring Terminal, 4mm Stud Size, 0.5mm² to 1.5mm² Wire Size, Red

    View all Ring Terminals
    Bulk discount available

    Subtotal (1 bag of 50 units)**

    MYR74.72

    Add to Basket
    Select or type quantity
    44 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Bag(s)
    Per Bag
    Per Unit**
    1 - 4MYR74.72MYR1.494
    5 - 24MYR70.69MYR1.414
    25 - 49MYR65.52MYR1.31
    50 - 249MYR61.02MYR1.22
    250 +MYR50.21MYR1.004

    **price indicative

    RS Stock No.:
    510-4955
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Insulation

    Insulated

    Insulation Material

    Vinyl

    Outer Ring Diameter

    8.5mm

    Inner Ring Diameter

    4mm

    Minimum Wire Size mm²

    0.5mm²

    Maximum Wire Size mm²

    1.5mm²

    Minimum Wire Size AWG

    22AWG

    Maximum Wire Size AWG

    16AWG

    Stud Size

    4mm

    Colour

    Red

    Contact Plating

    Tin

    Contact Material

    Copper

    Thickness

    0.75mm

    Overall Length

    34mm

    Maximum Operating Temperature

    +75°C

    Minimum Operating Temperature

    -40°C
