Wickmann 5A Resettable Fuse, 30V dc
- RS Stock No.:
- 174-0381
- Mfr. Part No.:
- 30R500UF
- Manufacturer:
- Wickmann
80 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Box of 200)
MYR4.636
Units | Per Unit | Per Box* |
|---|---|---|
| 200 - 200 | MYR4.636 | MYR927.20 |
| 400 - 600 | MYR4.534 | MYR906.80 |
| 800 + | MYR4.437 | MYR887.40 |
*price indicative
- RS Stock No.:
- 174-0381
- Mfr. Part No.:
- 30R500UF
- Manufacturer:
- Wickmann
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

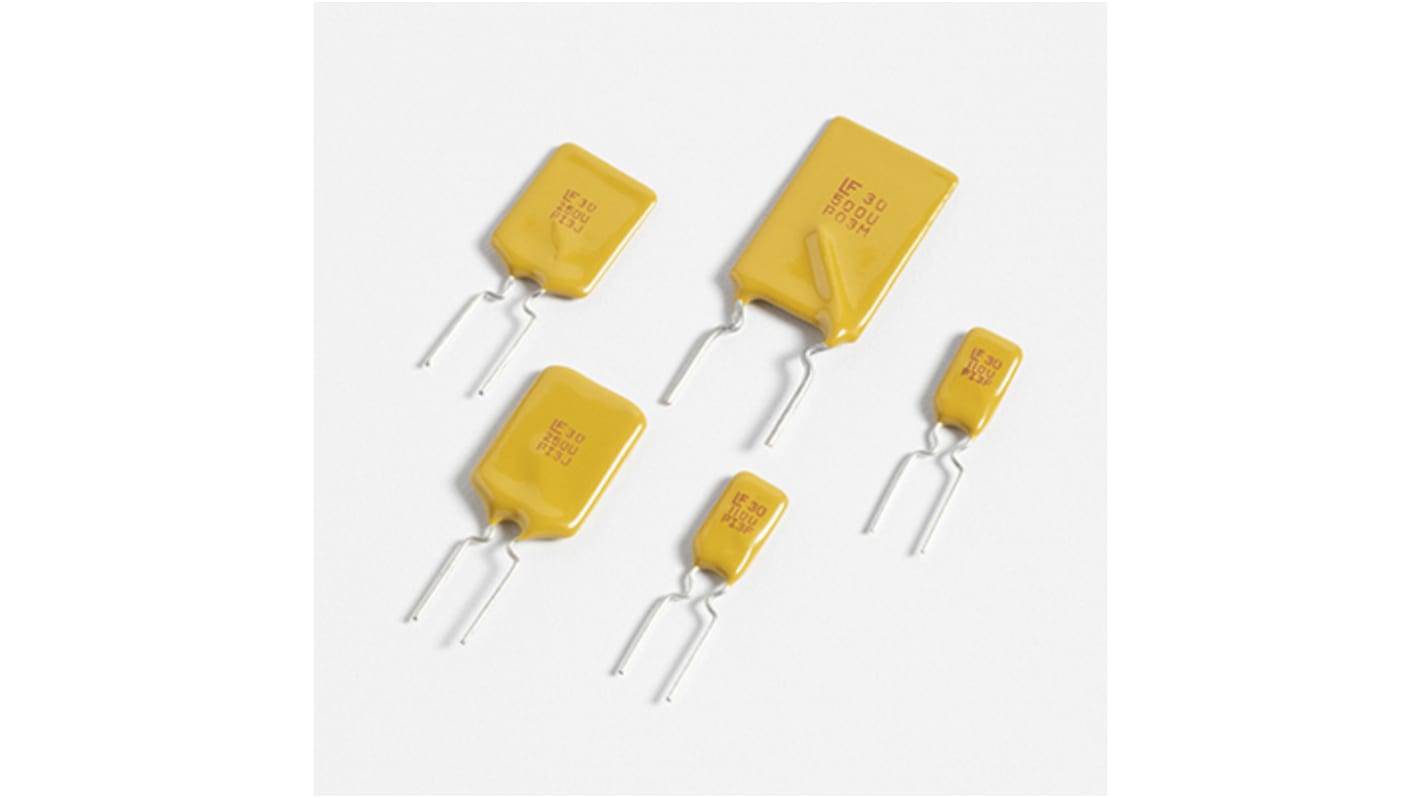

The 30R series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred
Lead-free
Fast time-to-trip
Cured, flame retardant expoxy polymer insulating material
Fast time-to-trip
Cured, flame retardant expoxy polymer insulating material
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Trip Current | 10A |
| Voltage Rating | 30V dc |
| Time to Trip | 14.5s |
| Hold Current | 5A |
| Maximum Current | 40 A |
| Length | 14mm |
| Height | 25.6mm |
| Width | 3mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
| Power Dissipation | 3W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
| Series | 30R |
| Dimensions | 14 x 3 x 25.6mm |
| Body Material | Polymer |
