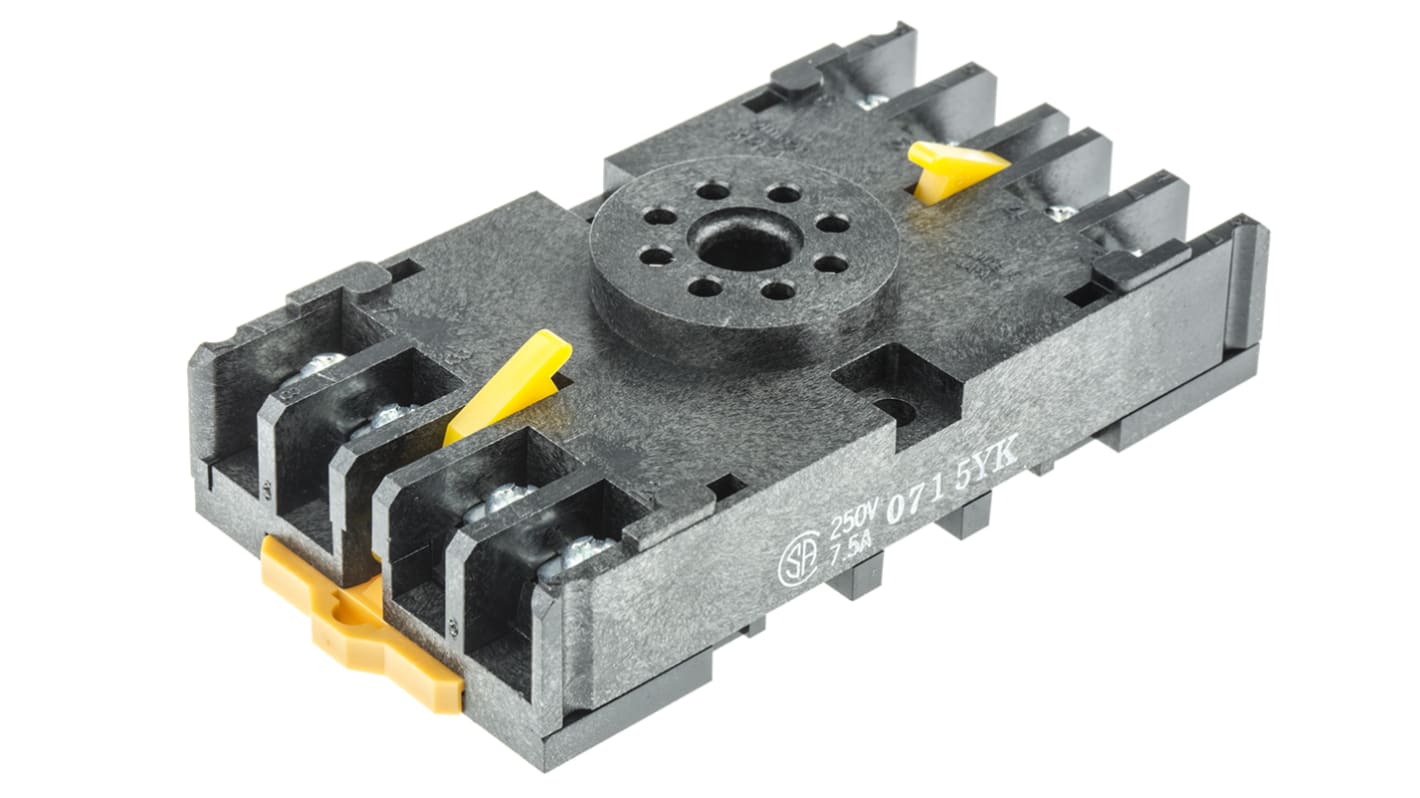

Omron 8 Pin 230V ac DIN Rail Relay Socket, for use with G4Q Series
- RS Stock No.:
- 552-823
- Mfr. Part No.:
- 8PFA1
- Manufacturer:
- Omron
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
58 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR78.65
| Units | Per Unit |
| 1 - 2 | MYR78.65 |
| 3 - 4 | MYR77.01 |
| 5 + | MYR74.69 |
- RS Stock No.:
- 552-823
- Mfr. Part No.:
- 8PFA1
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
8 Pin DPDT Ratchet Relay
2 pole plug-in relay, each contact in the contact mechanism performs alternate make-break operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.
Contact Rating 5A@ 220 V ac/ 24 V dc
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C
Specifications
Attribute | Value |
|---|---|
| Voltage | 230V ac |
| For Use With | G4Q Series |
| Termination Type | Screw |
| Mounting Type | DIN Rail |
| Current Rating | 5A |
| Number of Contacts | 8 |
