- RS Stock No.:
- 909-2837
- Mfr. Part No.:
- GC1625 (80-90AT)
- Manufacturer:
- Assemtech
Temporarily out of stock - back order for despatch 12/09/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Bag of 10)
MYR69.336
Units | Per Unit | Per Bag* |
10 - 90 | MYR69.336 | MYR693.36 |
100 - 240 | MYR67.882 | MYR678.82 |
250 - 490 | MYR65.845 | MYR658.45 |
500 - 1990 | MYR64.224 | MYR642.24 |
2000 + | MYR62.819 | MYR628.19 |
*price indicative |
- RS Stock No.:
- 909-2837
- Mfr. Part No.:
- GC1625 (80-90AT)
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BE
Product Details

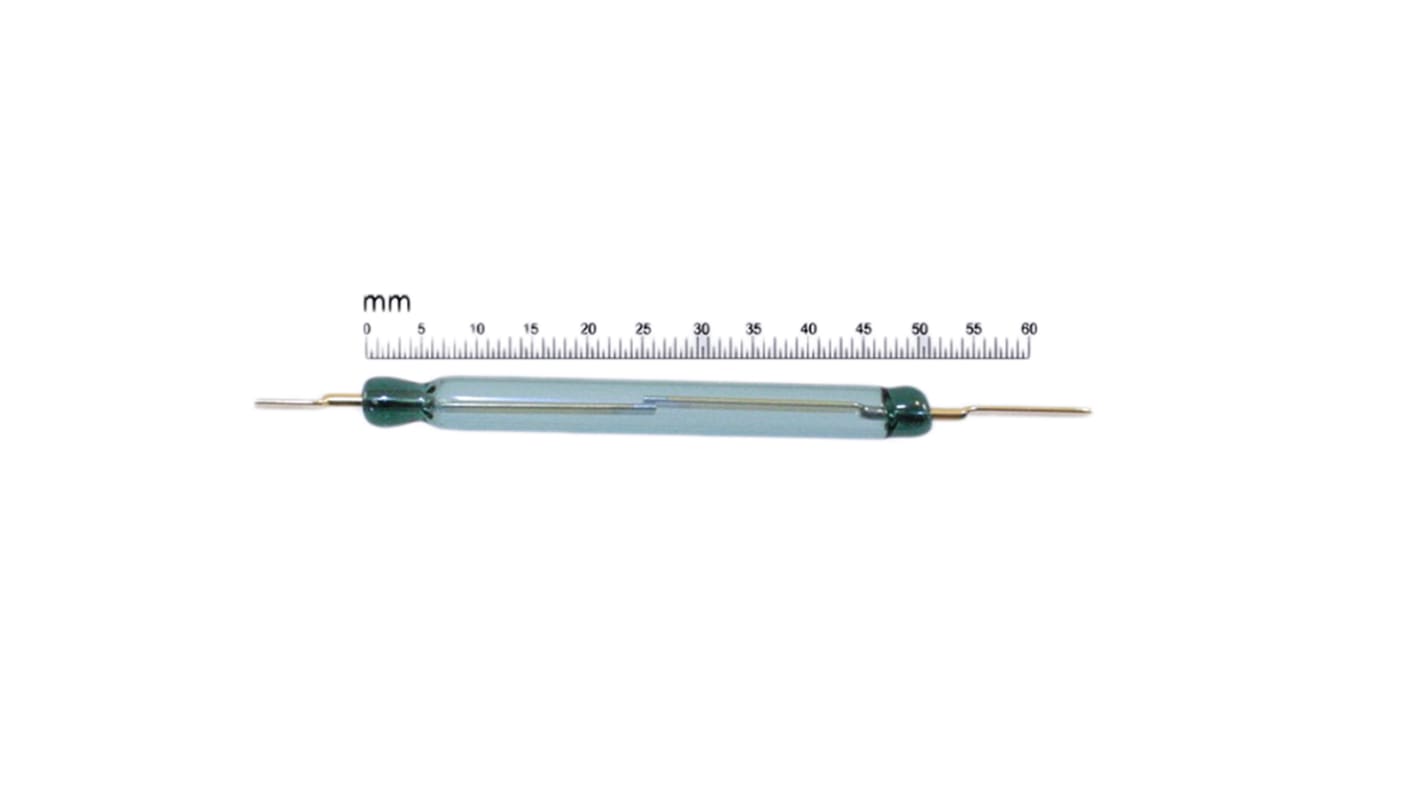

Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | Change Over |
Maximum Switching Current | 1A |
Contact Resistance | 100mΩ |
Contact Material | Rhodium |
Maximum Release Time | 0.1ms |
Operating Time Including Bounce | 0.5ms |
AT Value Range | 40-60AT |
Width | 5.6 (Dia.)mm |
Length | 52mm |
Dimensions | 5.6 (Dia.) x 52mm |
