Littelfuse Reed Switch
- RS Stock No.:
- 905-8926
- Mfr. Part No.:
- MDSR-7-15-20
- Manufacturer:
- Littelfuse
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
535 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 5)
MYR7.012
| Units | Per Unit | Per Bag* |
| 5 - 4995 | MYR7.012 | MYR35.06 |
| 5000 + | MYR6.82 | MYR34.10 |
| *price indicative | ||
- RS Stock No.:
- 905-8926
- Mfr. Part No.:
- MDSR-7-15-20
- Manufacturer:
- Littelfuse
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details

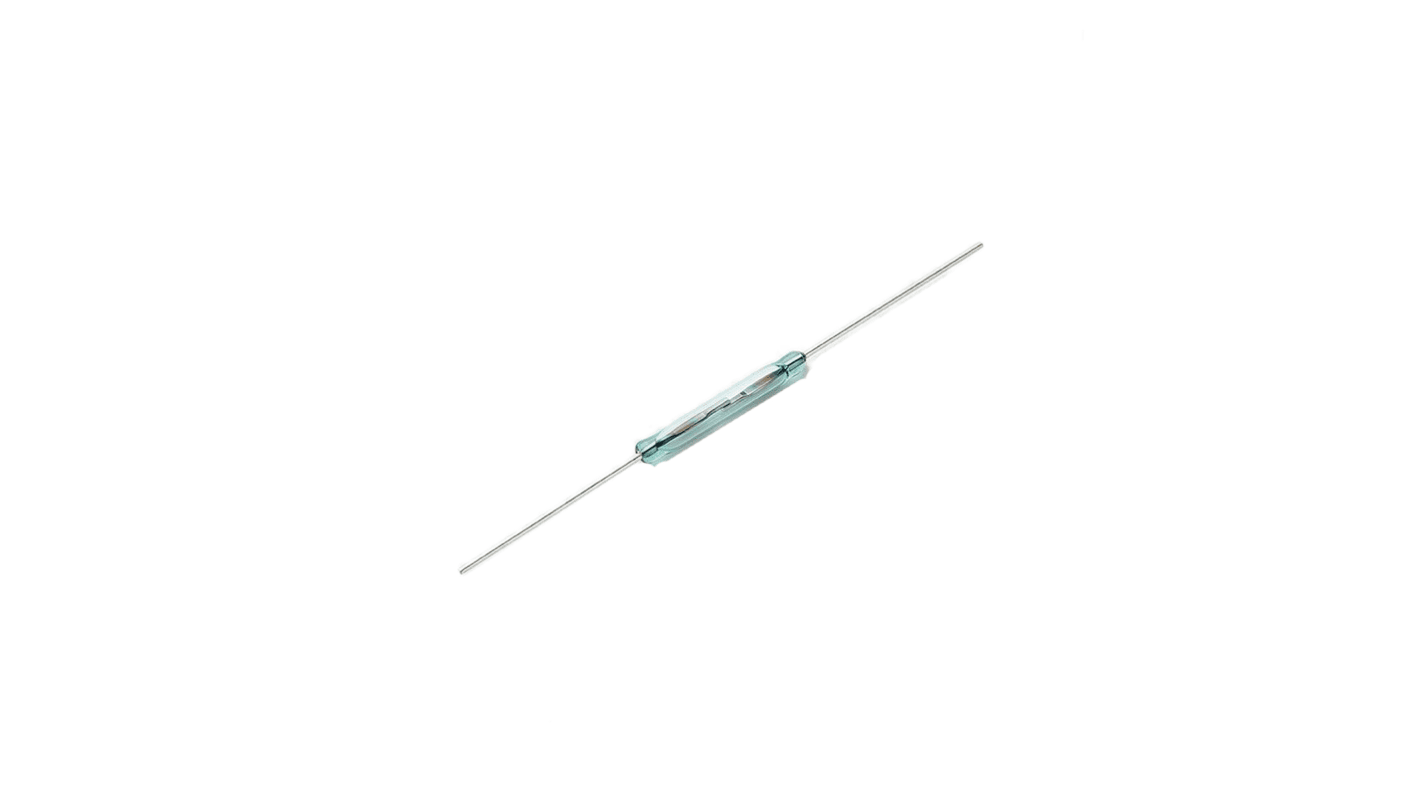

MDSR-7 Subminiature Axial Lead Reed Switch, Low Power
These subminiature, axial lead reed switches can switch 200 V dc at 10 W. These switches have a low electrical footprint and require zero operating power to close the contacts. They are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. Even operating in conditions long after optical and other technology reed switches would have failed. The glass envelope measures 12.7 x 1.8 mm and house Form A (SPST normally open) contacts.
Item 905-8929 has an AT 10-15 sensitivity rating.
Item 905-8922 has an AT 10-25 sensitivity rating.
Item 905-8926 has an AT 15-20 sensitivity rating.
Item 905-8929 has an AT 10-15 sensitivity rating.
Item 905-8922 has an AT 10-25 sensitivity rating.
Item 905-8926 has an AT 15-20 sensitivity rating.
Potential Applications
Reed Relays (particularly suited to ATE type applications)
Security Systems
Limit Switching
Office Equipment
Security Systems
Limit Switching
Office Equipment
Features
Sub-miniature normally open switch
Capable of switching 200V or 0.5A at up to 10W
Available sensitivity range 10-25 AT
Operating temperature range: -40°C to +125°C
Capable of switching 200V or 0.5A at up to 10W
Available sensitivity range 10-25 AT
Operating temperature range: -40°C to +125°C
Standards
UL, ATEX Class I, Zone 2
Littelfuse
Specifications
Attribute | Value |
|---|---|
| Contact Resistance | 100mΩ |
| AT Value Range | 15-20AT |
| Width | 1.8mm |
| Length | 12.7mm |
| Dimensions | 1.8 (Dia.) x 12.7mm |
