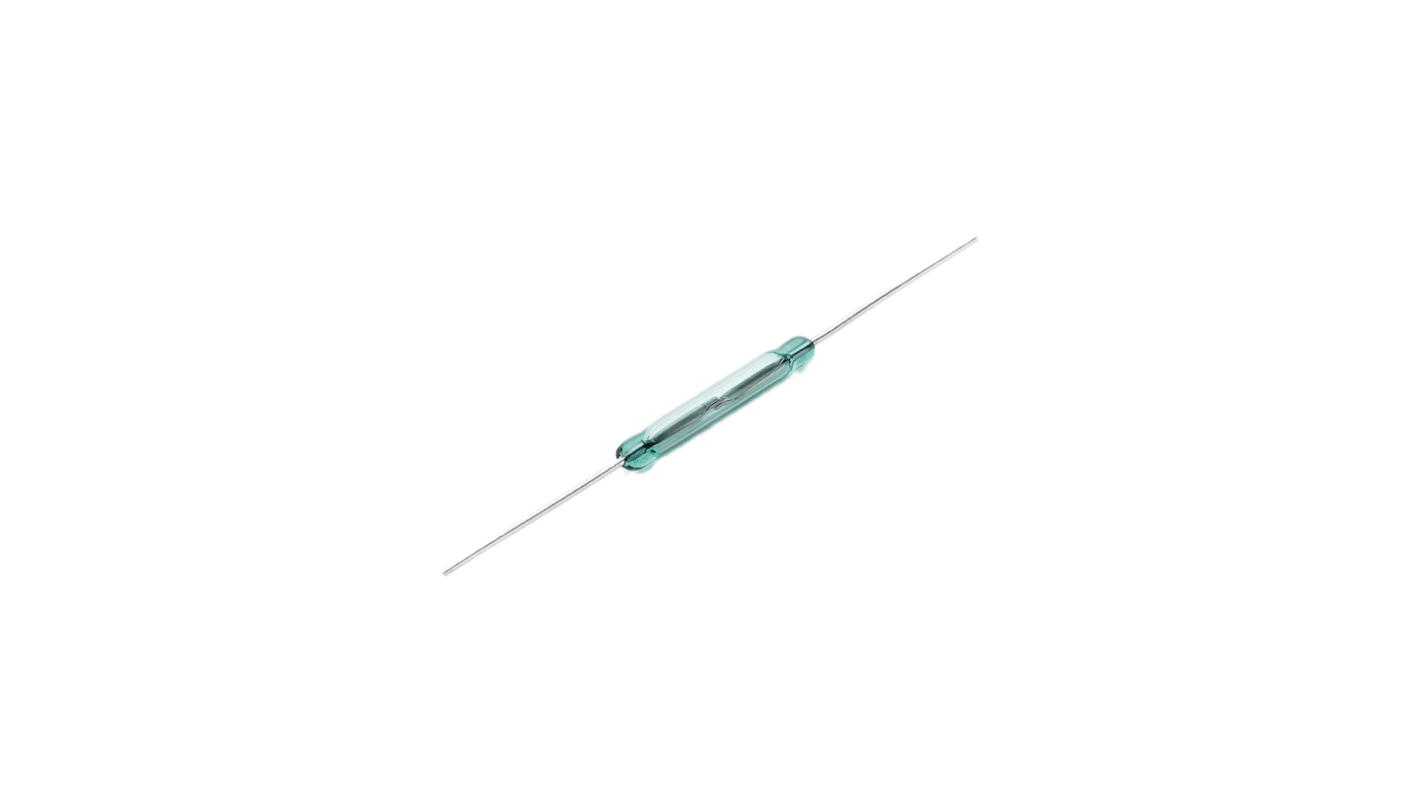

High Voltage Reed Switch,

  • RS Stock No. 905-8884
  • Mfr. Part No. HA15-2-17-23
  • Manufacturer Hamlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

HA15-2 High-Voltage Reed Switches, Low Power

These subminiature, axial lead reed switches an of switch 265 V ac at 10 VA. They are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. They are not effected by and do not affect their external environment. They also do not require any operating power for contact closure.

The glass envelope on these reed switches measures 15.24 x 2.28 mm and it houses normally open contacts. It has a high insulation resistance and low contact resistance and they are also ATEX approved between 17-33 AT range.

Potential Applications

Reed relays
Security
Limit switching
Office equipment
Light inductive loads
European mains voltage

Features

Subminiature, normally open switch
Longer leads are flexible for easy forming
Capable of switching 100 to 265 V ac or 0.3A up to 20 VA (10 W for V dc)
Operating temperature range: -20°C to +125°C

Standards

UL, ATEX Class I, Zone 2

Littelfuse

Specifications
Attribute Value
Contact Resistance 100mΩ
AT Value Range 17-23AT
Width 2.28mm
Length 15.24mm
Dimensions 2.28 (Dia.) x 15.24mm
210 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 5)
MYR 7.46
units
Per unit
Per Bag*
5 - 495
MYR7.46
MYR37.30
500 - 1245
MYR6.996
MYR34.98
1250 - 2495
MYR6.528
MYR32.64
2500 - 4995
MYR6.022
MYR30.11
5000 +
MYR5.662
MYR28.31
*price indicative
