Littelfuse Miniature Reed Switch
- RS Stock No.:
- 905-8837
- Mfr. Part No.:
- HE3621A0510
- Manufacturer:
- Littelfuse
4970 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 5)
MYR11.458
| Units | Per Unit | Per Bag* |
| 5 + | MYR11.458 | MYR57.29 |
| *price indicative | ||
- RS Stock No.:
- 905-8837
- Mfr. Part No.:
- HE3621A0510
- Manufacturer:
- Littelfuse
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

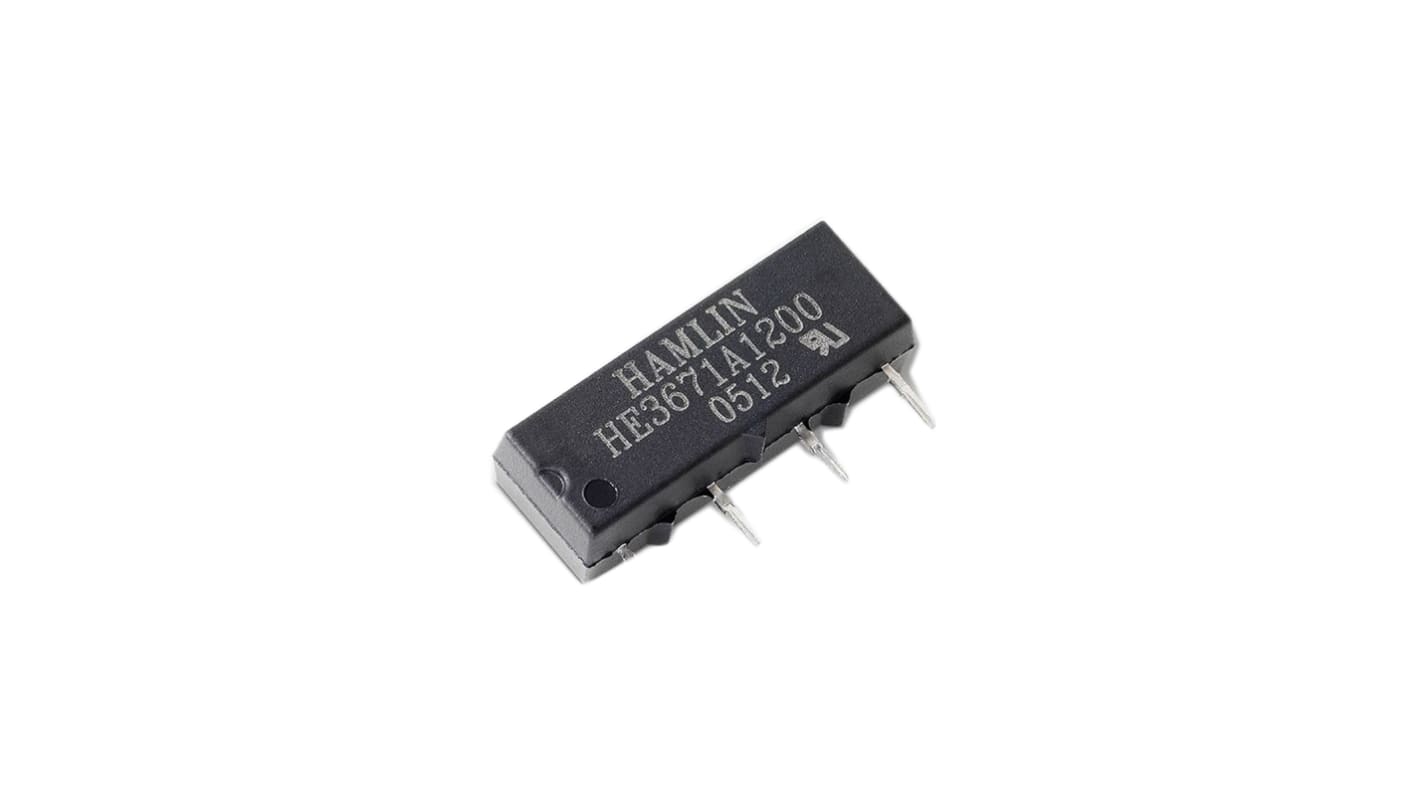

HE3600 Miniature Single Inline Reed Relay, SIL
These miniature, inline reed relays can switch 200 V dc at 10 W. They are manufactured in a SIL package and include Form A (SPST normally open) contacts. Three voltages and diode suppressed coil options are available. They are hermetically sealed and are not effected by and do not affect their external environment.
Item 905-8834 has a standard 5 V coil.
Item 905-8837 has a 5 V diode suppressed coil.
Item 905-8831 has a 12 V diode suppressed coil.
Item 905-8840 has a 24 V diode suppressed coil.
Item 905-8834 has a standard 5 V coil.
Item 905-8837 has a 5 V diode suppressed coil.
Item 905-8831 has a 12 V diode suppressed coil.
Item 905-8840 has a 24 V diode suppressed coil.
Potential Applications
Security systems
Telecom equipment
Process control systems
Automatic test equipment
Instrumentation
Telecom equipment
Process control systems
Automatic test equipment
Instrumentation
Features
Miniature single inline package
Optional coil suppression diode to protect coil drive circuits
Normally open contacts
Diode suppression Option
Operating temperature range: -40°C to +85°C
Optional coil suppression diode to protect coil drive circuits
Normally open contacts
Diode suppression Option
Operating temperature range: -40°C to +85°C
Littelfuse
Specifications
Attribute | Value |
|---|---|
| Contact Resistance | 150mΩ |
| Width | 5.65mm |
| Length | 19.7mm |
| Depth | 7.87mm |
| Dimensions | 19.7 x 5.65 x 7.87mm |
