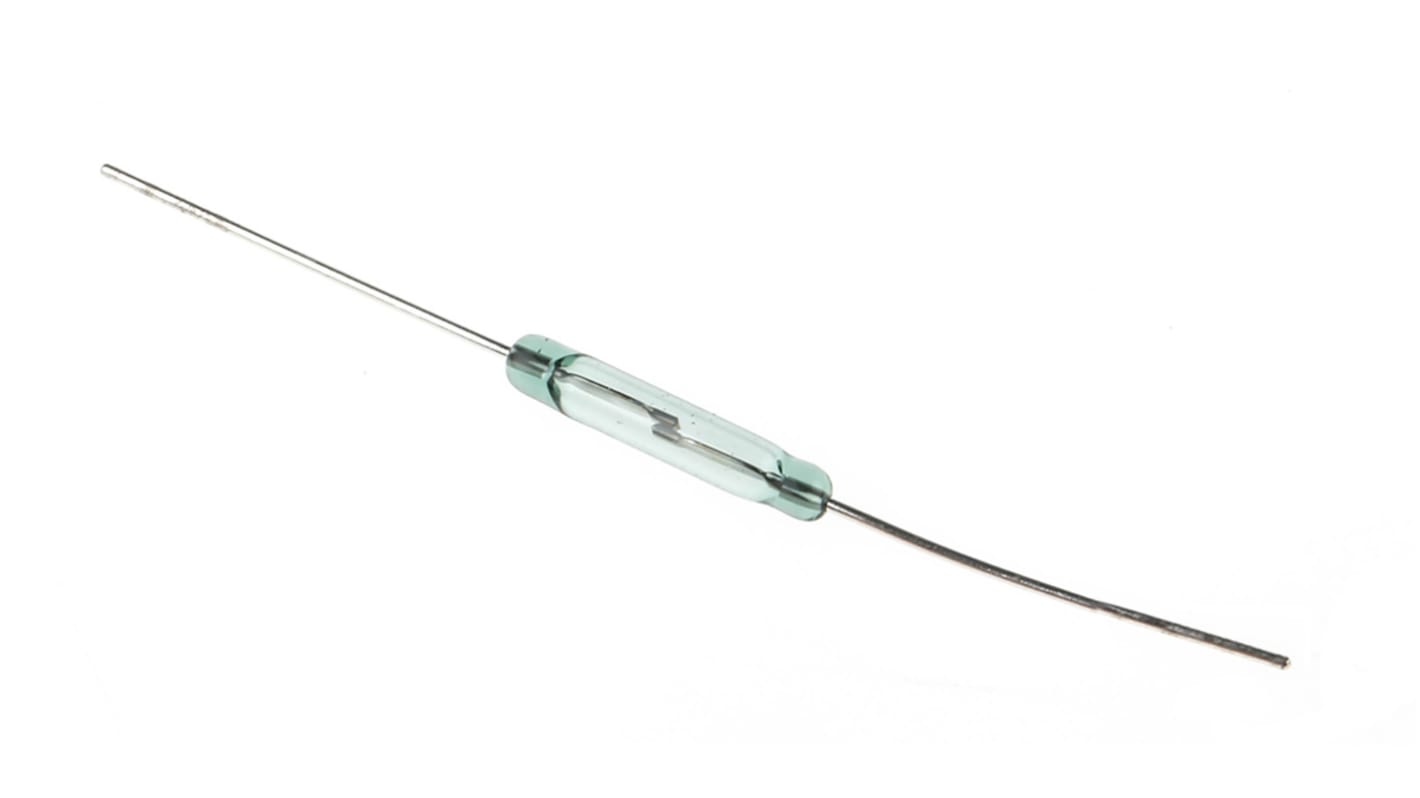

SP-NO Reed Switch, 100mA 24V ac/dc

  • RS Stock No. 229-3664
  • Mfr. Part No. TRA211G/15-20
  • Manufacturer Cynergy3
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Form A & C Reed Switches

Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 105 - 106 Switching Cycles
Mechanical Life 109 Operations
For suitable magnets, see stk. no 118-7108 typically

//media.rs-online.com/t_line/L118703-11.gif

Approvals

7777

Specifications
Attribute Value
Contact Configuration SP-NO
Maximum Switching Current 100mA
Maximum Switching Power 1VA
Maximum Switching Voltage 24V ac/dc
Contact Resistance 150mΩ
Contact Material Rhodium
Maximum Release Time 0.05ms
Operating Time Including Bounce 0.6ms
947 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4.18
units
Per unit
1 - 19
MYR4.18
20 - 99
MYR4.07
100 - 249
MYR4.02
250 - 499
MYR3.80
500 +
MYR3.62
