Units	Per Unit	Per Bag**
5 - 10	MYR8.56	MYR42.80
15 - 20	MYR8.388	MYR41.94
25 +	MYR8.218	MYR41.09

Select all	Attribute	Value
	Brand	Littelfuse
	Contact Configuration	SPST-NO
	Coil Voltage	5V dc
	Mounting Type	PCB Mount
	Maximum Switching Current DC	0.5 A
	Maximum Switching Voltage DC	200V dc
	Operating Temperature Range	-40 → +85°C
	Maximum Switching Power DC	10 W
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Operating Time Including Bounce	1ms
	Standards Met	RoHS Compliant
	Special Features	Miniature single in-line package, External magnetic shield option, Diode suppression option
	Contact Resistance	150 mΩ
	Terminal Type	Through Hole

	Select all
	Brand Littelfuse
	Contact Configuration SPST-NO
	Coil Voltage 5V dc
	Mounting Type PCB Mount
	Maximum Switching Current DC 0.5 A
	Maximum Switching Voltage DC 200V dc
	Operating Temperature Range -40 → +85°C
	Maximum Switching Power DC 10 W
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Operating Time Including Bounce 1ms
	Standards Met RoHS Compliant
	Special Features Miniature single in-line package, External magnetic shield option, Diode suppression option
	Contact Resistance 150 mΩ
	Terminal Type Through Hole

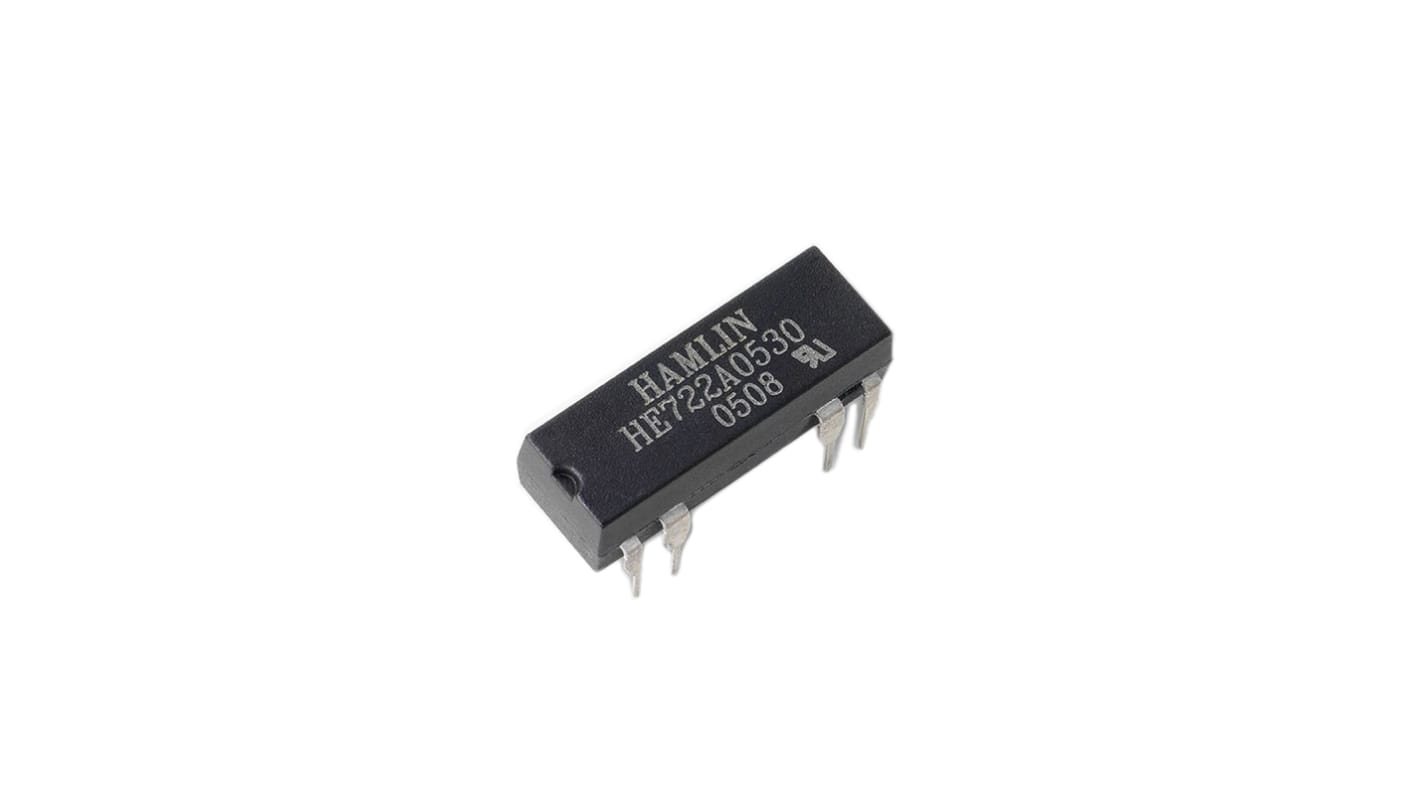

Littelfuse PCB Mount Reed Relay, 5V dc Coil, SPST-NO, 200V dc Max, 0.5 A Max

FREE delivery for orders over MYR500.00

HE700 Miniature Dual Inline Reed Switch, SIL

Potential Applications

Features
