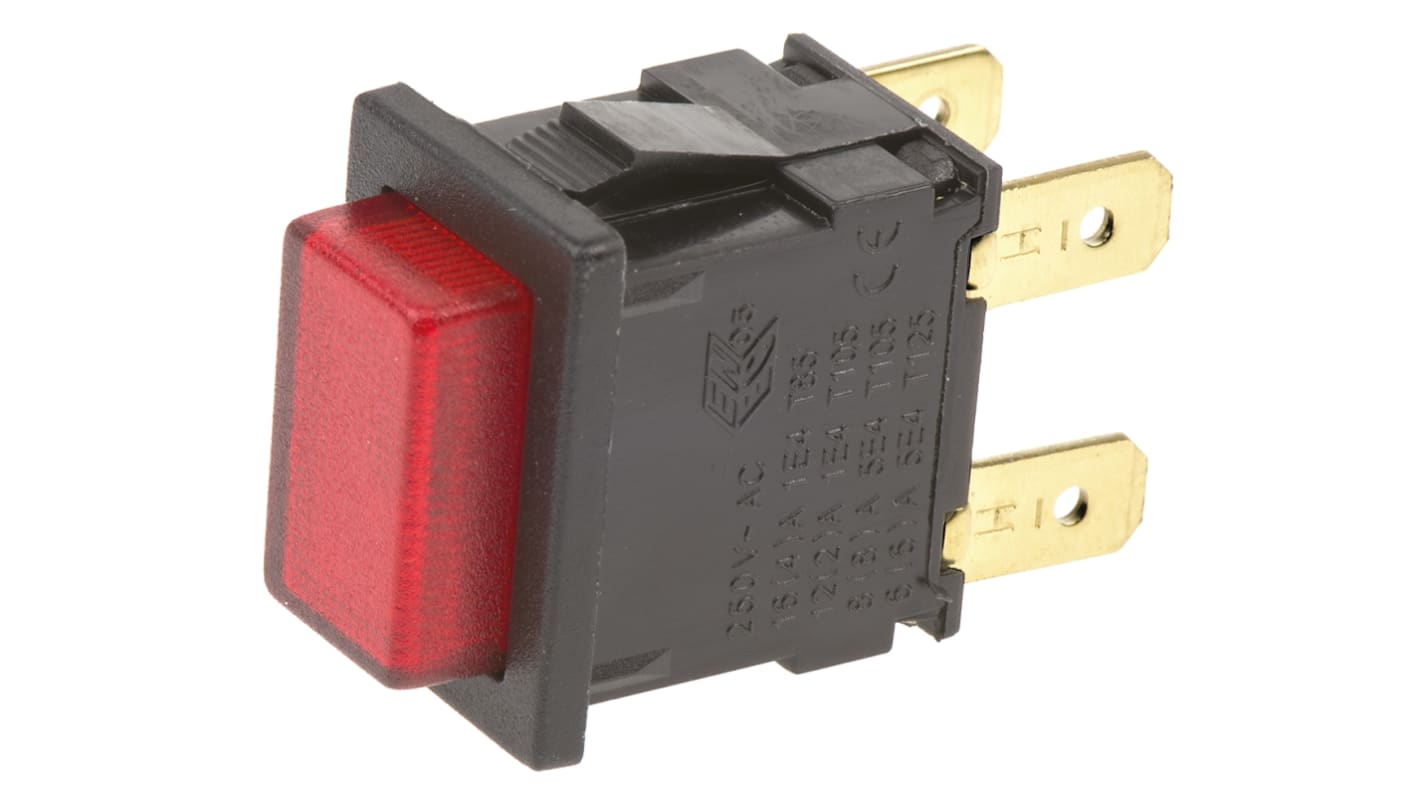

Arcolectric Latching Push Button Switch, Panel Mount, DPDT, 250V ac
- RS Stock No.:
- 250-7929
- Mfr. Part No.:
- H8353ABNAA
- Manufacturer:
- Arcolectric
View all Push Button Switches
Stock check temporarily unavailable - call for stock availability
Price Each
MYR22.01
| units | Per Unit |
| 1 - 9 | MYR22.01 |
| 10 - 49 | MYR21.04 |
| 50 - 99 | MYR19.53 |
| 100 - 249 | MYR17.88 |
| 250 + | MYR16.09 |
- RS Stock No.:
- 250-7929
- Mfr. Part No.:
- H8353ABNAA
- Manufacturer:
- Arcolectric
- COO (Country of Origin):
- TN
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Panel Mount Mains Pushbutton Switches
Arcolectric presents the 8300 series of Mains Pushbutton Switches. These high current miniature switches are designed for easy snap-in panel mounting and are available in both illuminated and non-illuminated versions and with latching and momentary options.
Features and Benefits:
• Double pole switches for snap fitting into a 19.2´13 panel cutout
• 3mm contact gap
• Operating Temperature 105°C
• Contact Resistance <20MΩ
• Contact Material Silver Alloy
• Dielectric Strength >1000V
• Insulation Resistance >20MΩ
• Electrical Life (operations) 10000
• Actuator Length (mm) 4.5
• Actuator Width (mm) 15
• Height (mm) 21
• Max. Panel Thickness (mm) 2 - 3
• Panel Cut-out (mm) 19.2x13
• Depth Behind Panel (mm) 25.5
• Double pole switches for snap fitting into a 19.2´13 panel cutout
• 3mm contact gap
• Operating Temperature 105°C
• Contact Resistance <20MΩ
• Contact Material Silver Alloy
• Dielectric Strength >1000V
• Insulation Resistance >20MΩ
• Electrical Life (operations) 10000
• Actuator Length (mm) 4.5
• Actuator Width (mm) 15
• Height (mm) 21
• Max. Panel Thickness (mm) 2 - 3
• Panel Cut-out (mm) 19.2x13
• Depth Behind Panel (mm) 25.5
The 8300 Series includes:
• Stock number 250-7907 is a black, non-illuminated pushbutton switch (Latching)
• Stock number 250-7913 is a black, non-illuminated pushbutton switch (Momentary)
• Stock number 250-7929 is a red, illuminated pushbutton switch (Latching)
• Stock number 250-7935 is a green, illuminated pushbutton switch (Latching)
• Stock number 533-3030 is a red, non-illuminated pushbutton switch (Latching)
• Stock number 533-3046 is a red, non-illuminated pushbutton switch (Momentary)
• Stock number 533-3052 is a green, non-illuminated pushbutton switch (Momentary)
• Stock number 250-7913 is a black, non-illuminated pushbutton switch (Momentary)
• Stock number 250-7929 is a red, illuminated pushbutton switch (Latching)
• Stock number 250-7935 is a green, illuminated pushbutton switch (Latching)
• Stock number 533-3030 is a red, non-illuminated pushbutton switch (Latching)
• Stock number 533-3046 is a red, non-illuminated pushbutton switch (Momentary)
• Stock number 533-3052 is a green, non-illuminated pushbutton switch (Momentary)
Approvals
ENEC, UL, CSA
Specifications
| Attribute | Value |
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Voltage Rating | 250V ac |
| Contact Current Rating | 16 A @ 250 V ac |
| Terminal Type | Tab |
| Manufacturer Part No. | H8353ABNAA |
| Case Colour | Black |
