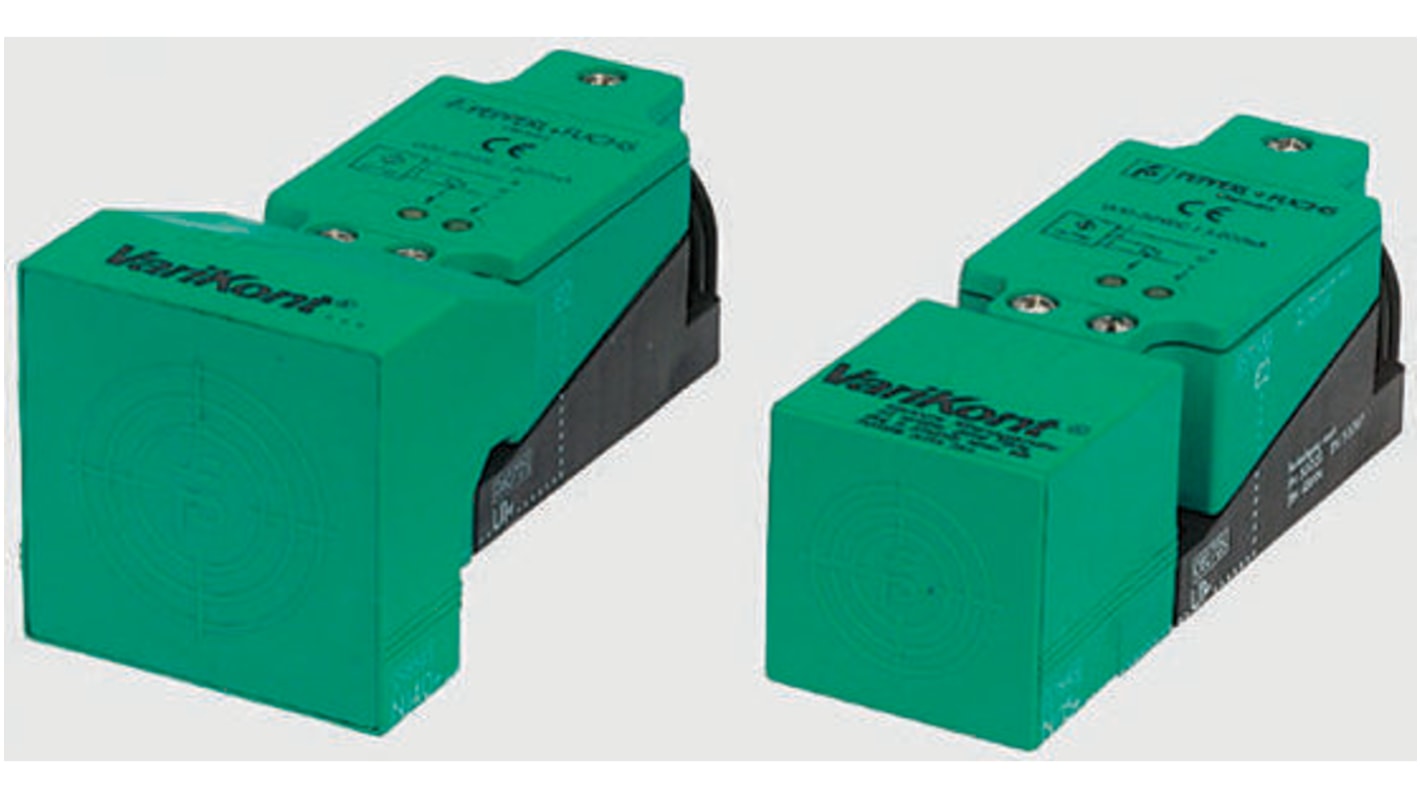

Pepperl + Fuchs Block-Style Proximity Sensor, 40 mm Detection, NPN Output, 10 → 60 V dc, IP68
- RS Stock No.:
- 257-2355
- Mfr. Part No.:
- NJ40+U1+E
- Manufacturer:
- Pepperl + Fuchs
Discontinued product
- RS Stock No.:
- 257-2355
- Mfr. Part No.:
- NJ40+U1+E
- Manufacturer:
- Pepperl + Fuchs
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Body Style | Block | |
| Output Type | NPN | |
| Detection Range | 40 mm | |
| Terminal Type | Screw | |
| IP Rating | IP68 | |
| Supply Voltage | 10 → 60 V dc | |
| Length | 55mm | |
| Width | 50mm | |
| Depth | 128mm | |
| Maximum DC Voltage | 60V | |
| Mounting Type | Non Flush | |
| Switching Current | 200 mA | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 100Hz | |
| Short Circuit Overload Protection | Yes | |
| Minimum Operating Temperature | -25°C | |
| Reverse Polarity Protection | Yes | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Body Style Block | ||
Output Type NPN | ||
Detection Range 40 mm | ||
Terminal Type Screw | ||
IP Rating IP68 | ||
Supply Voltage 10 → 60 V dc | ||
Length 55mm | ||
Width 50mm | ||
Depth 128mm | ||
Maximum DC Voltage 60V | ||
Mounting Type Non Flush | ||
Switching Current 200 mA | ||
Housing Material PBT | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 100Hz | ||
Short Circuit Overload Protection Yes | ||
Minimum Operating Temperature -25°C | ||
Reverse Polarity Protection Yes | ||
