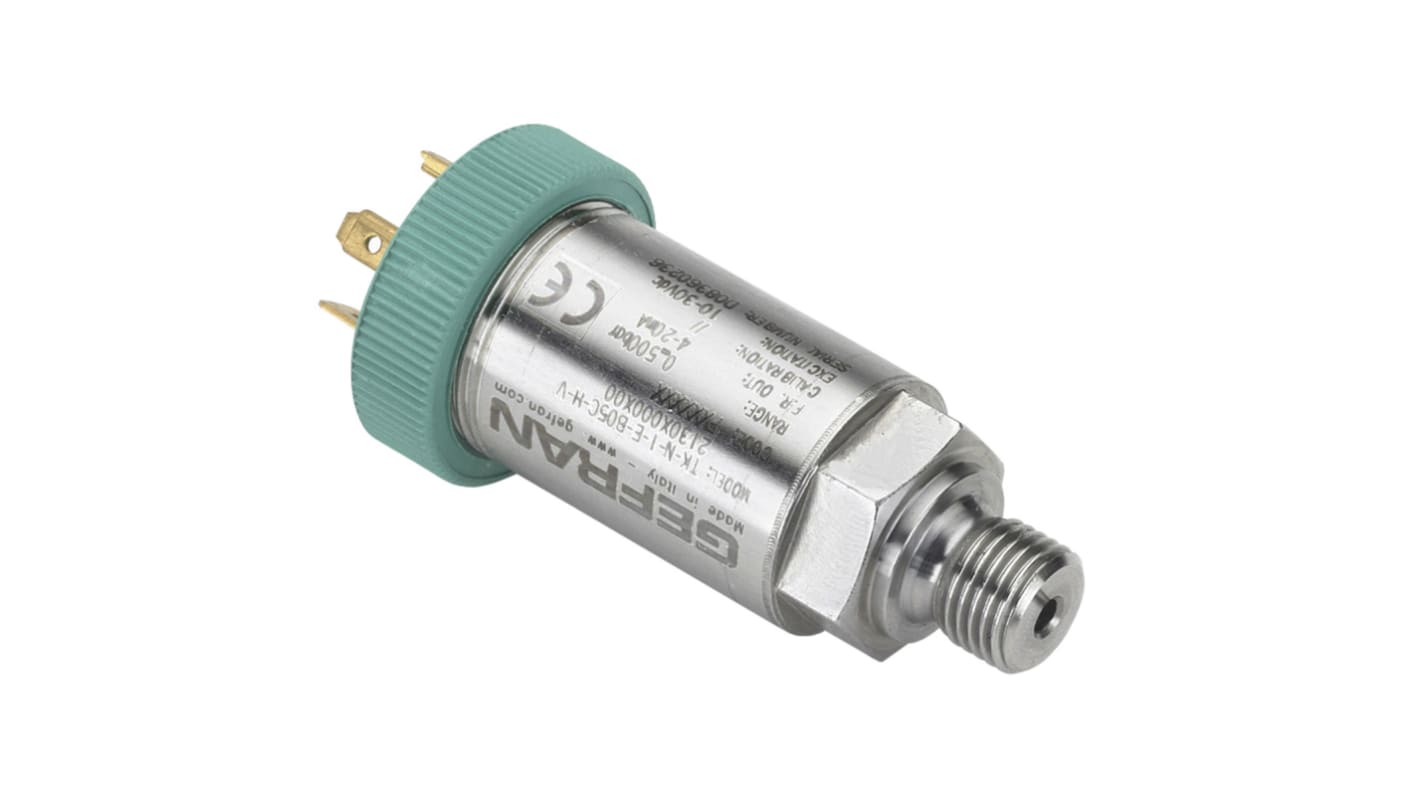

Gefran for Fluid Pressure Sensor, 16bar Max Pressure Reading , G1/4, IP65, IP66, IP67

  • RS Stock No. 798-4110
  • Mfr. Part No. TK-E-1-E-B16U-H-V 2130X000X00
  • Manufacturer Gefran
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): IT
Product Details

Gefran TK Series Pressure Sensors

TK Series pressure sensors specially designed for applications requiring long-distance signal (4 mA) transmission or in smart control systems.

TK series transmitters are based on the extensimetric thick film measuring principle
The primary measuring element is directly deposited on the membrane using a thick film serigraphy process
All parts that are in contact with the fluid are in stainless steel
The 4-pole DIN 43650 electrical connector provides IP65 protection
Available in 0 → 2.5 to 0 → 400 bar

Specifications
Attribute Value
Minimum Pressure Reading 0bar
Maximum Pressure Reading 16bar
Accuracy ±0.3 %
Output Type Current, Voltage
Media Measured Fluid
Process Connection G1/4
Electrical Connection DIN 43650 Type A
Analogue Output 4 20 mA
Response Time 1 ms
Housing Material Nylon, Stainless Steel
IP Rating IP65, IP66, IP67
Maximum Operating Temperature +105°C
Minimum Operating Temperature -40°C
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,135.44
units
Per unit
1 - 4
MYR1,135.44
5 - 9
MYR1,078.66
10 - 24
MYR1,021.89
25 - 49
MYR965.12
50 +
MYR908.35
