Units	Per Unit
1 - 4	MYR1,274.56
5 +	MYR1,048.96

Select all	Attribute	Value
	Brand	RS PRO
	Pressure Reading Type	Relative
	Minimum Pressure Reading	-1bar
	Maximum Pressure Reading	24bar
	Accuracy	±0.25 %
	Output Type	Current
	Media Measured	Air, Gas, Hydraulic Fluid, Liquid, Water
	Process Connection	G1/4
	Analogue Output	4 → 20 mA
	Electrical Connection	DIN 43650 Type A
	Maximum Current	20 mA
	Supply Voltage	9 → 32 V dc
	Housing Material	Stainless Steel
	Mounting Type	Threaded
	IP Rating	IP65
	Maximum Operating Temperature	+135°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand RS PRO
	Pressure Reading Type Relative
	Minimum Pressure Reading -1bar
	Maximum Pressure Reading 24bar
	Accuracy ±0.25 %
	Output Type Current
	Media Measured Air, Gas, Hydraulic Fluid, Liquid, Water
	Process Connection G1/4
	Analogue Output 4 → 20 mA
	Electrical Connection DIN 43650 Type A
	Maximum Current 20 mA
	Supply Voltage 9 → 32 V dc
	Housing Material Stainless Steel
	Mounting Type Threaded
	IP Rating IP65
	Maximum Operating Temperature +135°C
	Minimum Operating Temperature -20°C

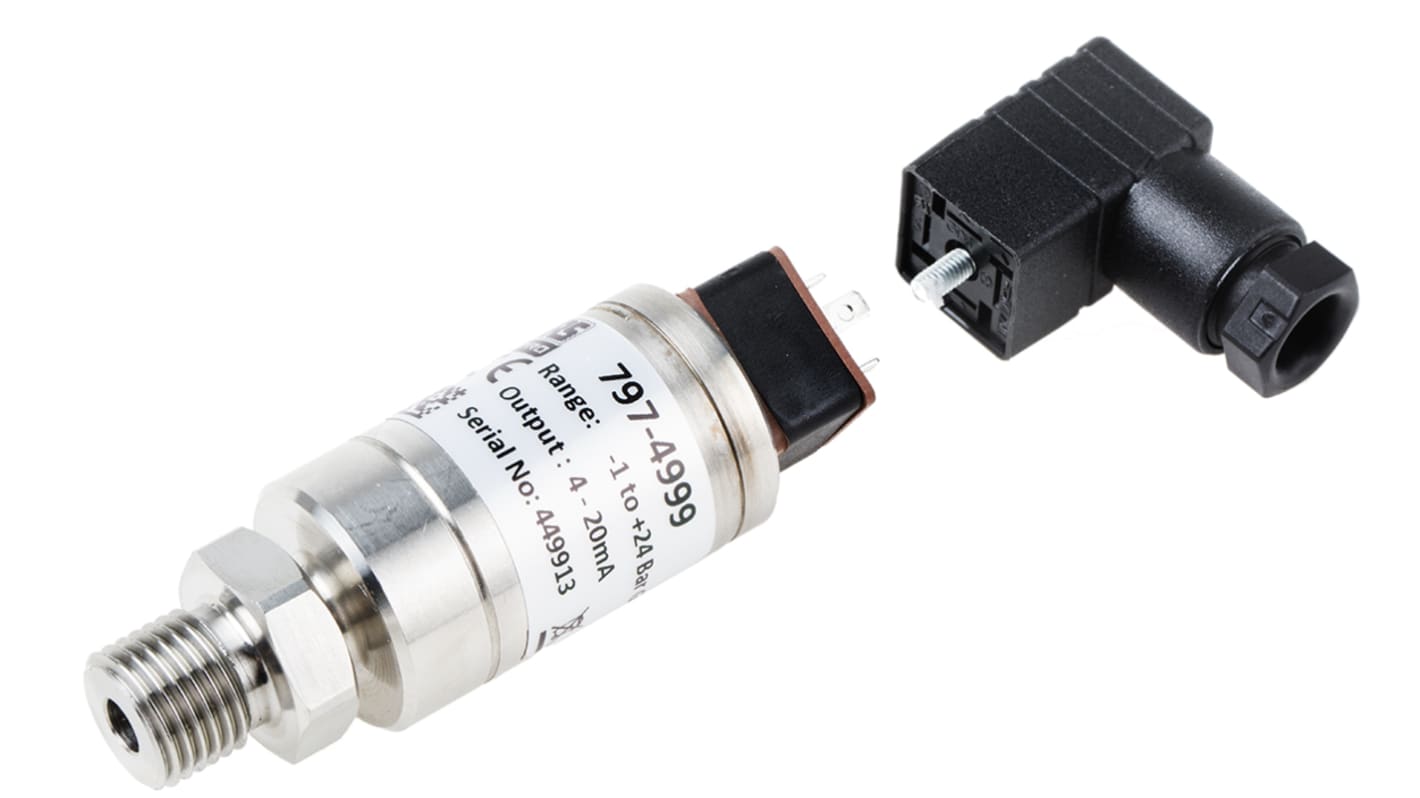

RS PRO Pressure Sensor, -1bar Min, 24bar Max, Current Output, Relative Reading

FREE delivery for orders over MYR500.00

Alternative

RS PRO Pressure Sensors - IND series

Features and Benefits

Material Specifications

Applications

RS PRO
