Druck Pressure Sensor, 250bar Max, Analogue Output, Relative Reading

Introducing Druck's UNIK 5000 pressure sensing platform, a range of sensing components that are ideal for measurement and control solution. The pressure sensing platform allows users to seamlessly build up their own sensor which can cater to their precise requirements. The UNIK 5000 pressure sensing platform offers high performance, configurable solutions for pressure measurement with the series employing modular design and lean manufacturing techniques. Each component from the UNIK 5000 platform creates a custom-built sensor, made up of Druck's standard components.

• The standard components, when formed and built create a bespoke sensor the user. This means that users have the capability to fast, efficiently, and simply manufacture sensors according to their own requirements
• Each UNIK 5000 is a bespoke pressure sensing solution
• Field-proven silicon technology
• Large ranges of mbar starting from 70 mbar (1 psi) to 700 bar (10,000 psi) - depending on the choice of components from the range
• Comprised of a hardwearing and aesthetically pleasing stainless steel
• Frequency response to 5 kHz
• High overpressure capability
• Multiple electrical & pressure connector options
• Depending on the components used to create the pressure sensor the UNIK 5000 has an operating temperature that ranges from -55 to 125°C (-67 to 257°F)
• mV, mA, Voltage and configurable voltage outputs
• Accuracy to 0.04% Full Scale (FS) Best Straight Line (BSL)

A pressure sensor is a device that senses applied pressure of gases and liquids within a certain application, the output of the measurement is then converted into an electrical signal which reflects the amount of pressure applied.

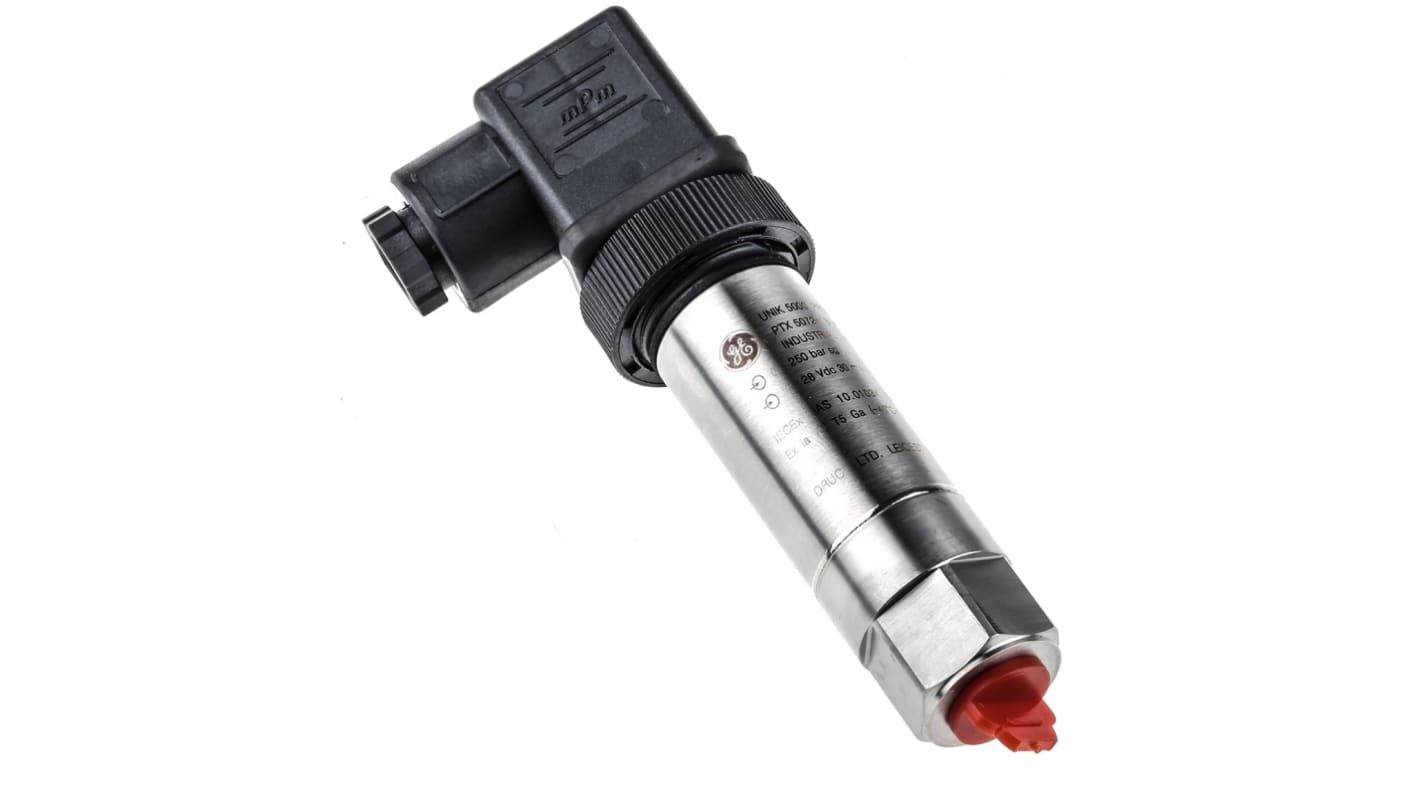

This pressure sensor by Druck is an ATEX-certified device with stainless steel housing, ideal for fluid pressure measurement up to 250 bar. With IP65 rating and G1/4 process connection, this sensor provides accurate readings with a response time of 10 ms.

• Accuracy of ±0.2% ensures precise pressure readings
• analogue output of 4 to 20 mA for easy connectivity
• DIN 43650 Type A electrical connection for secure installation
• Relative pressure reading type for versatile

• Suitable for use in hazardous areas due to ATEX certification
• Ideal for fluid pressure measurement in industrial settings

Yes, the Druck pressure sensor offers ±0.2% accuracy for reliable measurements.

Yes, this sensor operates within a supply voltage range of 7 to 28 V for versatility.

Yes, it is ATEX-certified for safe operation in such environments.

Druck PMP/PTX Transmitters & Transducers

The PMP/PTX 1440 range of Transducers/Transmitters have been designed for the use with aggressive media found in many industrial applications.

High Accuracy: Druck PMP/PTX transmitters and transducers offer high precision in pressure measurement, essential for critical applications.
Robust Construction: Built with durable materials, these devices can withstand harsh environmental conditions, ensuring longevity and reliability.
 Wide Pressure Range: Capable of measuring a broad range of pressures, from low to high, suitable for various industrial needs.
 Advanced Sensor Technology: Utilises cutting-edge sensor technology to deliver stable and repeatable measurements.
 Temperature Compensation: Equipped with temperature compensation features to maintain accuracy across a wide temperature range.
Compact Design: Their compact size allows for easy installation in space-constrained environments.
 Versatile Output Options: Available with multiple output options, including analog and digital, to integrate seamlessly with existing systems.
 Easy Calibration: Simple calibration procedures reduce maintenance time and enhance operational efficiency.
 Certifications and Compliance: Adheres to international standards, ensuring reliable performance and safety in diverse applications.
Customisable Configurations: Offers customisable configurations to meet specific application requirements.

Relevant Applications

 Druck PMP/PTX transmitters and transducers are used in a variety of industries and applications, including:

 Oil and Gas: For monitoring and controlling pressure in drilling, production, and refining processes.
 Aerospace: Used in testing and monitoring systems to ensure safety and performance.
 Industrial Automation: Integral in process control systems, providing accurate pressure data for efficient operation.
 Water and Wastewater Management: Helps in the monitoring of water pressure and flow in treatment plants.
 Pharmaceutical: Ensures precise pressure control in the manufacturing of pharmaceuticals.
 HVAC Systems: Used for monitoring and controlling pressure in heating, ventilation, and air conditioning systems.
 Automotive: Essential in testing and monitoring automotive components to meet stringent safety standards.
