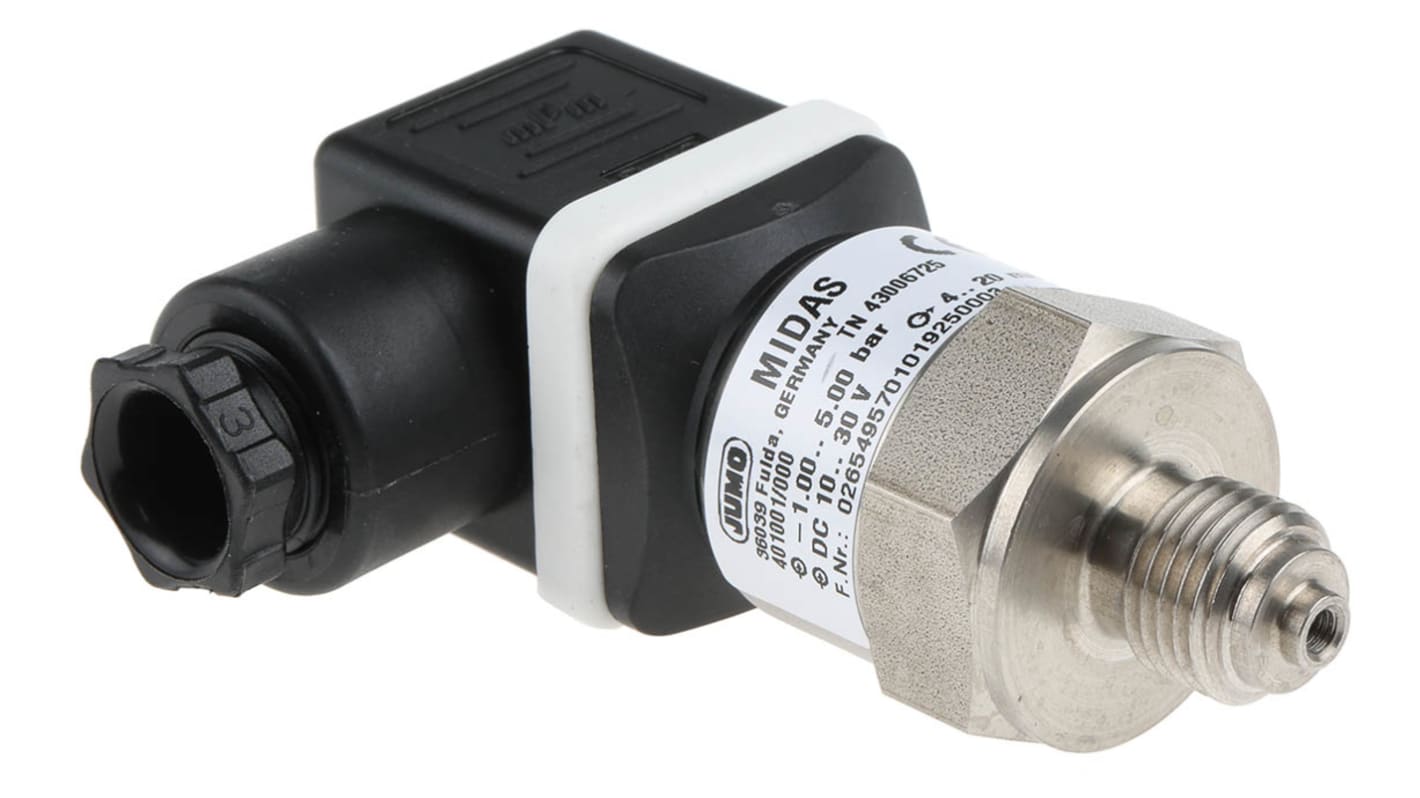

Jumo JUMO MIDAS Series Pressure Sensor -1 bar 5 bar
- RS Stock No.:
- 430-9834
- Mfr. Part No.:
- 401001/000-482-405-502-20-601-61/000
- Manufacturer:
- Jumo
Subtotal (1 unit)*
MYR1,257.22
FREE delivery for orders over RM 150.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 19 February 2027
- Plus 9 unit(s) shipping from 26 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,257.22 |
*price indicative
- RS Stock No.:
- 430-9834
- Mfr. Part No.:
- 401001/000-482-405-502-20-601-61/000
- Manufacturer:
- Jumo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Maximum Pressure Measurement | 5bar | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | -1bar | |
| Accuracy | 0.5 % | |
| Minimum Supply Voltage | 10V dc | |
| Series | JUMO MIDAS | |
| Maximum Supply Voltage | 24V | |
| Housing Material | 305L Stainless Steel | |
| Standards/Approvals | Pressure Directive 97/23/EC | |
| Maximum Operating Temperature | 125°C | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Maximum Pressure Measurement 5bar | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement -1bar | ||
Accuracy 0.5 % | ||
Minimum Supply Voltage 10V dc | ||
Series JUMO MIDAS | ||
Maximum Supply Voltage 24V | ||
Housing Material 305L Stainless Steel | ||
Standards/Approvals Pressure Directive 97/23/EC | ||
Maximum Operating Temperature 125°C | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
MIDAS — Pressure Transducer
Long service life through good media compatibility
Compact design, especially for applications where space is critical
Accurate measurements through stable temperature performance
Connection with in-line plug or cable socket
Areas of application
Refrigeration
Compressors
Building automation
Utility vehicles
Standards
DIN 16086, DIN IEC770 / 5.3
