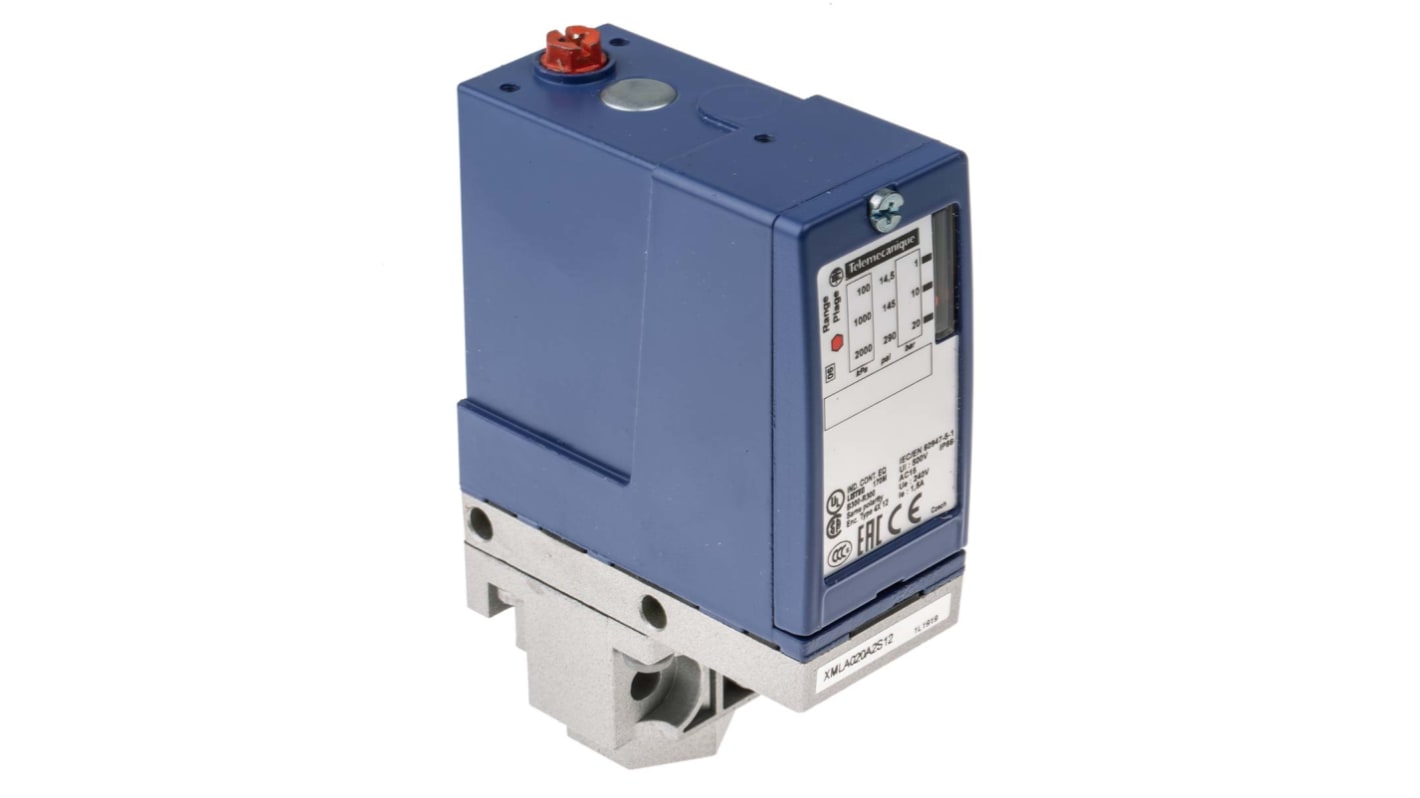

Telemecanique Sensors Pressure Sensor, 1bar Min, 20bar Max, Relay Output, Differential Reading

RS Stock No.:: 361-3457
Mfr. Part No.:: XMLA020A2S12
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors Pressure Sensor, 1bar Min, 20bar Max, Relay Output, Differential Reading

13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR998.79

Units	Per Unit
1 +	MYR998.79

RS Stock No.:: 361-3457
Mfr. Part No.:: XMLA020A2S12
Manufacturer:: Telemecanique Sensors

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: CZ

Product Details

OsiSense XMLA Pressure Switches

Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.

Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT

Note

Pressure quoted is 'per cycle' and (occasional)

Specifications

Attribute	Value
Pressure Reading Type	Differential
Minimum Pressure Reading	1bar
Maximum Pressure Reading	20bar
Accuracy	2 %
Output Type	Relay
Media Measured	Air, Fresh Water, Hydraulic Fluid, Sea Water
Process Connection	G1/4
Electrical Connection	M20 Cable Gland
Maximum Current	3 A ac, 100 mA dc
Supply Voltage	120 → 240 V ac, 250 V dc
Housing Material	Zinc Alloy
Minimum Operating Temperature	-25°C
IP Rating	IP66
Maximum Operating Temperature	+70°C
