Select all	Attribute	Value
	Brand	SICK
	Pressure Reading Type	Gauge
	Minimum Pressure Reading	0bar
	Maximum Pressure Reading	160bar
	Accuracy	± 0.5 %
	Output Type	IO-Link/PNP/NPN + 4 → 20 mA
	Media Measured	Gaseous, Liquid
	Process Connection	NPT 1/4
	Analogue Output	4 → 20 mA
	Electrical Connection	M12 Round Connector
	Response Time	5 ms
	Communication Protocol	IO-LINK
	Maximum Current	600 mA
	Series	PBS2
	Supply Voltage	15 → 35 V dc
	Housing Material	Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS
	IP Rating	IP67
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+85°C

	Select all
	Brand SICK
	Pressure Reading Type Gauge
	Minimum Pressure Reading 0bar
	Maximum Pressure Reading 160bar
	Accuracy ± 0.5 %
	Output Type IO-Link/PNP/NPN + 4 → 20 mA
	Media Measured Gaseous, Liquid
	Process Connection NPT 1/4
	Analogue Output 4 → 20 mA
	Electrical Connection M12 Round Connector
	Response Time 5 ms
	Communication Protocol IO-LINK
	Maximum Current 600 mA
	Series PBS2
	Supply Voltage 15 → 35 V dc
	Housing Material Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS
	IP Rating IP67
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +85°C

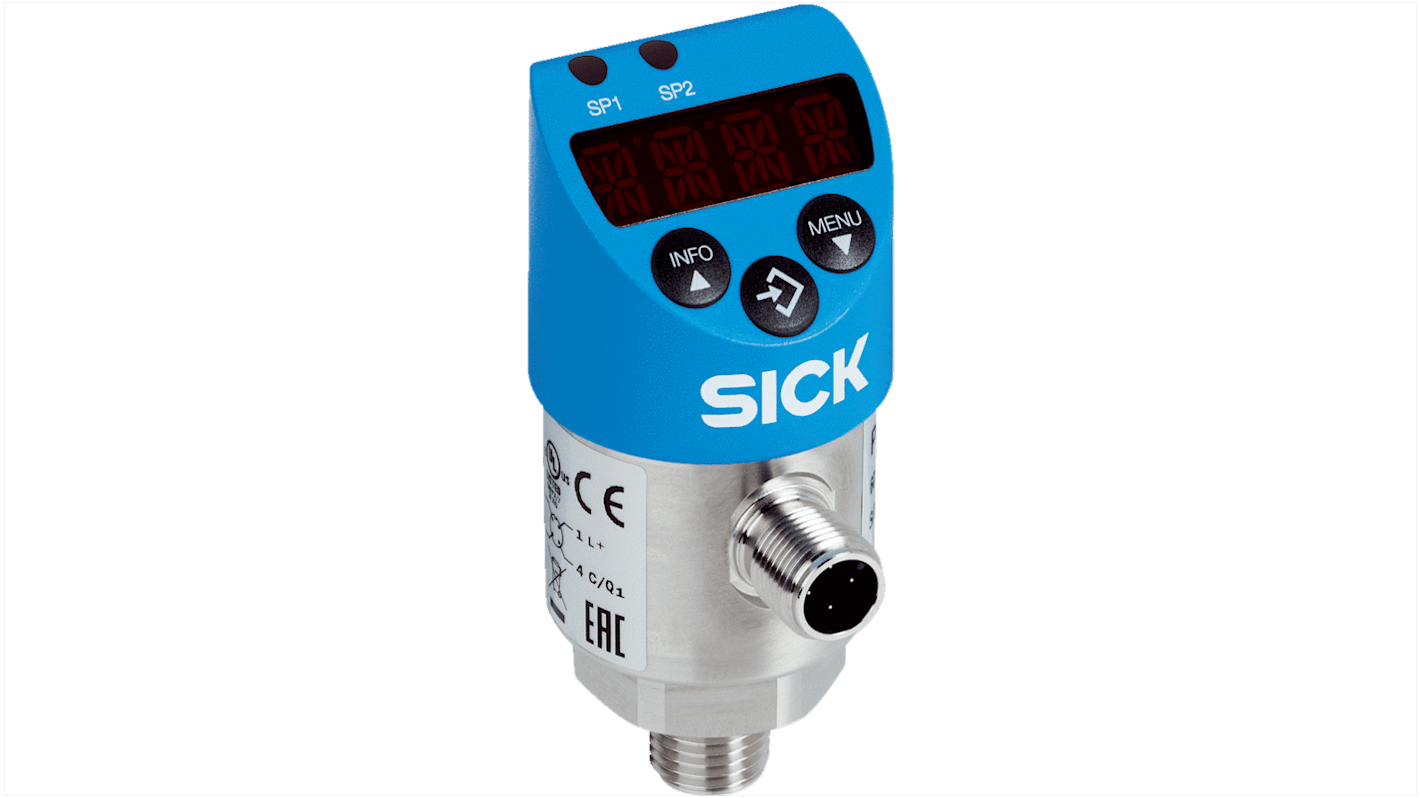

SICK PBS2 Series Pressure Sensor, 0bar Min, 160bar Max, IO-Link/PNP/NPN + 4 → 20 mA Output, Gauge Reading
