Units	Per Unit
1 - 9	MYR699.14
10 - 19	MYR678.16
20 - 49	MYR643.23
50 +	MYR559.32

Select all	Attribute	Value
	Brand	RS PRO
	Pressure Reading Type	Absolute
	Minimum Pressure Reading	-1bar
	Maximum Pressure Reading	5bar
	Accuracy	±0.5%FS
	Media Measured	Air, Fluid, Oil, Water
	Process Connection	G1/4A ISO 1179-2
	Electrical Connection	Angular DIN 175301-803A
	Series	M20
	Supply Voltage	8 to 30 V dc
	Housing Material	Nylon, Stainless steel 316L
	Mounting Type	Threaded
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	85°C

	Select all
	Brand RS PRO
	Pressure Reading Type Absolute
	Minimum Pressure Reading -1bar
	Maximum Pressure Reading 5bar
	Accuracy ±0.5%FS
	Media Measured Air, Fluid, Oil, Water
	Process Connection G1/4A ISO 1179-2
	Electrical Connection Angular DIN 175301-803A
	Series M20
	Supply Voltage 8 to 30 V dc
	Housing Material Nylon, Stainless steel 316L
	Mounting Type Threaded
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 85°C

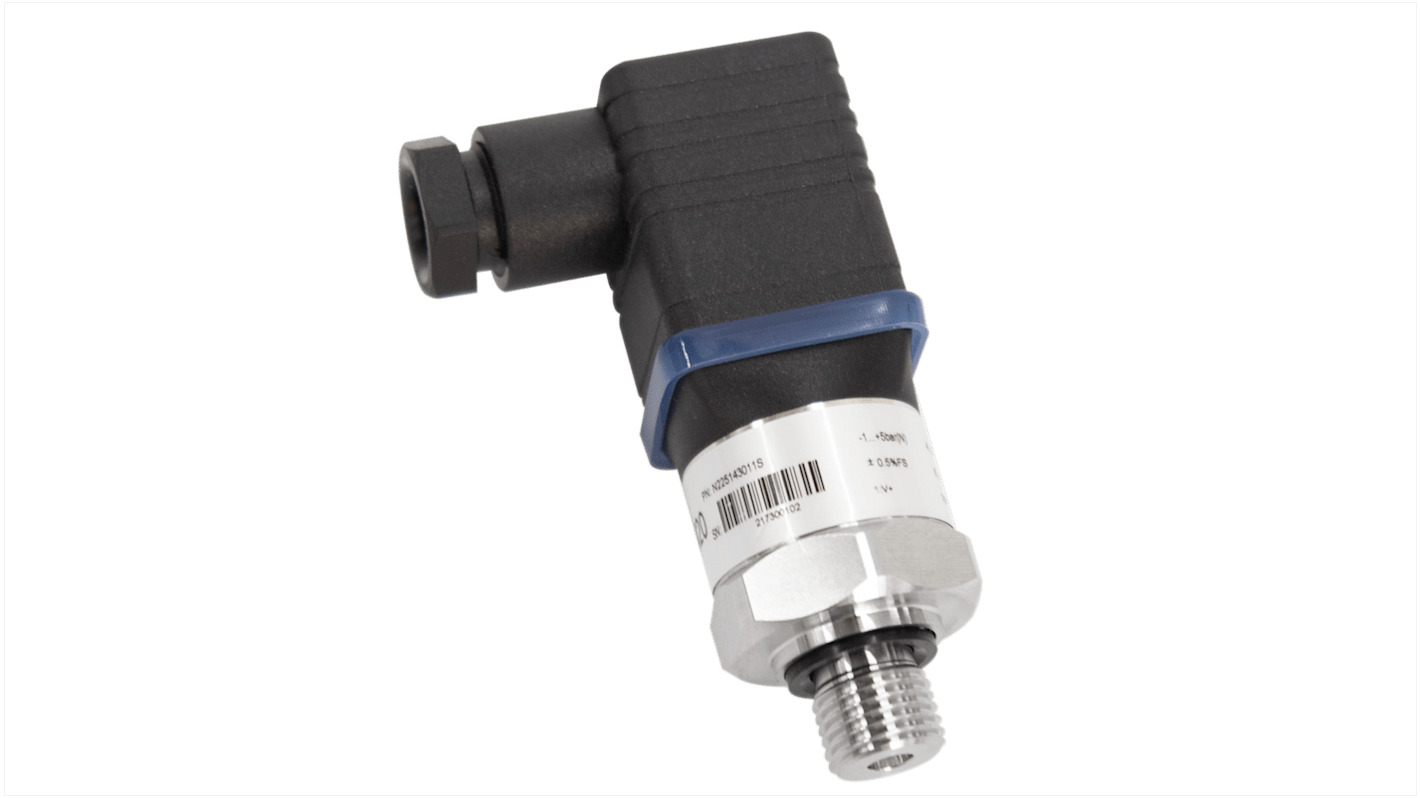

RS PRO Pressure Sensor, -1bar Min, 5bar Max, Absolute Reading

FREE delivery for orders over MYR500.00

RS PRO M20 Pressure Sensor, Pressure Transmitter, Positive / Negative, 0 to +5 bar.
