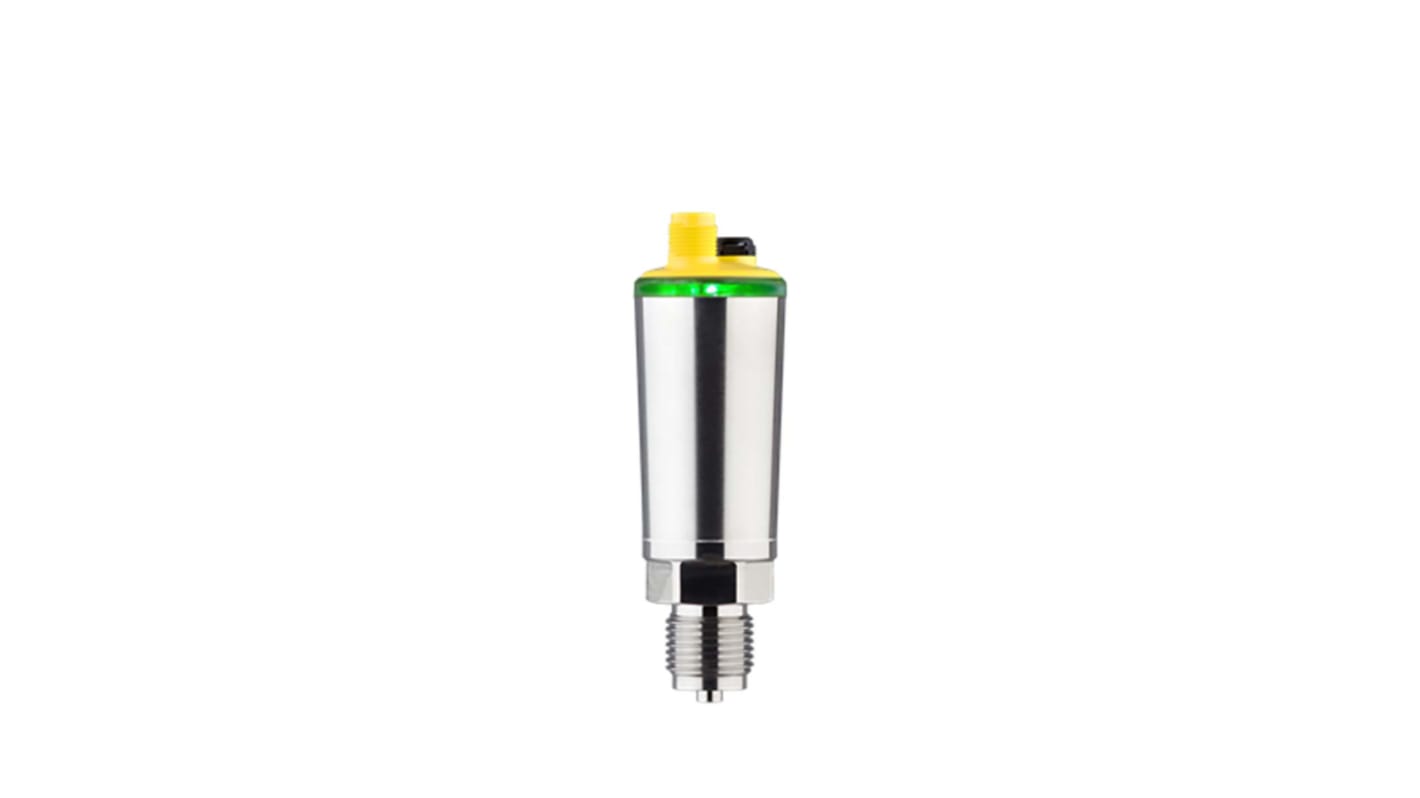

Vega VEGABAR 28 Series Vegabar, 0bar Min, 25bar Max, Analogue Output, Gauge, Relative Reading
- RS Stock No.:
- 206-7030
- Mfr. Part No.:
- PP - 222 2MD
- Manufacturer:
- Vega
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,797.56
| Units | Per Unit |
| 1 + | MYR1,797.56 |
- RS Stock No.:
- 206-7030
- Mfr. Part No.:
- PP - 222 2MD
- Manufacturer:
- Vega
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Vega's VEGABAR 28 is a universally applicable pressure sensor with switching function and ceramic measuring cell. It is used for measuring gas, vapour and liquid. Even with high requirement for robustness and hygiene, the device record the measured value with high accuracy. It has 25 bar Bluetooth ceramic pressure sensor and used 4/20 mA of output signal.
Coloured 360° switching status display
Process temperature -40 to +130 °C
Process temperature -40 to +130 °C
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Gauge, Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 25bar |
| Accuracy | 0.3 % |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/2 |
| Electrical Connection | M12 |
| Analogue Output | 4 → 20 mA |
| Communication Protocol | IO-LINK |
| Series | VEGABAR 28 |
| Supply Voltage | 12-35V DC |
| Interface | Bluetooth |
| Housing Material | St St/PBT Plastic |
| IP Rating | IP66, IP67 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 130 °C (135 °C 1hr) |
