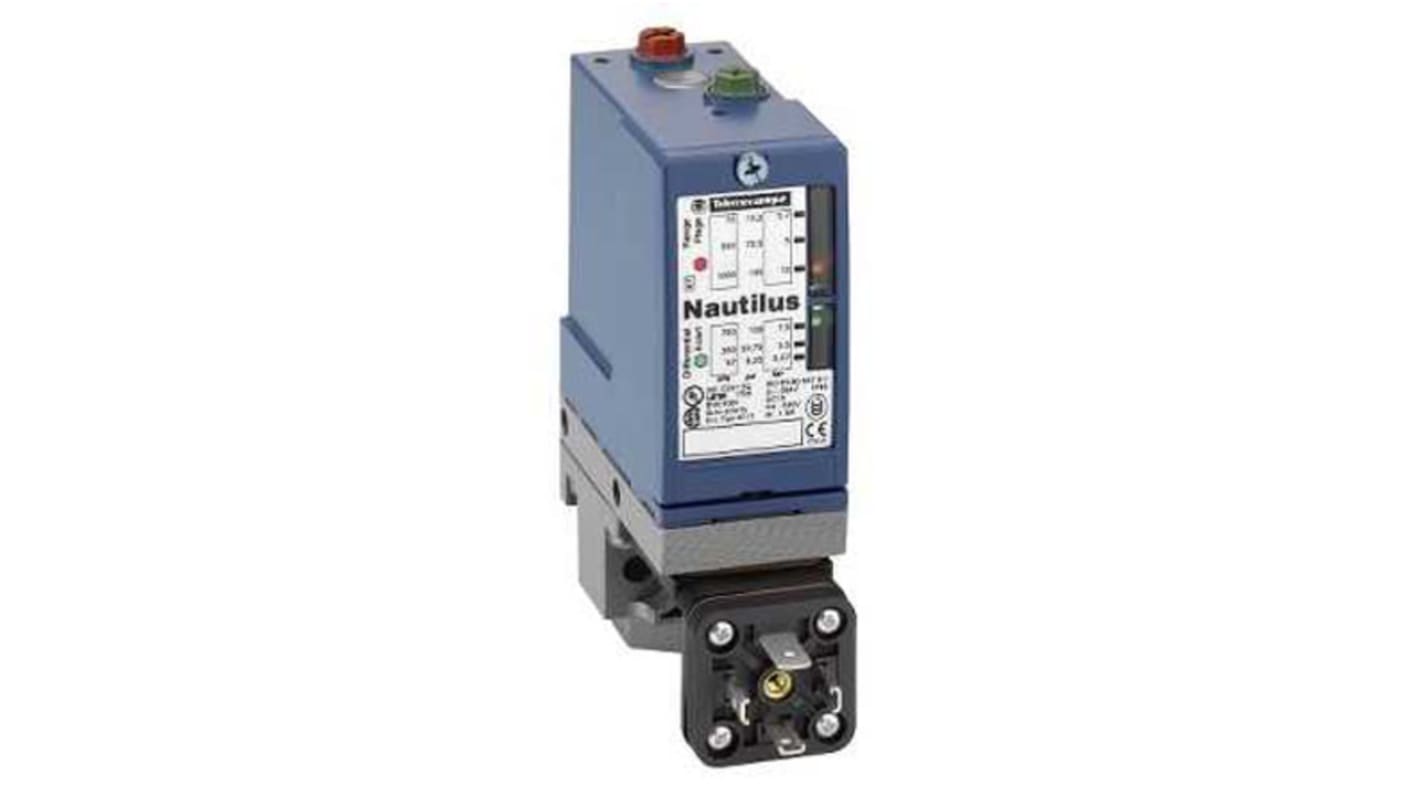

Telemecanique Sensors Pressure Switch, 10bar Min, 160bar Max, 1CO Output
- RS Stock No.:
- 135-3742
- Mfr. Part No.:
- XMLB160D2C11
- Manufacturer:
- Telemecanique Sensors
Subtotal (1 unit)**
MYR1,816.37
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR1,816.37 |
**price indicative
- RS Stock No.:
- 135-3742
- Mfr. Part No.:
- XMLB160D2C11
- Manufacturer:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Telemecanique Sensors | |
Minimum Pressure Reading | 10bar | |
Maximum Pressure Reading | 160bar | |
Accuracy | <2 % | |
Output Type | 1CO | |
Media Measured | Air, Hydraulic Oil | |
Electrical Connection | DIN 43650A 4-Pin Male Connector | |
Maximum Current | 100 mA @ 250 V dc, 3 A @ 120 V ac | |
Supply Voltage | 240 V ac, 250 V dc | |
Housing Material | Zinc Alloy | |
Mounting Type | Panel Mount | |
Maximum Operating Temperature | +158°C | |
IP Rating | IP65, IP66 | |
Minimum Operating Temperature | -13°C | |
Select all | ||
---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 10bar | ||
Maximum Pressure Reading 160bar | ||
Accuracy <2 % | ||
Output Type 1CO | ||
Media Measured Air, Hydraulic Oil | ||
Electrical Connection DIN 43650A 4-Pin Male Connector | ||
Maximum Current 100 mA @ 250 V dc, 3 A @ 120 V ac | ||
Supply Voltage 240 V ac, 250 V dc | ||
Housing Material Zinc Alloy | ||
Mounting Type Panel Mount | ||
Maximum Operating Temperature +158°C | ||
IP Rating IP65, IP66 | ||
Minimum Operating Temperature -13°C | ||
