Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Pressure Reading Type	Differential
	Minimum Pressure Reading	-1bar
	Maximum Pressure Reading	-0.08bar
	Accuracy	≤1 %
	Output Type	Analogue, PNP-NO/NC
	Media Measured	Air, Fresh Water, Hydraulic Oil, Refrigeration Fluid
	Process Connection	G1/4
	Electrical Connection	M12 4-Pin Connector
	Analogue Output	0 → 10 V
	Response Time	≤10 ms
	Maximum Current	≤50 mA
	Supply Voltage	24 V dc
	Housing Material	Polyacrylamide, Stainless Steel 316L
	IP Rating	IP65, IP67
	Mounting Type	Vertical Mount
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand Telemecanique Sensors
	Pressure Reading Type Differential
	Minimum Pressure Reading -1bar
	Maximum Pressure Reading -0.08bar
	Accuracy ≤1 %
	Output Type Analogue, PNP-NO/NC
	Media Measured Air, Fresh Water, Hydraulic Oil, Refrigeration Fluid
	Process Connection G1/4
	Electrical Connection M12 4-Pin Connector
	Analogue Output 0 → 10 V
	Response Time ≤10 ms
	Maximum Current ≤50 mA
	Supply Voltage 24 V dc
	Housing Material Polyacrylamide, Stainless Steel 316L
	IP Rating IP65, IP67
	Mounting Type Vertical Mount
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -20°C

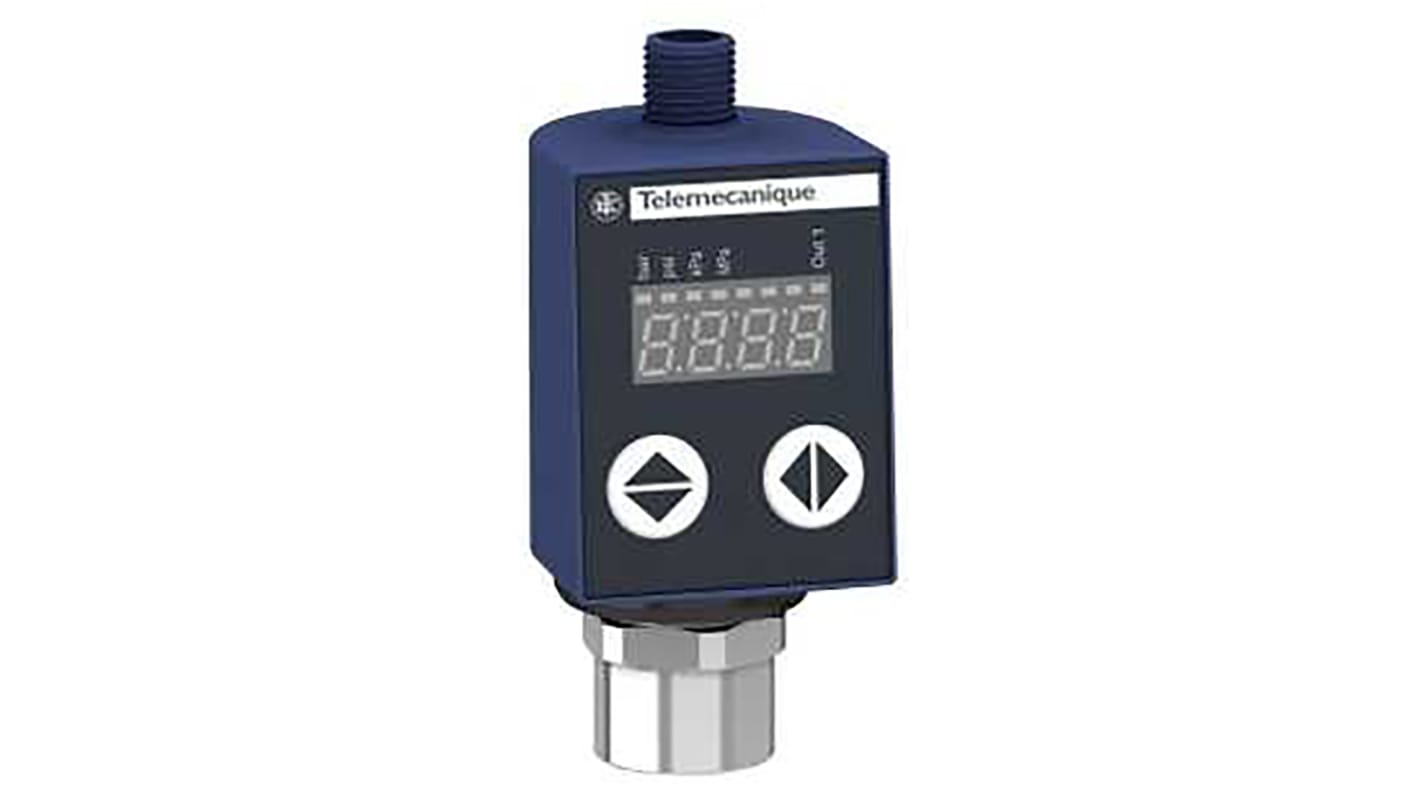

Telemecanique Sensors Pressure Switch, -1bar Min, -0.08bar Max, Analogue, PNP-NO/NC Output, Differential Reading

FREE delivery for orders over MYR500.00

OsiSense XMLR Pressure Sensors
