WIKA A-10 Series Pressure Sensor, -1bar Min, 9bar Max, Analogue Output
- RS Stock No.:
- 124-1476
- Mfr. Part No.:
- 46879279
- Manufacturer:
- WIKA
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR952.45
| Units | Per Unit |
| 1 + | MYR952.45 |
- RS Stock No.:
- 124-1476
- Mfr. Part No.:
- 46879279
- Manufacturer:
- WIKA
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

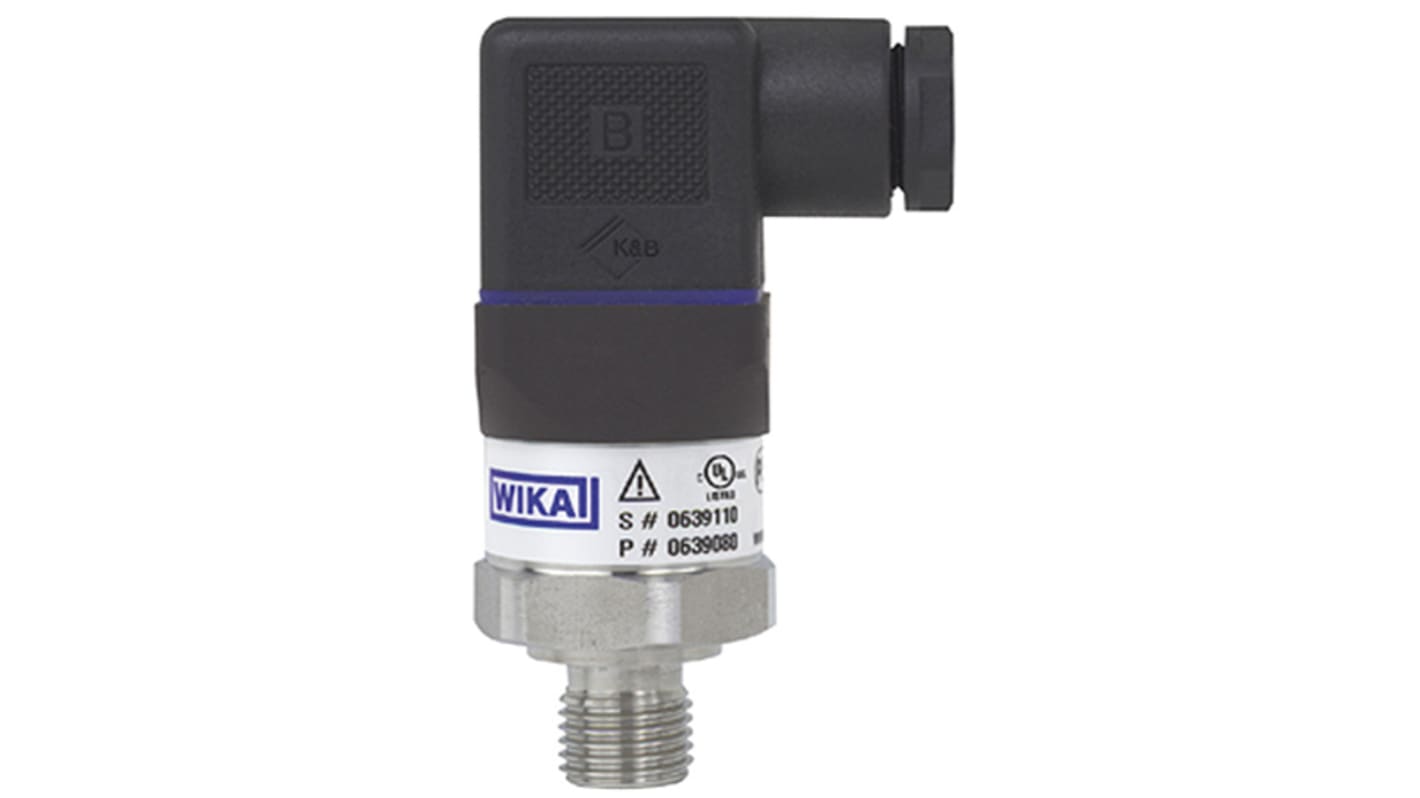

Wika A10 Series Pressure Sensor
Wika A-10 range of pressure transmitters suitable in demanding applications provide the user with a precision engineered product. Suitable for use within a vast range of industrial & OEM pressure measurement applications. Resistant to vibration, shock & wide temperature variations thanks to a rugged exterior.
Compact industrial pressure / level transmitter for gas, liquid
Rugged design
Fully welded stainless steel wetted parts
High performance
Fast response <4 milliseconds
cULus and EAC certified
Designed to withstand 100 million pressure cycles
Shock resistance per IEC 60068-2-27 to 500g, vibration resistance per IEC 60068-2-6 to 10g
Rugged design
Fully welded stainless steel wetted parts
High performance
Fast response <4 milliseconds
cULus and EAC certified
Designed to withstand 100 million pressure cycles
Shock resistance per IEC 60068-2-27 to 500g, vibration resistance per IEC 60068-2-6 to 10g
Specifications
Attribute | Value |
|---|---|
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 9bar |
| Accuracy | 0.5 % |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Electrical Connection | DIN 175301-803 C |
| Analogue Output | 4 → 20 mA |
| Response Time | < 4 ms |
| Series | A-10 |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP65 |
