Units	Per Unit
1 - 24	MYR90.21
25 - 49	MYR88.30
50 - 99	MYR85.64
100 - 249	MYR83.54
250 +	MYR81.75

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	12V ac
	Contact Configuration	DPDT
	Mounting Type	PCB Mount
	Switching Current	8A
	Number of Poles	2
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	400V ac
	Maximum Switching Voltage DC	8V
	Length	29mm
	Coil Resistance	80 Ω
	Coil Power	1.2W
	Height	25mm
	Depth	12.4mm
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Series	40 Series
	Contact Material	Silver Alloy
	Isolation Coil To Contact	6kV
	Life	100000 (Electrical) cycles, 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles
	Maximum Switching Power AC	2.5 kVA
	Application	PCB

	Select all
	Brand Finder
	Coil Voltage 12V ac
	Contact Configuration DPDT
	Mounting Type PCB Mount
	Switching Current 8A
	Number of Poles 2
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 400V ac
	Maximum Switching Voltage DC 8V
	Length 29mm
	Coil Resistance 80 Ω
	Coil Power 1.2W
	Height 25mm
	Depth 12.4mm
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Series 40 Series
	Contact Material Silver Alloy
	Isolation Coil To Contact 6kV
	Life 100000 (Electrical) cycles, 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles
	Maximum Switching Power AC 2.5 kVA
	Application PCB

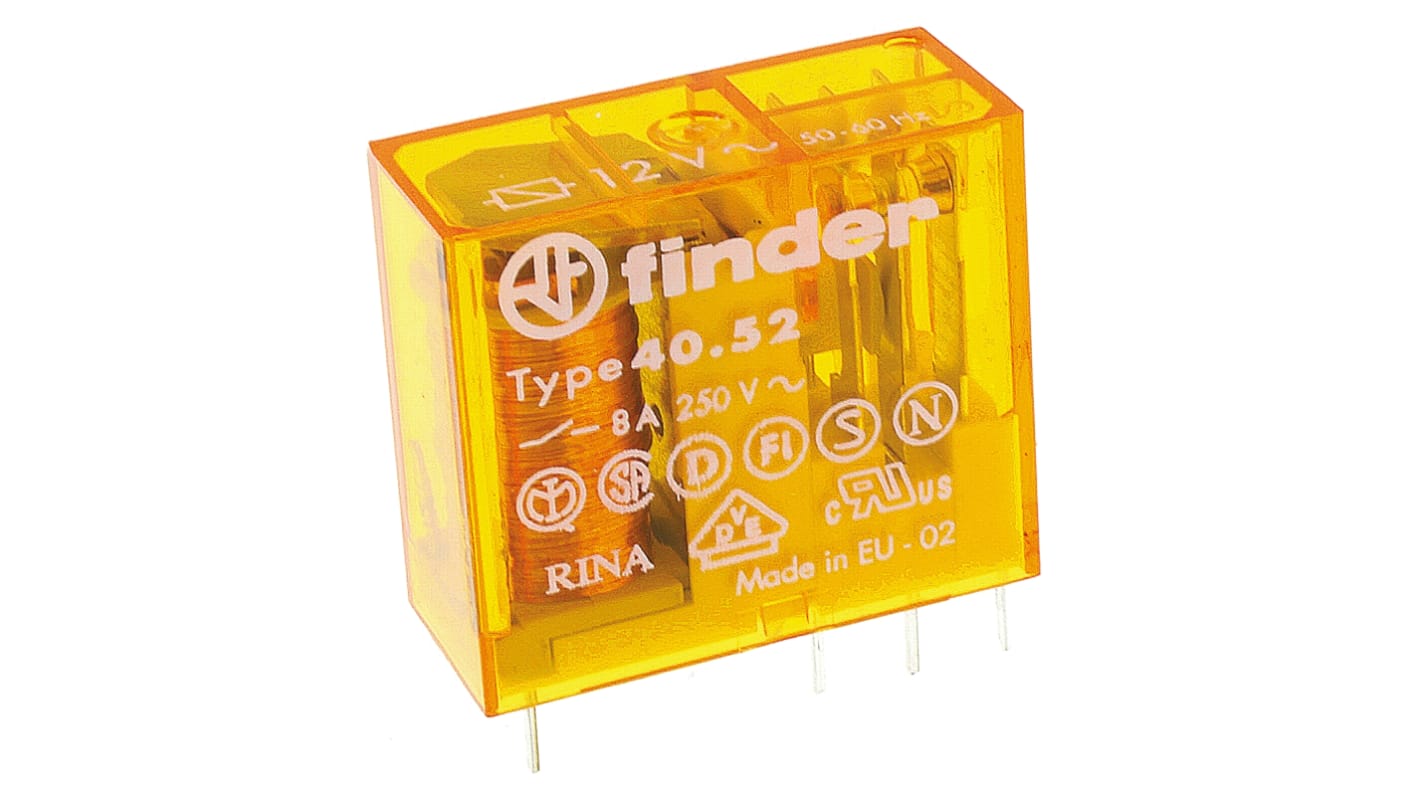

Finder PCB Mount Power Relay, 12V ac Coil, 8A Switching Current, DPDT

FREE delivery for orders over MYR500.00

Finder 40 Series Power Relay, 12V AC Coil Voltage, 8A Switching Current - 40.52.8.012.0000
