Units	Per Unit
1 - 14	MYR38.61
15 - 24	MYR38.46
25 +	MYR38.05

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	240V ac
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	30V dc
	Length	28mm
	Coil Resistance	18.79 kΩ
	Coil Power	1.1W
	Depth	21.5mm
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+70°C
	Series	MY
	Isolation Coil To Contact	2kV
	Contact Material	Silver
	Height	36mm
	Standards Met	CE, CSA
	Maximum Switching Power AC	2.5 kVA
	Maximum Switching Power DC	300 W
	Dimensions	36 x 28 x 21.5mm
	Application	Power

	Select all
	Brand Omron
	Coil Voltage 240V ac
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 30V dc
	Length 28mm
	Coil Resistance 18.79 kΩ
	Coil Power 1.1W
	Depth 21.5mm
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +70°C
	Series MY
	Isolation Coil To Contact 2kV
	Contact Material Silver
	Height 36mm
	Standards Met CE, CSA
	Maximum Switching Power AC 2.5 kVA
	Maximum Switching Power DC 300 W
	Dimensions 36 x 28 x 21.5mm
	Application Power

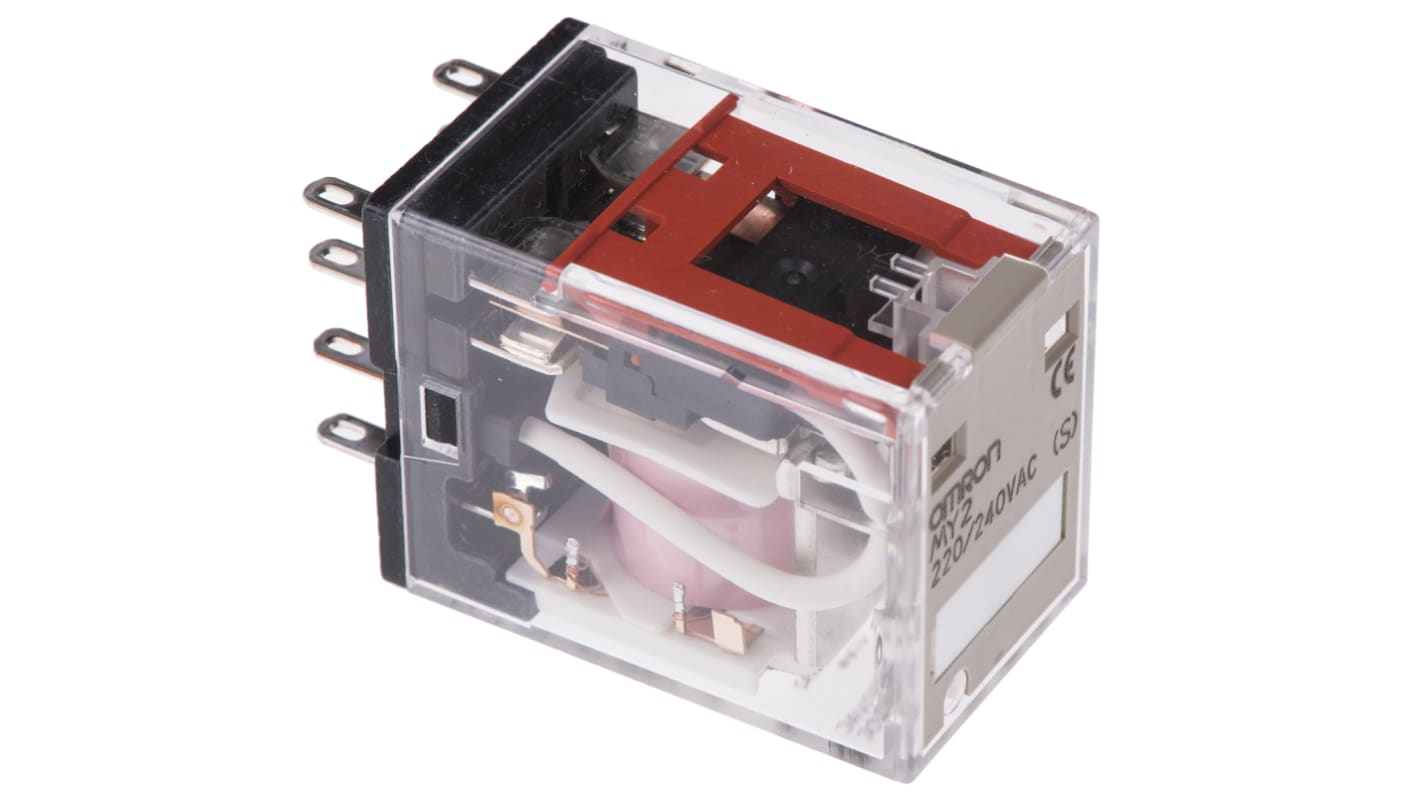

Omron Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT

FREE delivery for orders over MYR500.00

OMRON Power Relay, 28 (L) x 36 (W) x 21.5mm (D), Non-Latching - MY Series - MY2 AC220/240(S)

Features & Benefits

Applications

Does this power relay have any built-in safety features?

Note

Approvals

Related links
