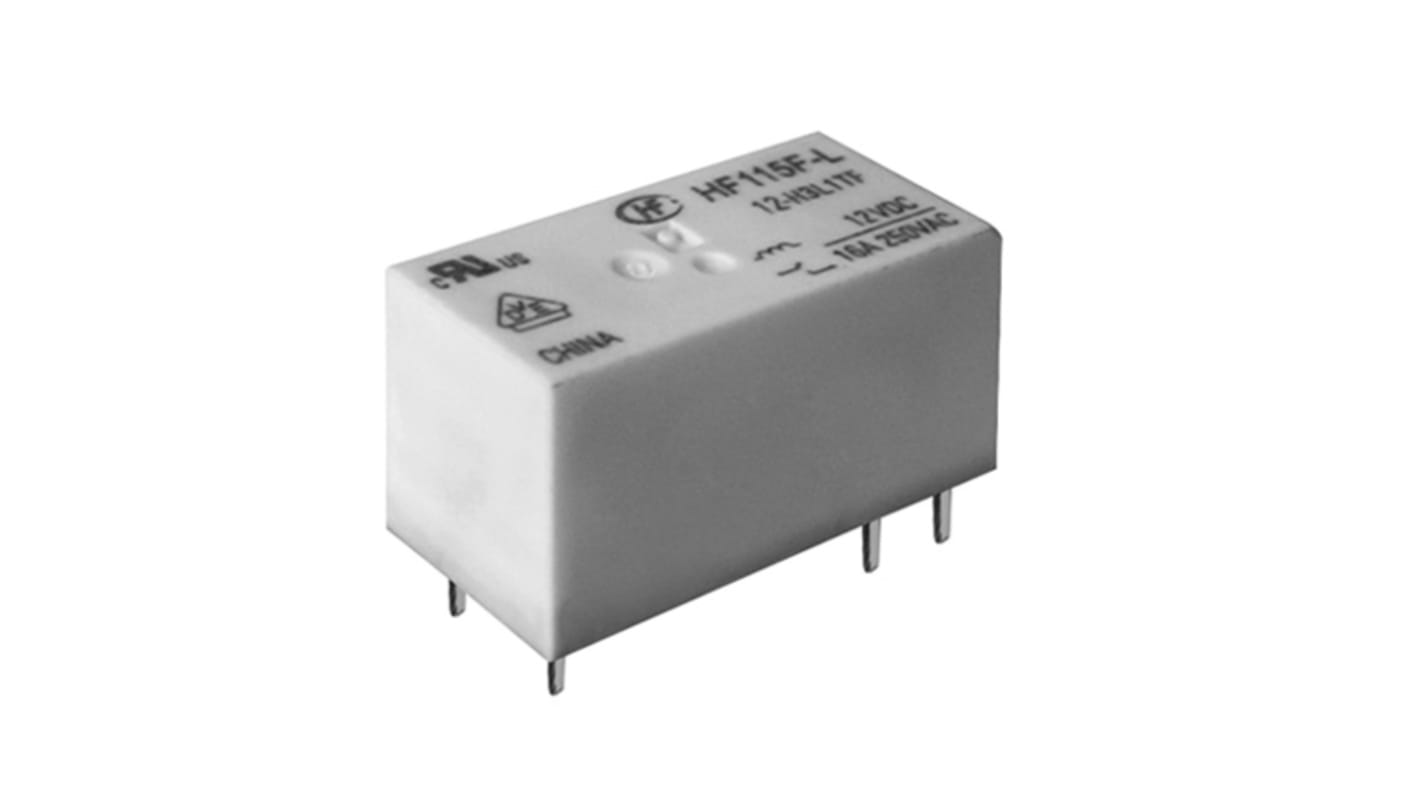

HF115F-L/5-Z3L1TF(610) | Hongfa Europe GMBH PCB Mount Latching Power Relay, 5V dc Coil, 20A Switching Current, SPDT | RS
Recently searched

    Hongfa Europe GMBH PCB Mount Latching Power Relay, 5V dc Coil, 20A Switching Current, SPDT

    View all Power Relays

    Subtotal (1 unit)**

    MYR18.47

    Add to Basket
    Select or type quantity
    357 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR18.47

    **price indicative

    RS Stock No.:
    176-2952
    Mfr. Part No.:
    HF115F-L/5-Z3L1TF(610)
    Manufacturer:
    Hongfa Europe GMBH
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Hongfa Europe GMBH

    Coil Voltage

    5V dc

    Contact Configuration

    SPDT

    Mounting Type

    PCB Mount

    Switching Current

    20A

    Number of Poles

    1

    Latching

    Yes

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    440V

    Maximum Switching Voltage DC

    300V dc

    Maximum Switching Current DC

    20 A

    Maximum Switching Current AC

    20 A

    Length

    29mm

    Coil Resistance

    62Ω

    Coil Power

    400mW

    Standards Met

    CQC File No:CQC17002168381, cULus File No:E134517, VDE File No:116934

    Contact Material

    Silver Alloy

    Series

    HF115F-L

    Life

    2 x 10^6 cycles

    Minimum Operating Temperature

    -40°C

    Isolation Coil To Contact

    5kV

    Maximum Operating Temperature

    +85°C

    Height

    15.7mm

    Depth

    12.7mm

    Maximum Switching Power AC

    4 kVA

    Dimensions

    29 x 12.7 x 15.7mm
