Microchip PSE AT Power Over Ethernet (POE) for PD69200, PD69208M for PD69200, PD69208M
- RS Stock No.:
- 215-6007
- Mfr. Part No.:
- PD-IM-7608M
- Manufacturer:
- Microchip
Subtotal (1 unit)*
MYR1,934.81
FREE delivery for orders over RM 500.00
In Stock
- Plus 2 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,934.81 |
*price indicative
- RS Stock No.:
- 215-6007
- Mfr. Part No.:
- PD-IM-7608M
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Power Management Function | Power Over Ethernet (POE) | |
| For Use With | PD69200, PD69208M | |
| Kit Classification | Evaluation Board | |
| Featured Device | PD69200, PD69208M | |
| Kit Name | PSE AT | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Power Management Function Power Over Ethernet (POE) | ||
For Use With PD69200, PD69208M | ||
Kit Classification Evaluation Board | ||
Featured Device PD69200, PD69208M | ||
Kit Name PSE AT | ||

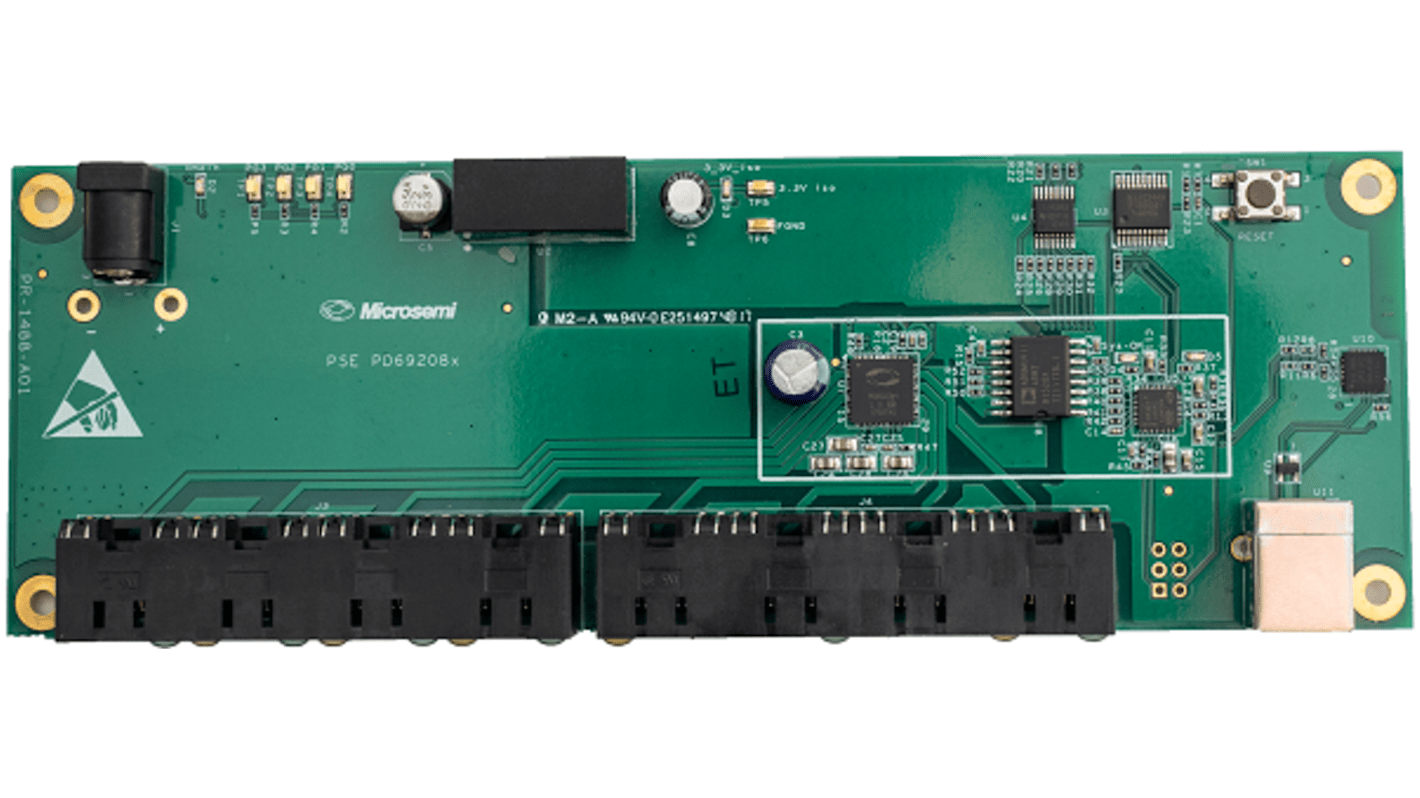

The Microchip PD-IM-7608M evaluation board is developed based on PD69208M and PD69200 chipsets. PD-IM7608M demonstrates the operation of eight 2-pair ports systems
for 4-pair systems, refer to the PD-IM7604+4MH or PD-IM-7604+4T4H evaluation boards. Microchip's PD69208M Power over Ethernet (PoE) manager IC integrates power, analogue, and state-of-the-art logic into a single 56-pin, plastic QFN package.
Featuring PD69208M, PD69200
IEEE 802.3af/at/bt Type3 standard compliant
8 ports
Supporting 8 x 30W / 4 x 60W ports
LED stream
UART / USB host interface
Two gangs (each contains 4 RJ45 connectors)
IEEE 802.3af/at/bt Type3 standard compliant
8 ports
Supporting 8 x 30W / 4 x 60W ports
LED stream
UART / USB host interface
Two gangs (each contains 4 RJ45 connectors)
