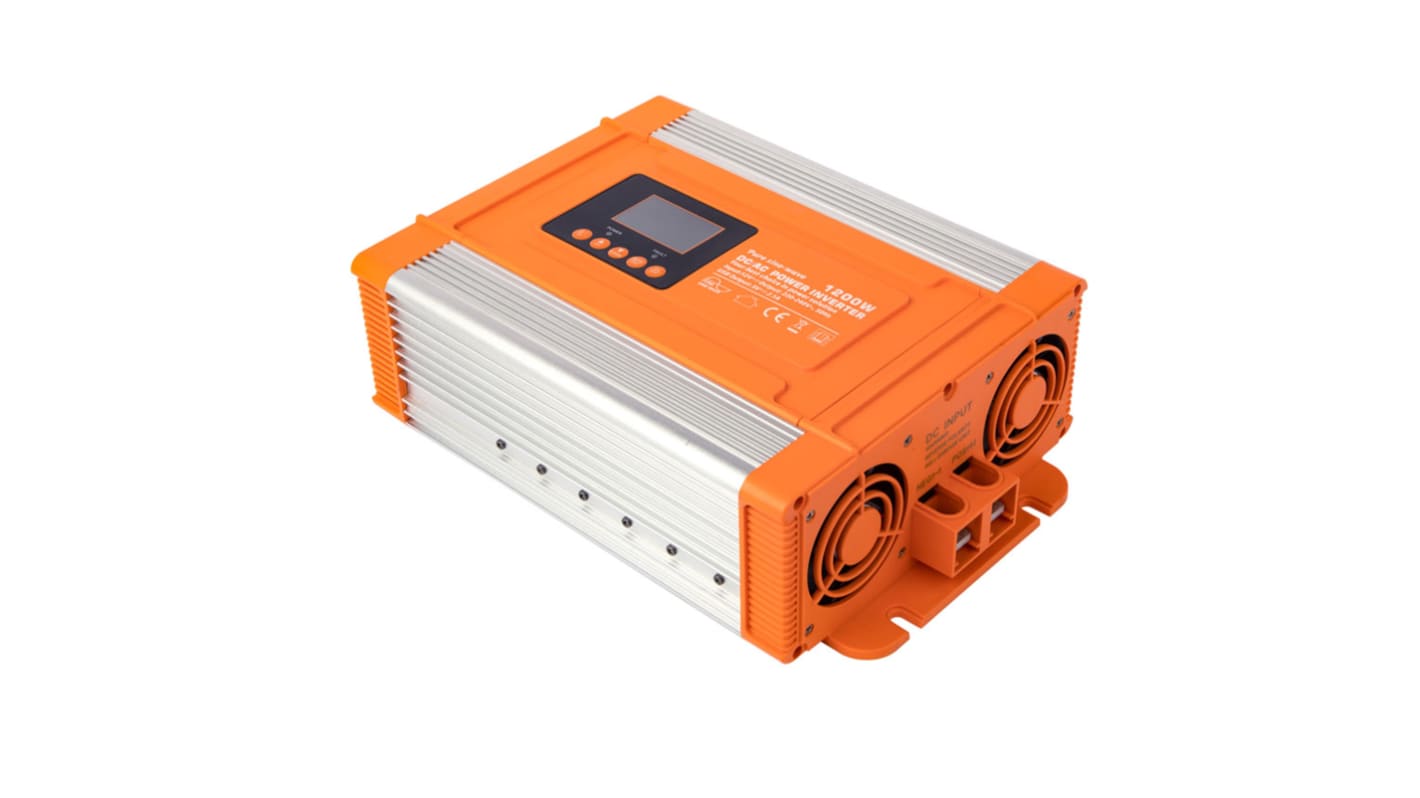

RS PRO 1200W Fixed Installation DC-AC Power Inverter, 48V dc Input, 230V ac Output

View all Power Inverters

Subtotal (1 unit)*

MYR1,935.54

Add to Basket
Select or type quantity
In Stock
  • Plus 7 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR1,935.54

*price indicative

RS Stock No.:
268-5149
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Input Voltage

48V dc

Product Type

Fixed Installation DC-AC Power Inverter

Output Voltage

230V ac

Output Power

1200W

Output Connector Type

Universal Socket

Efficiency

92%

Number of Outputs

2

MTBF

86852kH

Output Current

5.21A

Maximum Operating Temperature

50°C

Weight

3.82kg

Standards/Approvals

UKCA, RoHS, CE

Width

245mm

Length

362mm

Depth

113mm

Minimum Operating Temperature

-20°C

Mount Type

Chassis

COO (Country of Origin):
CN

RS PRO Pure Sine Wave Fixed Installation 48 V dc, 1200 W DC-AC Power Inverter, LCD Digital Display, Remote Monitoring Control with RS485 Port


Need a safe way to power your electrical devices? RS PRO offer you a selection of high-performance Pure Sine wave fixed installation power inverters, providing a wealth of features and benefits. Pure Sine wave power inverters supply a clean and stable high quality AC power designed for permanent fixed installations normally hard wired into an electrical system.

The power inverter is easy to operate with a single on/off switch, soft start, two universal plug sockets including LED indicators allowing you to check on the inverters operating status including a digital LCD Panel with navigation keyboard and remote control available via the RS485 port. Various protections are built-in, automatic shutdown and restart, overvoltage, short circuit, and overload protection, IP22 rating (indoor use only) plus compliance to CE, RoHS, UKCE and REACH declaration.

Features & Benefits


  • Single direction fixed DC-AC Power Converter

  • 1200 W Rated power

  • Anodized aluminium case with PC side panel

  • Chassis mounted, 2 x Universal sockets

  • 230 V ac, 48 V dc

  • Digital LCD Panel, input/output data, adjustable button selection

  • RS485 Protocol for computer monitoring

  • Polarity reverse protection, Mosfet controlled, no fuse burning

  • Pure Sine Wave output

  • LED Indicators, green, red

  • 60 Hz Frequency range

  • Cooling fan, load, and temperature controller

  • Input and output isolation with EMI filtering

    • Applications Type


  • Televisions, computers, fans, phone charging, home appliances, power tools

  • Vehicles

  • Solar powered systems

  • Back-up power systems, RVs, Boats plus many more

    • What is a Pure Sine Wave fixed installation Power Inverter?


    This type of Power inverter id designed for fixed or permanent installation within, for example, your home or a commercial building. The power inverter converts direct current (DC) electricity, normally from batteries or solar power into AC (alternating current) electricity enabling it to power many other appliances and devices. Always consider your power requirements for the type of devices you need to use as it is important that the inverter you select can handle the load to provide the required power output.

    Protection Supplied


  • Low voltage alarm and low/over voltage protection and recovery

  • Short circuit / overload protection

  • Over temperature, close output, automatic restart when temperature reduces

  • Input reversed protection

  • Soft start up

  • Ground protection

    • Why RS PRO?


    RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
