Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR7,352.72
FREE delivery for orders over RM 500.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 20 August 2026
- Plus 4 unit(s) shipping from 10 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR7,352.72 |
| 5 - 9 | MYR7,132.14 |
| 10 - 24 | MYR6,846.85 |
| 25 - 124 | MYR6,504.51 |
| 125 + | MYR6,114.24 |
*price indicative
Sponsored
- RS Stock No.:
- 144-7708
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Input Voltage | 110V dc | |
| Product Type | DC AC Inverter | |
| Output Voltage | 230V ac | |
| Efficiency | 0.89% | |
| MTBF | 160000h | |
| Output Current | 3.26A | |
| Maximum Operating Temperature | 55°C | |
| Length | 270.5mm | |
| Depth | 160mm | |
| Standards/Approvals | 2014/35/EU, EN 50121-3-2, EN 50121-4, EN 50155, EN 45545-2, 2014/30/EU, EN 62368-1 | |
| Width | 160mm | |
| Series | ODS | |
| Weight | 2kg | |
| Minimum Operating Temperature | -25°C | |
| Protection Features | Current Limit, Overload Protection, Polarity | |
| Mount Type | Chassis | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Input Voltage 110V dc | ||
Product Type DC AC Inverter | ||
Output Voltage 230V ac | ||
Efficiency 0.89% | ||
MTBF 160000h | ||
Output Current 3.26A | ||
Maximum Operating Temperature 55°C | ||
Length 270.5mm | ||
Depth 160mm | ||
Standards/Approvals 2014/35/EU, EN 50121-3-2, EN 50121-4, EN 50155, EN 45545-2, 2014/30/EU, EN 62368-1 | ||
Width 160mm | ||
Series ODS | ||
Weight 2kg | ||
Minimum Operating Temperature -25°C | ||
Protection Features Current Limit, Overload Protection, Polarity | ||
Mount Type Chassis | ||
- COO (Country of Origin):
- ES

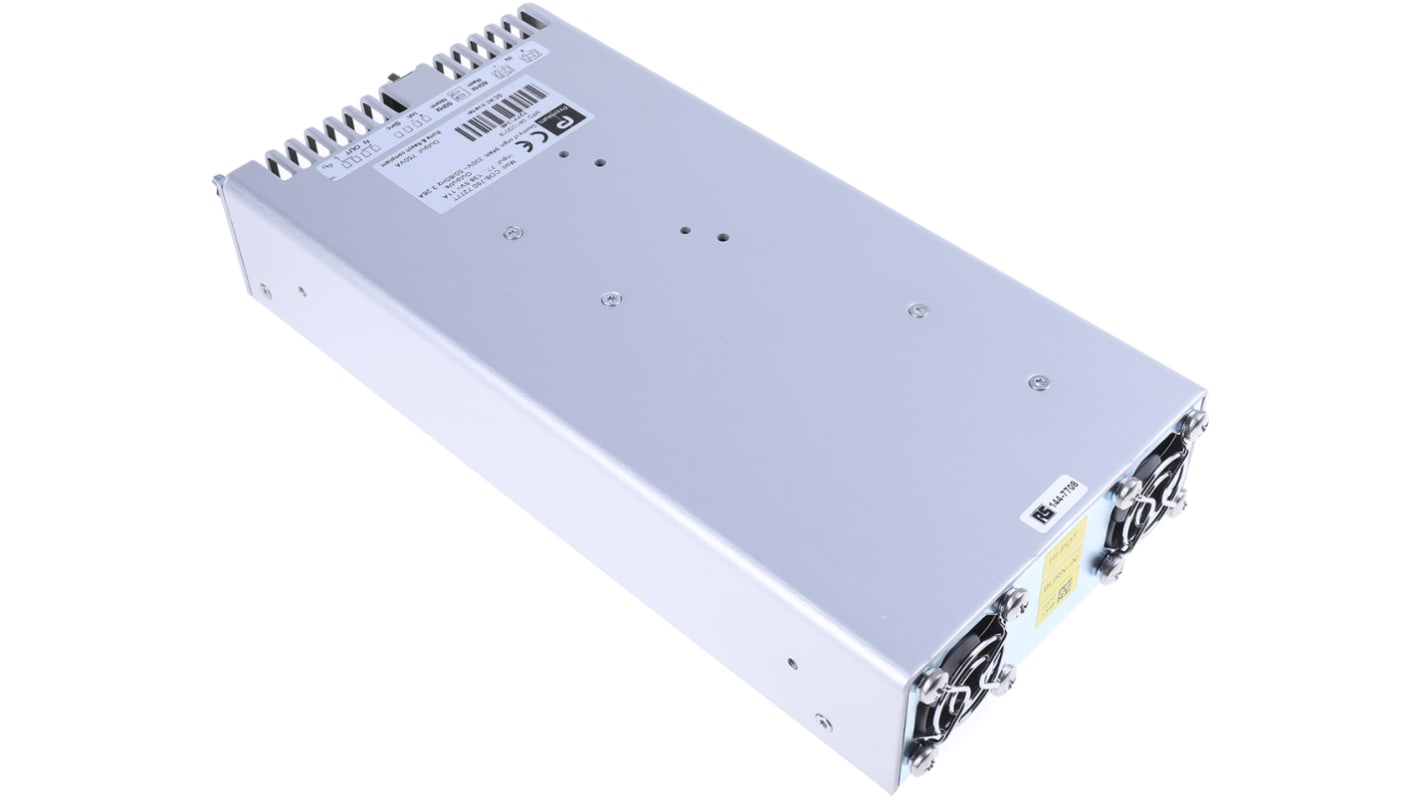

RS PRO Isolated DC-AC Converter Chassis Mount, Voltage out 230 V AC
This DC-AC inverter from RS PRO is designed to deliver instantaneous power peaks with high efficiency. It has 10 threaded holes for chassis-mounting in different positions, making it a versatile option that's suited for use in a wide range of environments.
Safety is a major consideration of the design of this isolated DC-AC converter – it features current, overload, polarity and power protection. There's also an input and output alarm and remote inhibit functionality.
This inverter is especially well-suited to railway applications and is manufactured to meet with standards EN 45545-2, EN 50121-3-2 and EN 50155, relating to the safety of electrical equipment used on railway rolling stock. It also complies with EN 60950 (safety of information technology equipment) and EN 61000-6-2 (electromagnetic immunity). The inverter is a DNV GL (Det Norske Veritas Germanischer Lloyd) maritime type-approved product, making it ideal for use in maritime situations.
Features and Benefits
• RS PRO DC-AC inverter
• Dimensions of 270.5 mm (L) x 160 mm (D) x 52.5 (W)
• Mean time between failures (MTBF) of 160,000 hours
• Chassis mounting
• Loading controlled cooling fan
• One output connection
• Pure sine wave output
• Input voltage of 77 to 138 V DC
• Maximum input current of 120 mA
• Single-phase electrical output
• Output voltage of 230 V AC
• Output current of 3.26 A
• Continuous output power of 750 W, 750 VA
• Selectable output frequency of 50 or 60 Hz
• Loading controlled cooling fan
• Minimum operating temperature of -25°C (full and half-load)
• Maximum operating temperature of +55°C (full load) or +70°C (half-load)
• High input / out isolation of 3,000 Vrms
• Input and output alarms
• Remote inhibit via RS232
• Protection features include current, overload, polarity and power protection
