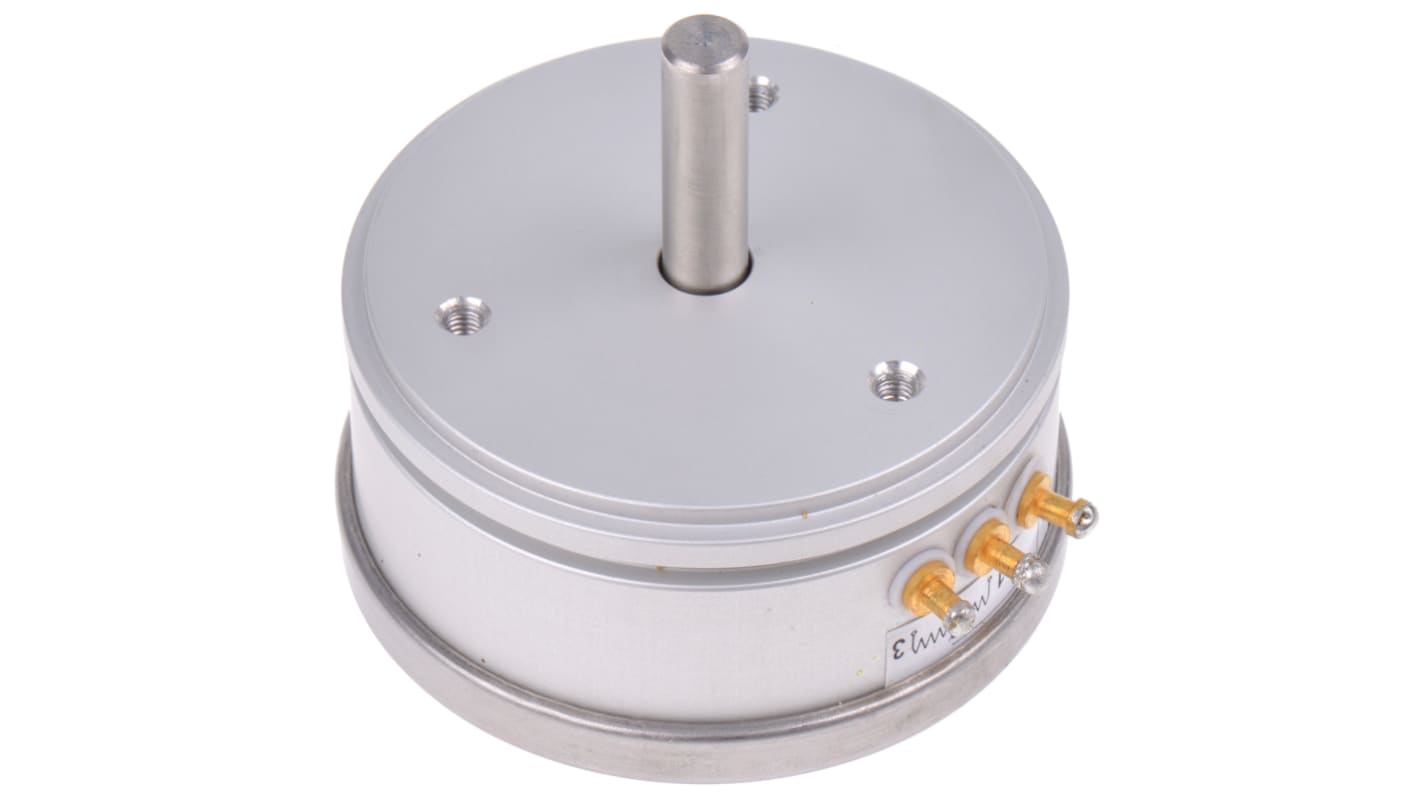

RS PRO 1kΩ Rotary Potentiometer 1-Gang Servo Mount
- RS Stock No.:
- 842-7153
- Manufacturer:
- RS PRO
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR431.62
| Units | Per Unit |
| 1 - 12 | MYR431.62 |
| 13 - 64 | MYR422.99 |
| 65 + | MYR348.12 |
- RS Stock No.:
- 842-7153
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
RS WW Series Wirewound Servo Potentiometer
This series of RS wirewound potentiometers provide a resistance range up to 10kΩ and feature an anodised aluminium precision machined body. With a rotational life of 2,000,000 shaft revolutions, these potentiometers also offer noise free output due to a precious metal wiper.
Wirewound
±10% standard resistance tolerance
360° mechanical rotation
355° electrical angle
3W power rating at 70°C
±10% standard resistance tolerance
360° mechanical rotation
355° electrical angle
3W power rating at 70°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 1kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 3W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Servo Mount |
| Termination Style | Solder |
| Shaft Length | 21.5mm |
| Shaft Diameter | 6 mm |
| Series | 50WW |
| Tolerance | ±10% |
| Actuator Type | Round Shaft |
