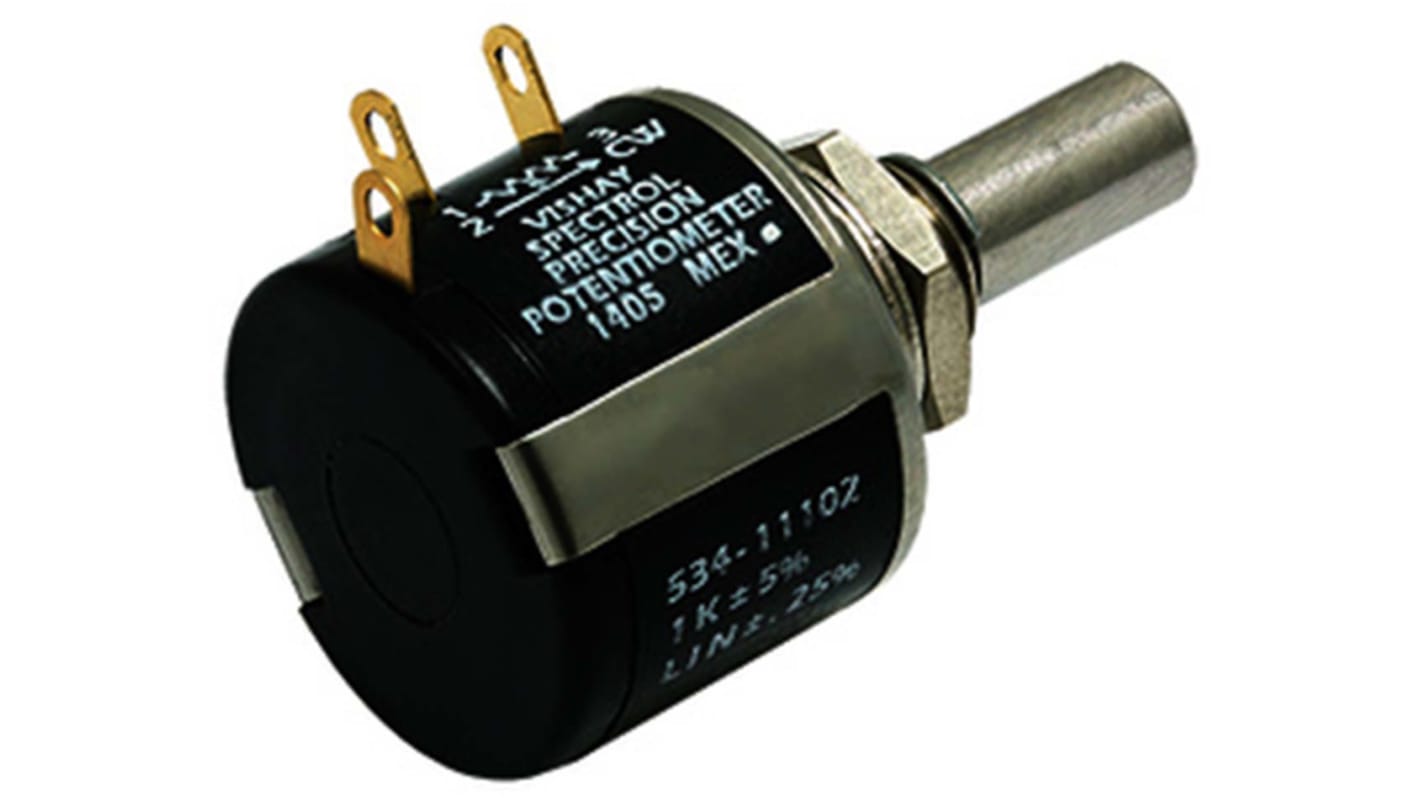

Vishay 1 Gang 10 Turn Rotary Wirewound Potentiometer with a 6 mm Dia. Shaft, 1kΩ, ±5%, 2W, Linear 534B1102JC8872

  • RS Stock No. 486-7087
  • Mfr. Part No. 534B1102JC8872
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Multi Turn Potentiometer Wirewound 22mm 2W

534 Series

Precision 10 turn wirewound potentiometers
Stainless steel end slotted shaft
Available with either Imperial (1/4in) on Metric (6mm) shaft
Glass filled thermoplastic housing
Supplied with metal lockwasher and nut
Gold plated terminals

//media.rs-online.com/t_line/LF166442-10.gif

Precision - Multi-Turn and Servo

Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 1 kΩ
Number of Gangs 1
Number of Turns 10
Power Rating 2W
Electrical Taper Linear
Element Material Wirewound
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 20.6mm
Shaft Diameter 6 mm
Tolerance ±5%
Actuator Type Slotted Shaft
Series 534
73 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 71.76
units
Per unit
1 - 9
MYR71.76
10 - 49
MYR66.24
50 - 99
MYR55.20
100 - 249
MYR49.69
250 +
MYR42.79
