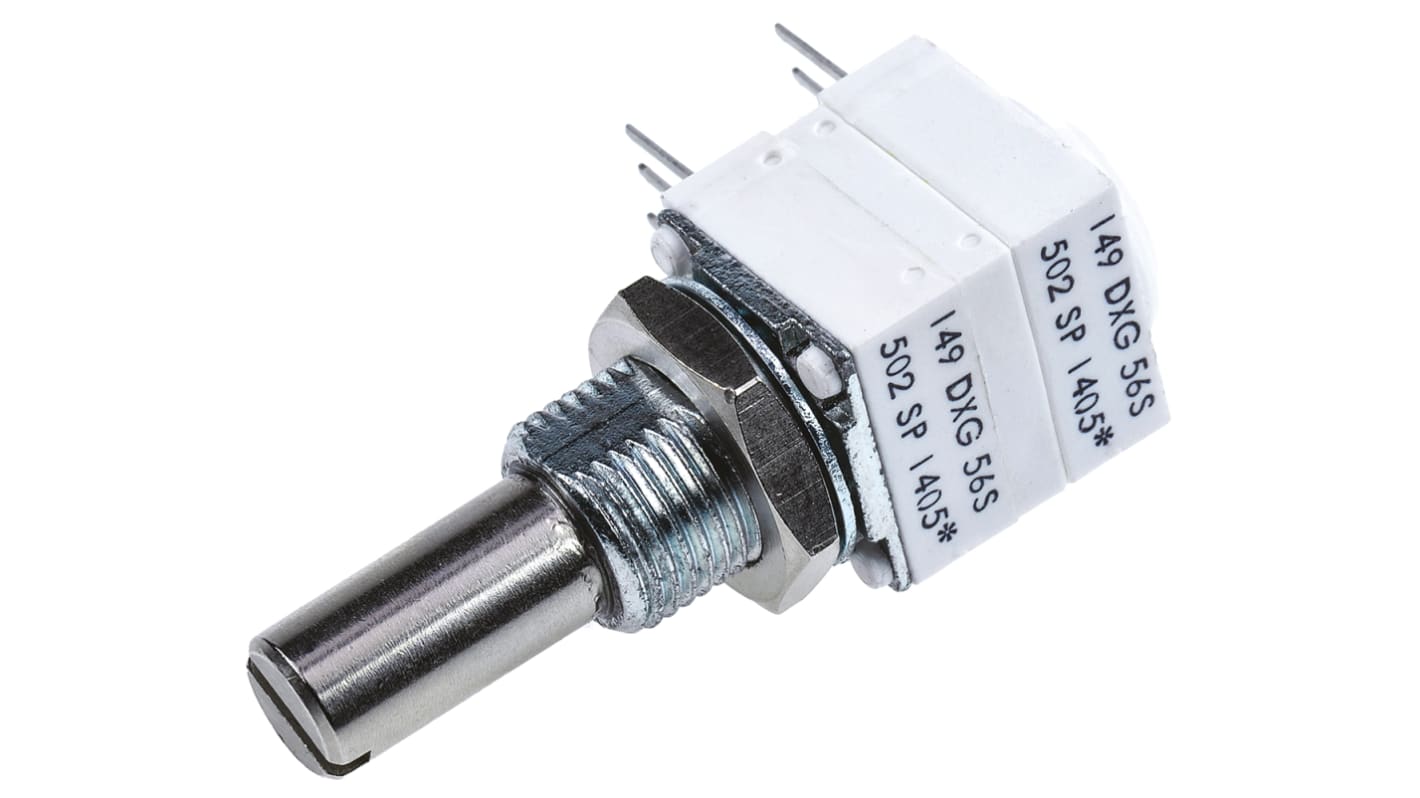

Vishay 5kΩ Rotary Potentiometer 2-Gang, Panel Mount (Through Hole), 14920F0GJSX13502KA
- RS Stock No.:
- 484-9247
- Mfr. Part No.:
- 14920F0GJSX13502KA
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 04/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR152.78
| Units | Per Unit |
| 1 - 14 | MYR152.78 |
| 15 - 29 | MYR149.57 |
| 30 + | MYR145.06 |
- RS Stock No.:
- 484-9247
- Mfr. Part No.:
- 14920F0GJSX13502KA
- Manufacturer:
- Vishay
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Vishay 149 Series Potentiometers
1/2" (12.7 mm) Conductive Plastic and Cermet Potentiometer
• Cermet element
• Low temperature coefficient (± 150 ppm/°C)
• Single turn potentiometer
• Single track, dual track or single track switched versions
• Excellent stability
• Smooth feel
• Temperature stable
• Panel and PCB mountable
• Robust construction
• Metal bush and shaft
• Common lead is pin 3 on switched products
• Robust construction
• High rotational life (50 000 cycles)
• Up to three sections PC support plates
• Rotary switches and solder lugs terminals available
• Tests according to CECC 41000 or IEC 60393-1
• Low temperature coefficient (± 150 ppm/°C)
• Single turn potentiometer
• Single track, dual track or single track switched versions
• Excellent stability
• Smooth feel
• Temperature stable
• Panel and PCB mountable
• Robust construction
• Metal bush and shaft
• Common lead is pin 3 on switched products
• Robust construction
• High rotational life (50 000 cycles)
• Up to three sections PC support plates
• Rotary switches and solder lugs terminals available
• Tests according to CECC 41000 or IEC 60393-1
Supplied with
metal lock washer and nut.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 5kΩ |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Element Material | Cermet |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | Pin |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Series | 149 |
| Actuator Type | Slotted Shaft |
| Tolerance | ±10% |
