- RS Stock No.:
- 252-0383
- Mfr. Part No.:
- RV30YN20S B303
- Manufacturer:
- Tokyo Cosmos Electric
Temporarily out of stock - back order for despatch 21/05/2024, delivery within 6 working days from despatch date
Added
Price Each
MYR44.91
| Units | Per Unit |
| 1 - 4 | MYR44.91 |
| 5 - 29 | MYR42.68 |
| 30 - 49 | MYR40.54 |
| 50 - 99 | MYR38.54 |
| 100 + | MYR36.58 |
- RS Stock No.:
- 252-0383
- Mfr. Part No.:
- RV30YN20S B303
- Manufacturer:
- Tokyo Cosmos Electric
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

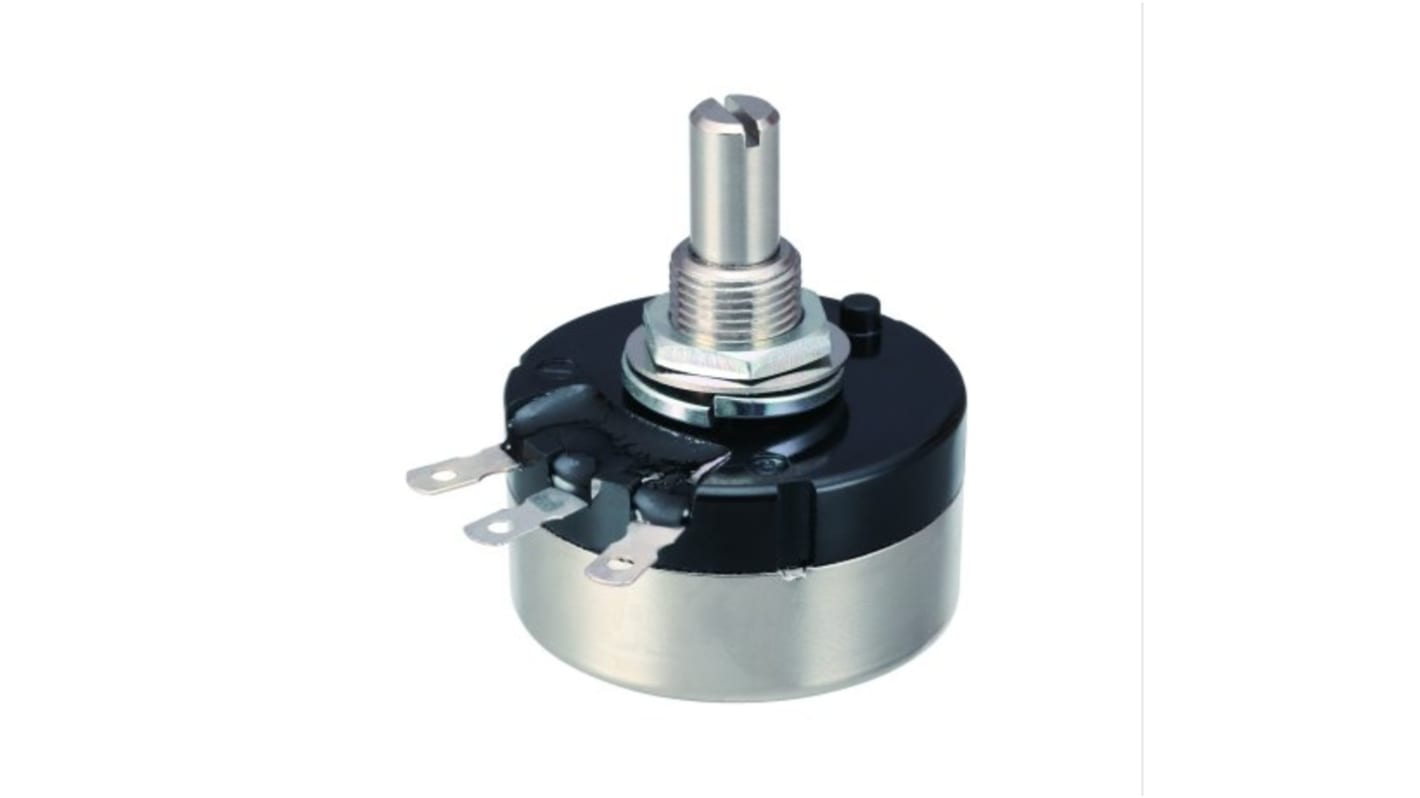

The Tokyo cosmos electric potentiometer carbon film element is 30mm diameter with single-turn used in industrial panel control.The potentiometer is variable resistor used for telecommunication applications.A variable is an electro-mechanical transducer and normally works by sliding a contact (wiper) over a resistive element.Compliant with RoHS and JIS standard.
Standard shaft length is 20mm
Contact resistance is upto 0.05 ohms
SPST or SPDT switch with 1A or 3A rating
Resistance range is between 50Ω to 2MΩ
Resistance tolerance is upto ±10%
Angle of rotation is 280°±10°
Rated voltage is upto 315V
Rated power is 0.8W
Operating temperature is -55°C to 85 °C
Torque is upto 51∼306gf.cm
Machine endurance is maximum 15000 cycles
Contact resistance is upto 0.05 ohms
SPST or SPDT switch with 1A or 3A rating
Resistance range is between 50Ω to 2MΩ
Resistance tolerance is upto ±10%
Angle of rotation is 280°±10°
Rated voltage is upto 315V
Rated power is 0.8W
Operating temperature is -55°C to 85 °C
Torque is upto 51∼306gf.cm
Machine endurance is maximum 15000 cycles
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Linear |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.8W |
