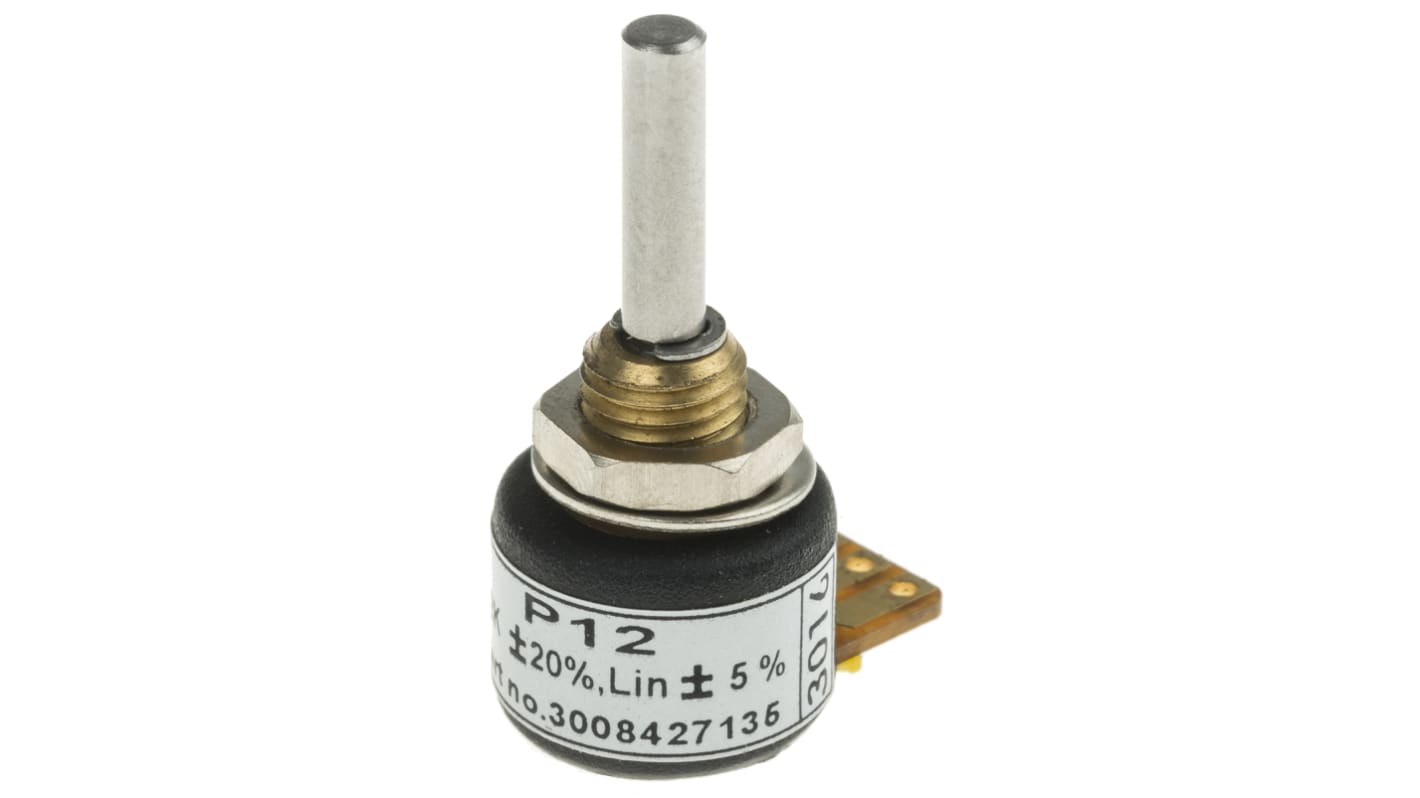

RS PRO Conductive Plastic Wirewound Potentiometer with a 3.17 mm Dia. Shaft, 2kΩ, ±20%, 0.5W

  • RS Stock No. 173-0743
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS 12mm Single Turn Conductive Plastic Potentiometers (With Stop)

This series of RS single turn potentiometers with stop provide resistance options up to 100kΩ and are constructed from conductive plastic that acts as a long life resistance element. These single turn potentiometers benefit from a sturdy low profile plastic body and offer a rotational life span of 2,000,000 revolutions.

320° mechanical rotation with stop
0.5W power rating at 70°C
±20% standard resistance tolerance

Specifications
Attribute Value
Maximum Resistance 2 kΩ
Number of Turns 1
Power Rating 0.5W
Element Material Conductive Plastic
Mounting Type Panel Mount
Termination Style Solder
Shaft Length 19mm
Shaft Diameter 3.17 mm
Tolerance ±20%
Series P12
Temporarily out of stock - back order for despatch 29/04/2020, delivery within 4 working days from despatch date
Price Each (In a Box of 50)
MYR 20.411
units
Per unit
Per Box*
50 +
MYR20.411
MYR1,020.55
*price indicative
