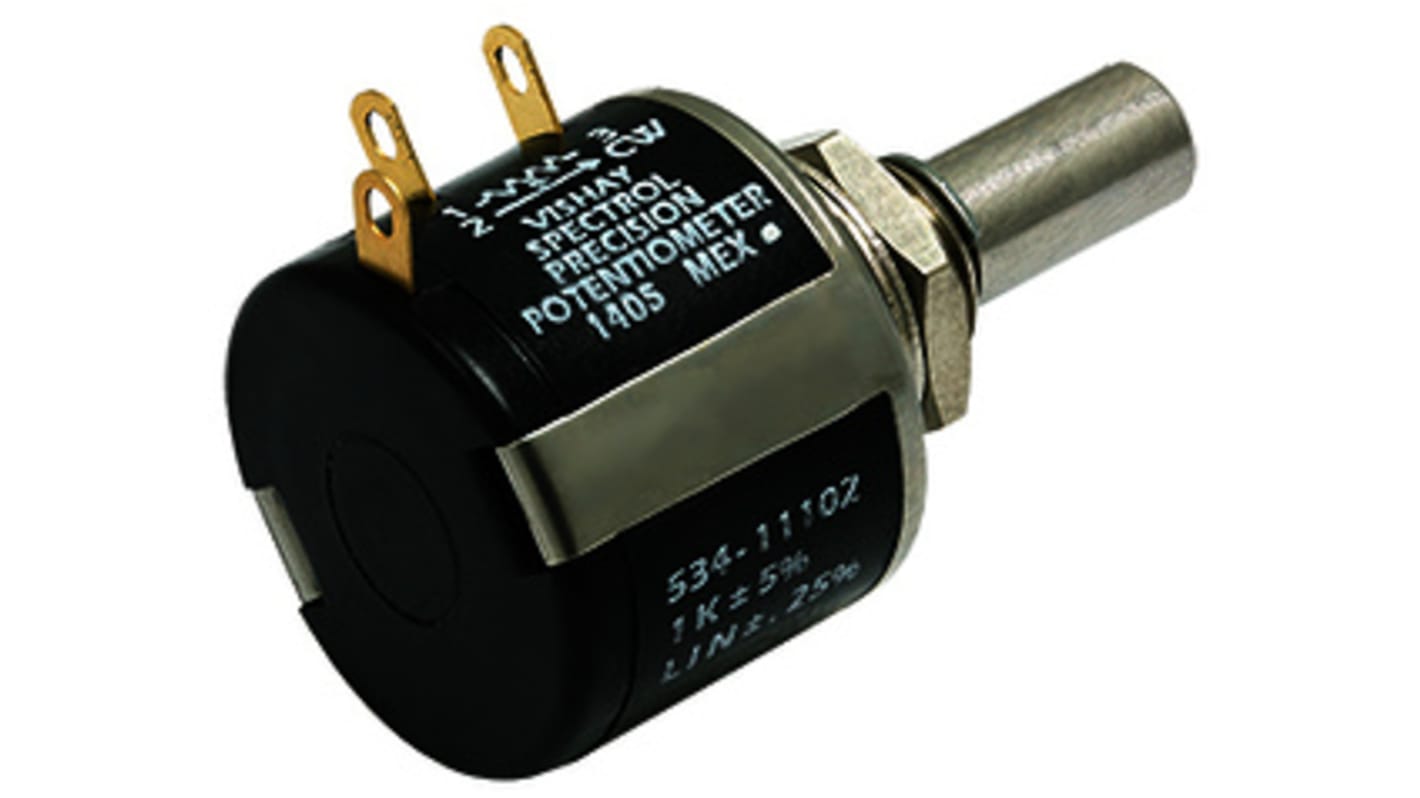

Vishay 1kΩ Rotary Potentiometer 10-Turns 1-Gang Panel Mount, 534B1102JL
- RS Stock No.:
- 167-9486
- Mfr. Part No.:
- 534B1102JL
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 12/12/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Box of 10)
MYR176.384
| Units | Per Unit | Per Box* |
| 10 - 40 | MYR176.384 | MYR1,763.84 |
| 50 + | MYR145.164 | MYR1,451.64 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 167-9486
- Mfr. Part No.:
- 534B1102JL
- Manufacturer:
- Vishay
Legislation and Compliance
Product Details
7/8 in. 10 Turn 534 Series Potentiometers
A comprehensive selection of 7/8 inch (22.2 mm) 10 turn, 534 series linear panel mount potentiometers from Vishay. This potentiometer range features 100 Ω to 100 kΩ versions with 2W power handling, and 5% tolerance. These durable 534 Series potentiometers are rated at one million lifecycles and are suitable for industrial control applications, medical instruments, wire cutting machines, and welding machines.
Features and Benefits:
Wirewound element
Stainless steel end slotted shaft
Bushing mount design, sleeve bearing type
Wide range available 100 Ω to 100 kΩ resistance
Ten turns, with 5% tolerance
2W power rating
Dual gang configuration and concentric shafts
Supplied with metal lock washer and nut
Stainless steel end slotted shaft
Bushing mount design, sleeve bearing type
Wide range available 100 Ω to 100 kΩ resistance
Ten turns, with 5% tolerance
2W power rating
Dual gang configuration and concentric shafts
Supplied with metal lock washer and nut
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Precision - Multi-Turn and Servo
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 1kΩ |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power Rating | 2W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Shaft Length | 20.6mm |
| Shaft Diameter | 6.35 mm |
| Actuator Type | Slotted Shaft |
| Series | 534 |
| Tolerance | ±5% |
