MPN

SMC Vacuum Filter - ZFC Series, 10 μm, 6 mm Port Connection

Subtotal (1 unit)*

MYR91.61

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	MYR91.61

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Port Size	6 mm
	Product Type	Vacuum Filter
	Filtration Size	10μm
	Connection Thread Standard	Metric
	Series	ZFC
	Housing Material	Resin Polybutylene
	Maximum Flow Rate	20L/min
	Seal Material	Hydrogenated Nitrile Rubber
	Element Material	Sintered Resin
	Overall Length	53.9mm
	Maximum Operating Pressure	10 bar
	Maximum Operating Temperature	60°C
	Minimum Operating Pressure	-1bar
	Minimum Operating Temperature	0°C
	Standards/Approvals	RoHS
	Overall Height	33.4mm
	Overall Width	23mm

	Select all
	Brand SMC
	Port Size 6 mm
	Product Type Vacuum Filter
	Filtration Size 10μm
	Connection Thread Standard Metric
	Series ZFC
	Housing Material Resin Polybutylene
	Maximum Flow Rate 20L/min
	Seal Material Hydrogenated Nitrile Rubber
	Element Material Sintered Resin
	Overall Length 53.9mm
	Maximum Operating Pressure 10 bar
	Maximum Operating Temperature 60°C
	Minimum Operating Pressure -1bar
	Minimum Operating Temperature 0°C
	Standards/Approvals RoHS
	Overall Height 33.4mm
	Overall Width 23mm

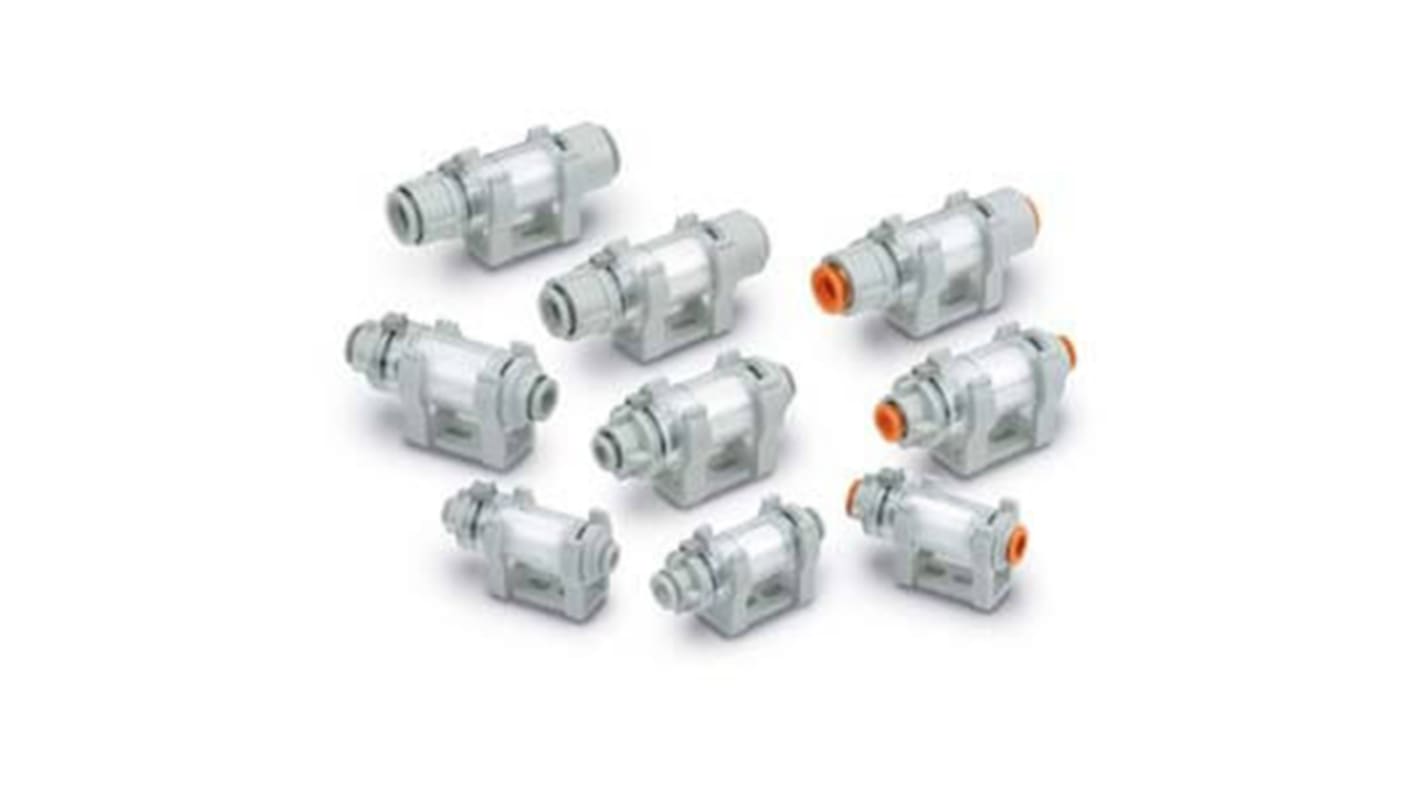

The SMC In-line air filter with one-touch fitting has applicable tube outer diameter 4mm. It has wide range of applicable tubing.

Lock mechanism

Easy piping

Interchangeability

Flexible mounting orientation

Lightweight

Variety of colours for an easy visualization
