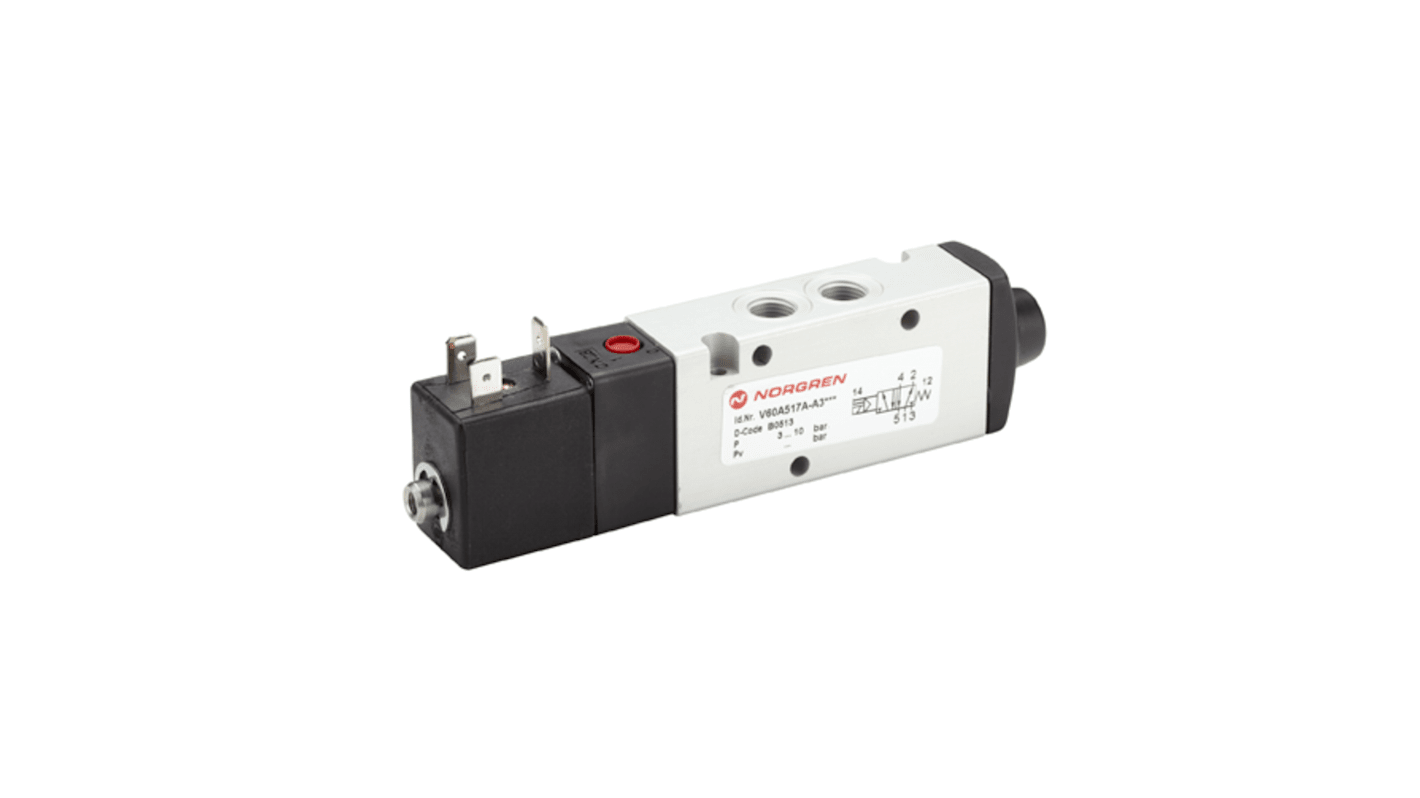

Norgren Pneumatic Solenoid Valve - Solenoid/Spring G V60 Series 24 V
- RS Stock No.:
- 218-0324
- Mfr. Part No.:
- V60A517A-A313J
- Manufacturer:
- Norgren
Bulk discount available
Subtotal (1 unit)*
MYR786.54
FREE delivery for orders over RM 500.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR786.54 |
| 10 + | MYR770.82 |
*price indicative
- RS Stock No.:
- 218-0324
- Mfr. Part No.:
- V60A517A-A313J
- Manufacturer:
- Norgren
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 to 1/2 in | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid/Spring | |
| Voltage | 24 V | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | V60 | |
| Mount Type | In Line Mount | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Operating Temperature | -10°C | |
| Minimum Pilot Pressure | 1bar | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 2W | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Electrical Connection Type | Industrial Standard | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 to 1/2 in | ||
Connection Thread Standard G | ||
Actuation Type Solenoid/Spring | ||
Voltage 24 V | ||
Seal Material Nitrile Rubber (NBR) | ||
Series V60 | ||
Mount Type In Line Mount | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Operating Temperature -10°C | ||
Minimum Pilot Pressure 1bar | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 2W | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Electrical Connection Type Industrial Standard | ||
- COO (Country of Origin):
- CZ
The IMI Norgren V60 series of 5/2 directional control valves offer high flow rates at a small size, requiring minimal installation space, with a manifold system for easy assembly. The solenoid valves are maintenance free, with a proven sealing system, and
Low power consumption
Operating pressure ranges of 3 to 10 bar
V60-63 series of solenoid valves benefit from a long life and maintenance free with extensive switching cycles
