Norgren G 3/4 Pneumatic Regulator - 0.3bar to 10bar, 3/4in, 20bar max. input
- RS Stock No.:
- 267-9361
- Mfr. Part No.:
- R74G-6GK-RMN
- Manufacturer:
- Norgren
39 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR936.05
| Units | Per Unit |
| 1 + | MYR936.05 |
- RS Stock No.:
- 267-9361
- Mfr. Part No.:
- R74G-6GK-RMN
- Manufacturer:
- Norgren
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Product Details

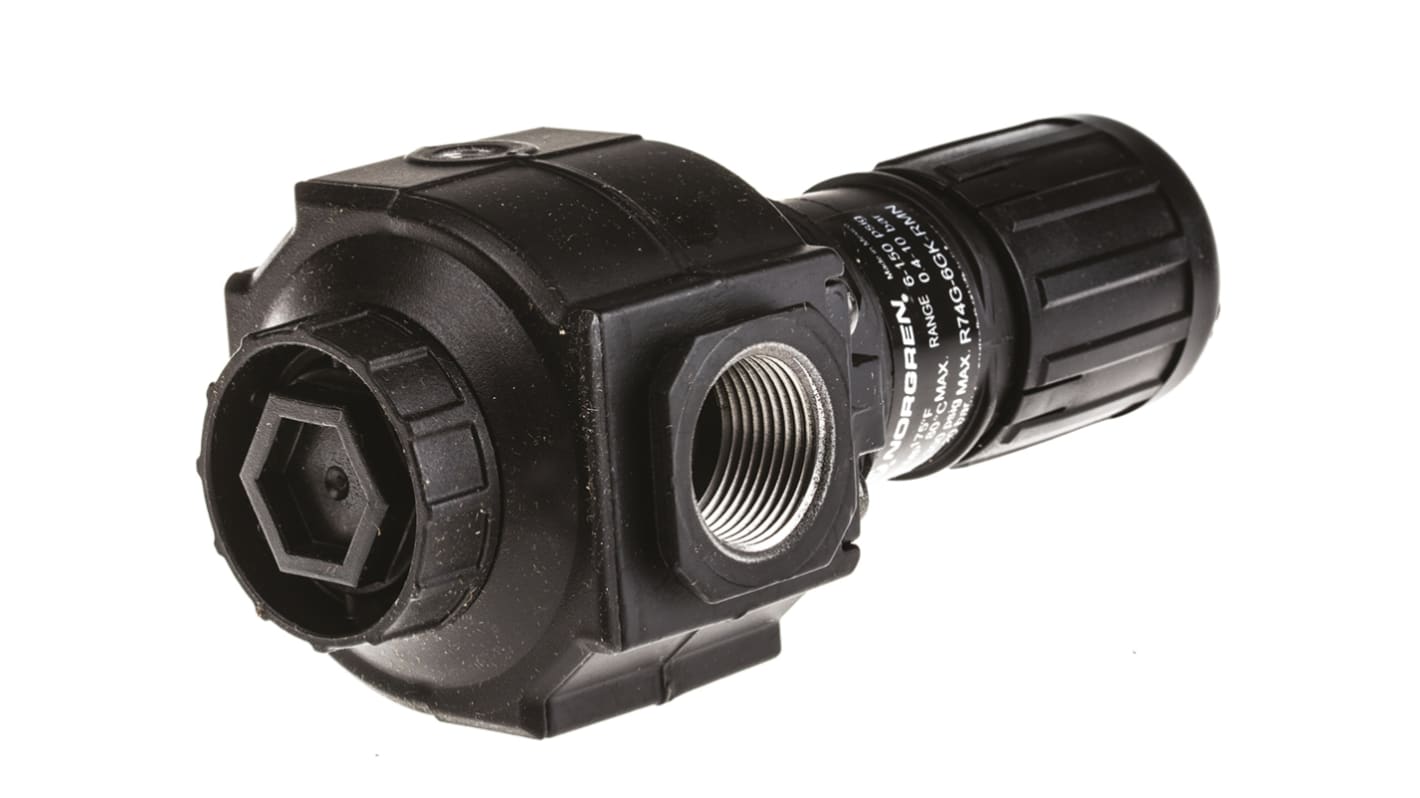

IMI Norgren R74G Pneumatic Regulator, G 3/4, 0.3 to 10 bar, Excelon Series - R74G-6GK-RMN
If you need to maintain constant output air pressure in your compressed air system, then this Norgren 74G pressure regulator is an ideal choice. It uses a balanced valve design for optimum pressure control. You can use this regulator unit in operating temperatures of -34°C to +80°C, so it’s well suited for use in harsh industrial applications.
Features and Benefits:
• Comes with a push-to-lock adjusting knob
• Can be installed in-line or modular due to Excelon design
• Die-cast aluminium body for enhanced durability
• Designed for use with compressed air
• Can be installed in-line or modular due to Excelon design
• Die-cast aluminium body for enhanced durability
• Designed for use with compressed air
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 3/4 |
| Maximum Outlet Pressure | 10bar |
| Minimum Outlet Pressure | 0.3bar |
| Maximum Input Pressure | 20bar |
| Manufacturer Series | R74G |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 3/4 in |
| Pressure Gauge Port Thread Size | 1/8 in |
| Maximum Flow Rate | 105L/s |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -34°C |
| Maximum Operating Temperature | +80°C |
| Pressure Gauge Port Thread Standard | Rc |
