- RS Stock No.:
- 202-2058
- Mfr. Part No.:
- MS4-LR-1/4-D5-AS-Z
- Manufacturer:
- Festo
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR333.63
Units | Per Unit |
1 + | MYR333.63 |
- RS Stock No.:
- 202-2058
- Mfr. Part No.:
- MS4-LR-1/4-D5-AS-Z
- Manufacturer:
- Festo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

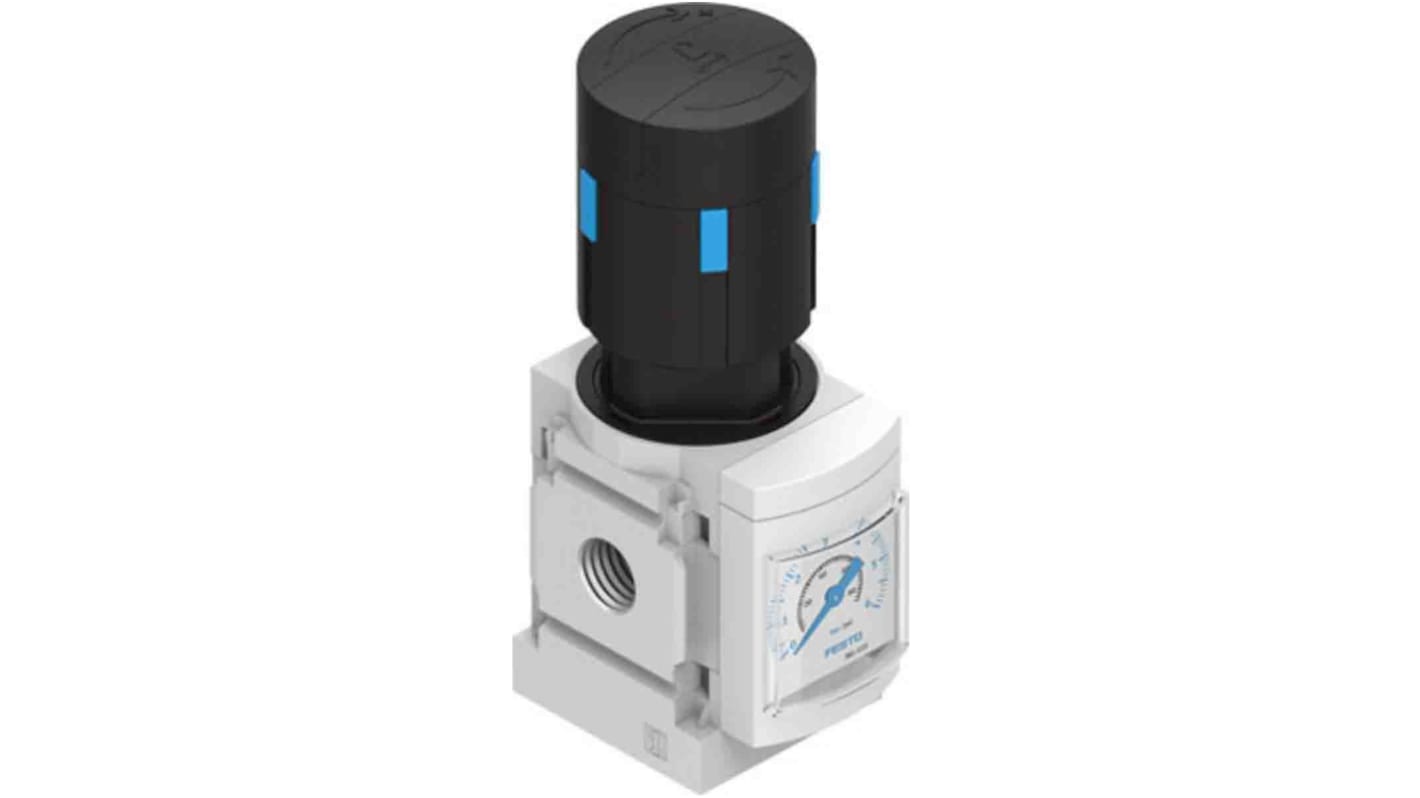

The Festo MS series pressure regulator has a G1/4 pneumatic port connecting thread with lockable regulator head. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 4 bar.
Direction of flow - from right to left
Assembly position - any
Size - 4
Assembly position - any
Size - 4
Specifications
Attribute | Value |
---|---|
Port Connection | G 1/4 |
Maximum Outlet Pressure | 4bar |
Minimum Outlet Pressure | 0.3bar |
Maximum Input Pressure | 14bar |
Manufacturer Series | MS |
Typical Flow Rate | 2100L/min |
Model Number p | 529416 |
