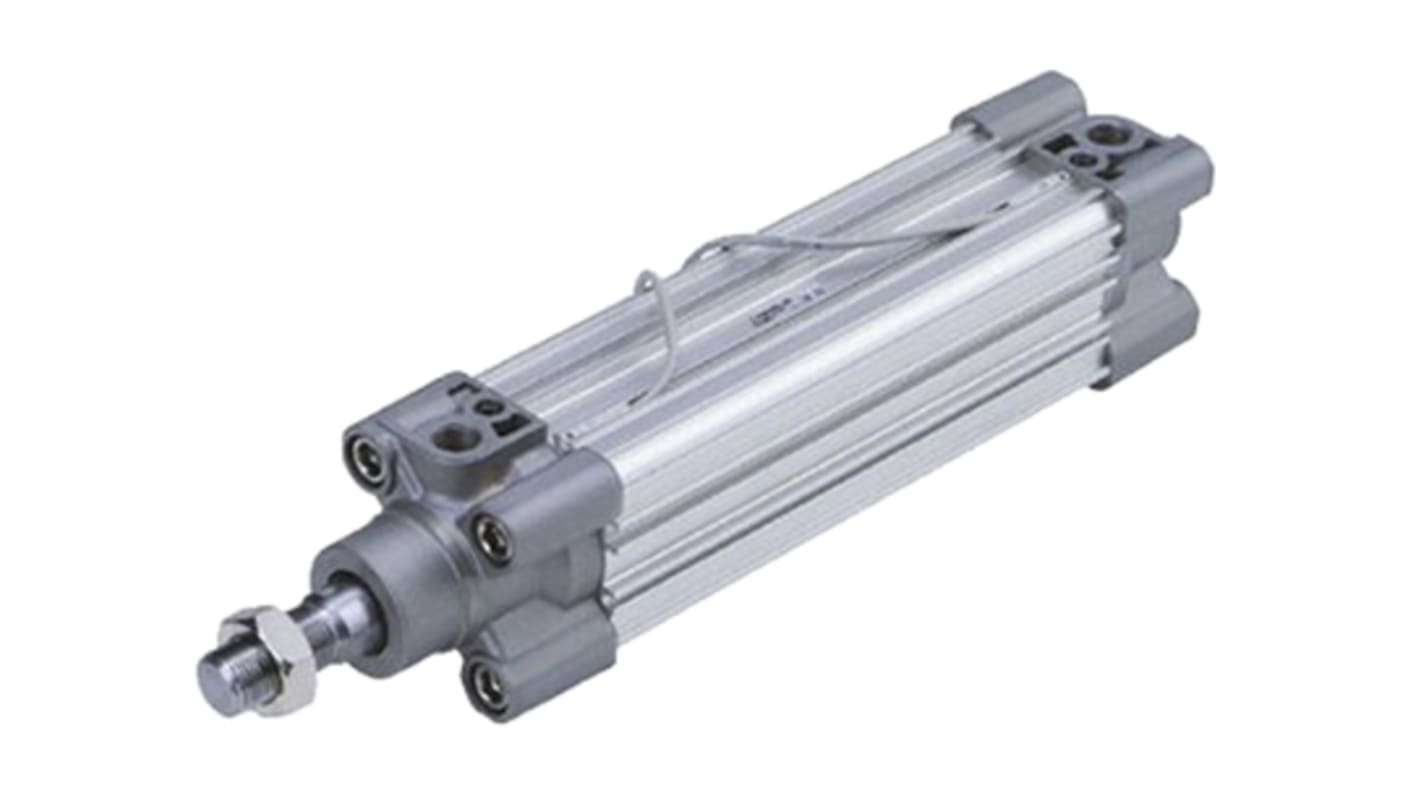

SMC Pneumatic Piston Rod Cylinder - 80mm Bore, 160mm Stroke, CP96 Series, Double Acting
- RS Stock No.:
- 917-8761
- Mfr. Part No.:
- CP96SDB80-160C
- Manufacturer:
- SMC
Subtotal (1 unit)*
MYR1,177.10
FREE delivery for orders over RM 500.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 17 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,177.10 |
*price indicative
- RS Stock No.:
- 917-8761
- Mfr. Part No.:
- CP96SDB80-160C
- Manufacturer:
- SMC
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Manufacturer Series | CP96 | |
| Stroke | 160mm | |
| Action | Double | |
| Bore | 80mm | |
| Port Connection | G 3/8 | |
| Cushioning Type | Air | |
| Dimensions | 418 x 99 x 99mm | |
| Height | 99mm | |
| Width | 99mm | |
| Length | 418mm | |
| Maximum Operating Pressure | 1 MPa | |
| Absolute Maximum Pressure | 1.5MPa | |
| ISO Standard | 4414 | |
| Stroke Interval Weight | 0.49 kg @ 50 mm Stroke | |
| Weight | 4.5kg | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Manufacturer Series CP96 | ||
Stroke 160mm | ||
Action Double | ||
Bore 80mm | ||
Port Connection G 3/8 | ||
Cushioning Type Air | ||
Dimensions 418 x 99 x 99mm | ||
Height 99mm | ||
Width 99mm | ||
Length 418mm | ||
Maximum Operating Pressure 1 MPa | ||
Absolute Maximum Pressure 1.5MPa | ||
ISO Standard 4414 | ||
Stroke Interval Weight 0.49 kg @ 50 mm Stroke | ||
Weight 4.5kg | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
