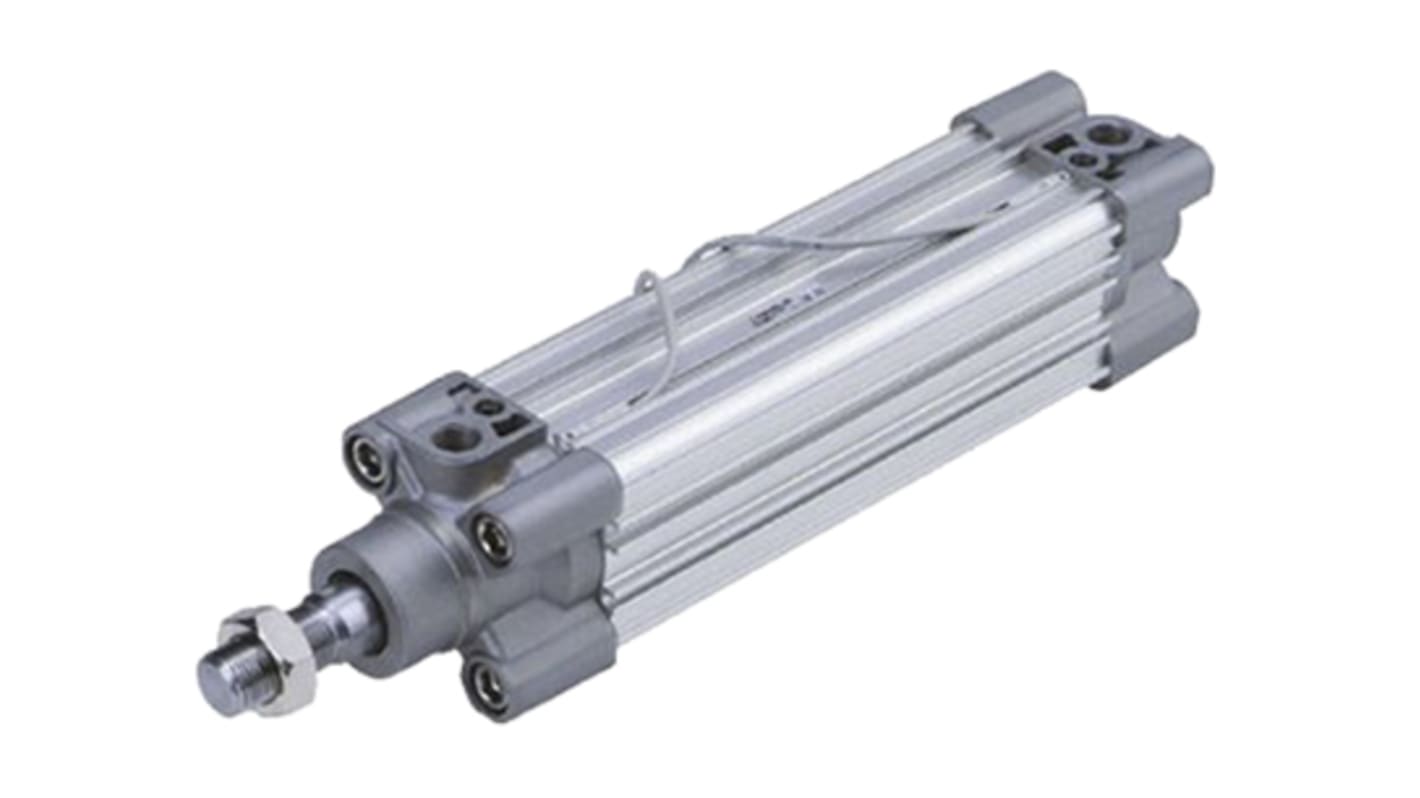

SMC Pneumatic Piston Rod Cylinder - 50mm Bore, 400mm Stroke, CP96 Series, Double Acting
- RS Stock No.:
- 917-8714
- Mfr. Part No.:
- CP96SDB50-400C
- Manufacturer:
- SMC
Subtotal (1 unit)*
MYR860.93
FREE delivery for orders over RM 500.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 17 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR860.93 |
*price indicative
- RS Stock No.:
- 917-8714
- Mfr. Part No.:
- CP96SDB50-400C
- Manufacturer:
- SMC
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Manufacturer Series | CP96 | |
| Action | Double | |
| Stroke | 400mm | |
| Bore | 50mm | |
| Port Connection | G 1/4 | |
| Cushioning Type | Air | |
| Dimensions | 579 x 66 x 66mm | |
| Length | 579mm | |
| Width | 66mm | |
| Height | 66mm | |
| Absolute Maximum Pressure | 1.5MPa | |
| Maximum Operating Pressure | 1 MPa | |
| ISO Standard | 4414 | |
| Weight | 4.1kg | |
| Stroke Interval Weight | 0.3 kg @ 50 mm Stroke | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Manufacturer Series CP96 | ||
Action Double | ||
Stroke 400mm | ||
Bore 50mm | ||
Port Connection G 1/4 | ||
Cushioning Type Air | ||
Dimensions 579 x 66 x 66mm | ||
Length 579mm | ||
Width 66mm | ||
Height 66mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
ISO Standard 4414 | ||
Weight 4.1kg | ||
Stroke Interval Weight 0.3 kg @ 50 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
