RS PRO Pneumatic Fitting Nickel Plated Push-in Push-in
- RS Stock No.:
- 916-0820
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
MYR169.67
FREE delivery for orders over RM 150.00
In Stock
- 1,540 unit(s) ready to ship from another location
- Plus 600 unit(s) shipping from 01 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | MYR16.967 | MYR169.67 |
| 50 + | MYR13.964 | MYR139.64 |
*price indicative
- RS Stock No.:
- 916-0820
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Fitting | |
| Connection Type A | Push-in | |
| Connection Type B | Push-in | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Pressure | 10 bar | |
| Finish | Nickel Plated | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Fitting | ||
Connection Type A Push-in | ||
Connection Type B Push-in | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Pressure 10 bar | ||
Finish Nickel Plated | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

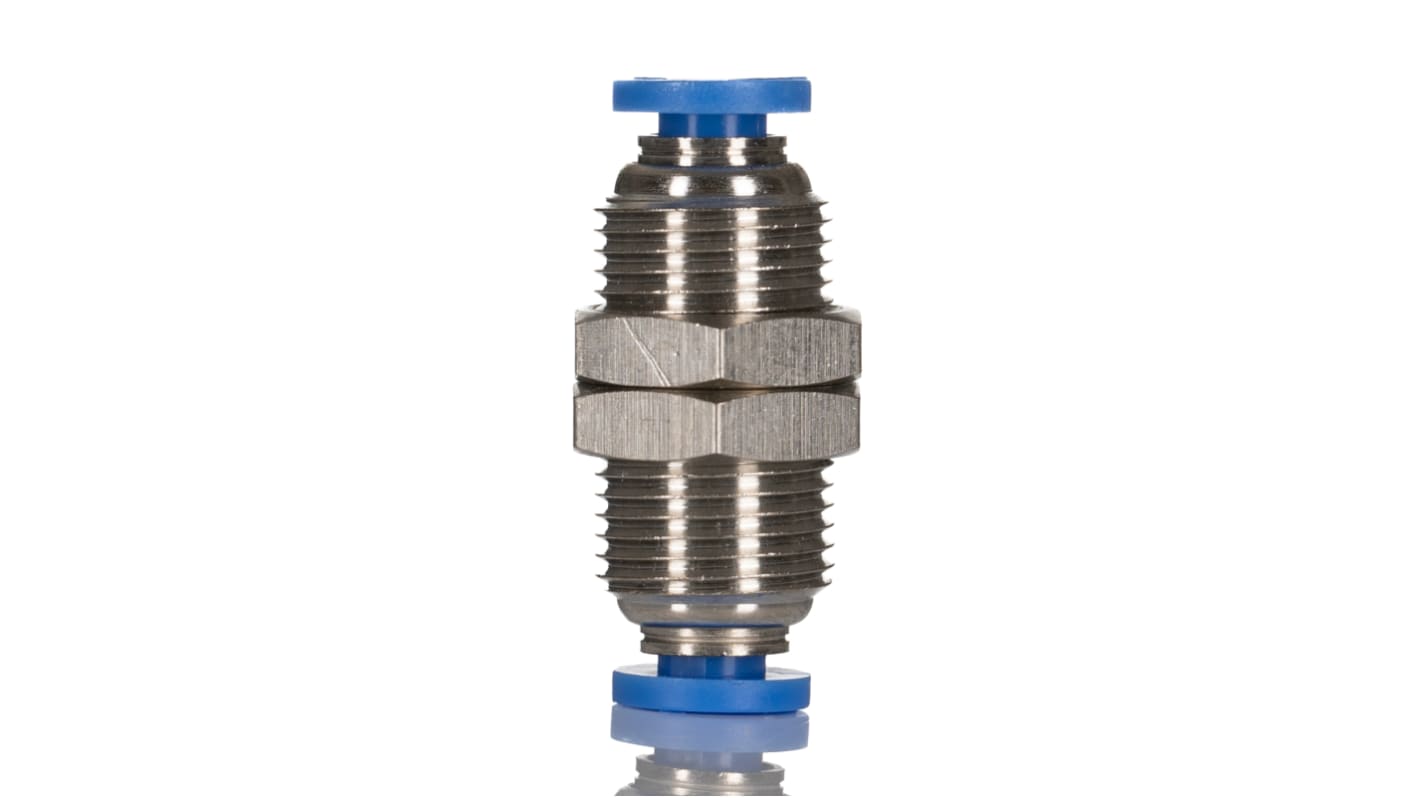

RS PRO Pneumatic Bulkhead Tube-to-Tube Adapter Straight Push-In 4 mm to Push-In 4 mm
When you need an easy-to-use adapter for pneumatic piping, turn to this pneumatic bulkhead tube-to-tube adapter from the RS PRO range. It offers a one-touch push-to-connect configuration for tubes measuring 4 mm in diameter.
The adapter is made from nickel-plated brass for durability and resistance to corrosion. It has a six-angle wrench that's suitable for piping in confined spaces, and the push-on design includes Teflon-coated threads or O-Rings to ensure a tight, secure fit. It's suitable for pressures of up to 10 bar and is safe for operation between temperatures of 0°C and +60°C. It's easy to disconnect by simply pushing the polyoxymethylene (POM) sleeve and removing the tube.
This pneumatic bulkhead tube-to-tube adapter is suitable for nylon or polyurethane tubing. You'll often find it used in gas cylinders, air motors or compressors thanks to its high-pressure capabilities.
Features and Benefits
• Pneumatic bulkhead tube-to-tube adapter
• Push-in 4 mm to push-in 4 mm tube connection
• Straight shape
• Operating temperature range of 0°C to +60°C
• Nickel-plated brass body material
• Maximum operating pressure of 10 bar
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
