SMC KDM Series
- RS Stock No.:
- 245-3096
- Mfr. Part No.:
- KDM10-06
- Manufacturer:
- SMC
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR569.05
| Units | Per Unit |
| 1 - 5 | MYR569.05 |
| 6 + | MYR557.10 |
- RS Stock No.:
- 245-3096
- Mfr. Part No.:
- KDM10-06
- Manufacturer:
- SMC
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

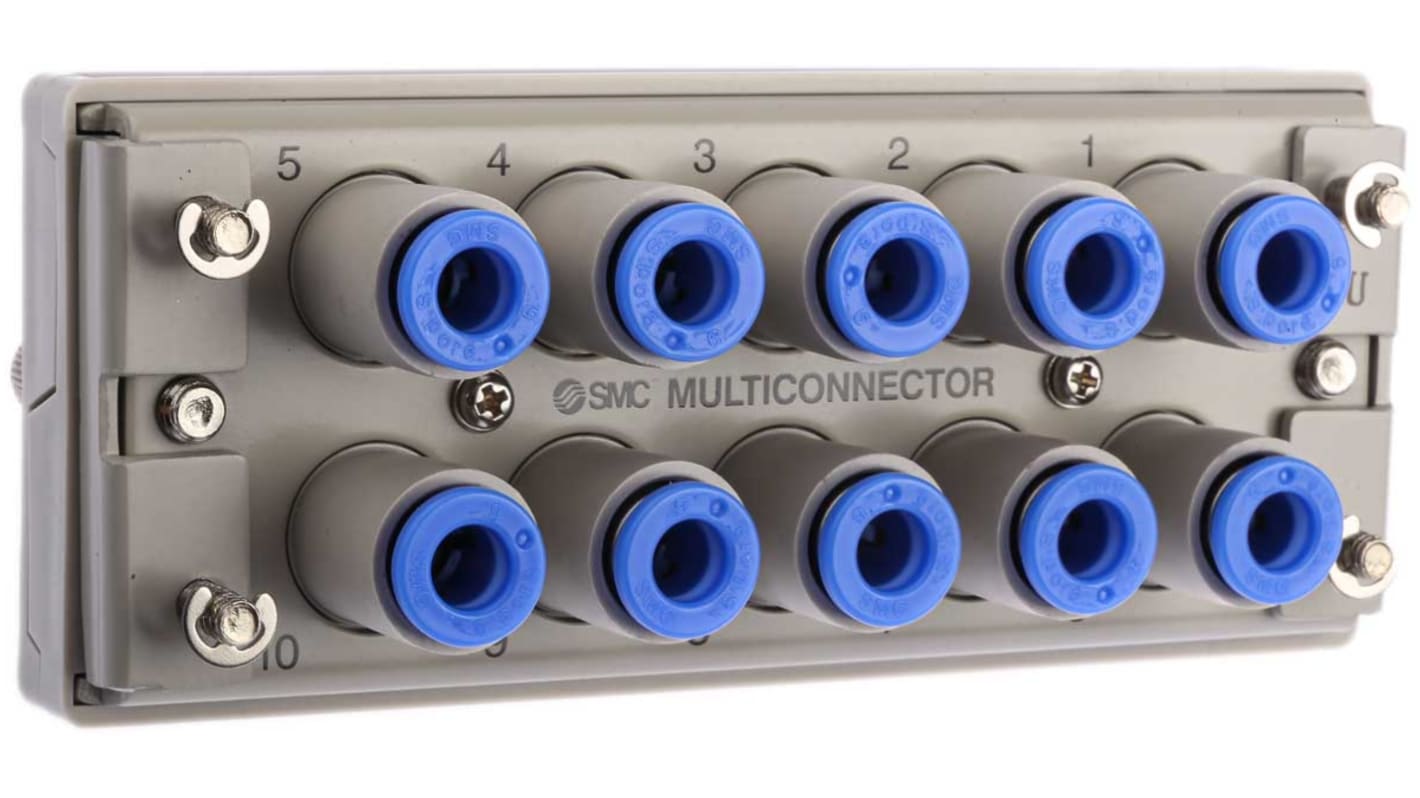

SMC KD Series 10 Way Multi-Connector for 6mm Tube
The SMC KDM10-06 One-Touch Multi Connector is a versatile and easy-to-use pneumatic fitting that allows for quick and secure connections between multiple tubes. It is typically used in industrial applications where compressed air or other gases need to be distributed to multiple machines or components.
The KDM10-06 One-Touch Multi Connector has 10 ports, each of which can accommodate a tube with an outer diameter of 6mm. It is constructed from high-quality materials, including a nickel plated brass body and stainless steel release rings, which ensure excellent durability and resistance to wear and tear.
The KDM10-06 connector features a unique "one-touch" design that allows for quick and easy connections without the need for specialist tooling. Simply push the tube into the connector, and it will automatically lock into place, creating a secure and reliable connection.
Key Features and Benefits
- Robust and reliable
- Compact and lightweight
- Easy to install
- Time saving
- Suitable for use with Nylon, soft nylon and polyurethane 6mm tube
Specifications
Attribute | Value |
|---|---|
| Manufacturer Series | KDM |
| Outlet Port | Push In 6 mm |
| Number of Outlet Ports | 10 |
| Maximum Operating Pressure | 1 MPa |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
