Subtotal (1 pack of 10 units)*
MYR150.28
FREE delivery for orders over RM 150.00
In Stock
- Plus 720 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | MYR15.028 | MYR150.28 |
*price indicative
- RS Stock No.:
- 176-1278
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | 1/4 in | |
| Connection Size A | G 1/4 Male | |
| Connection Thread Standard | G | |
| Connection Type | Threaded-to-Tube | |
| Connection Size B | Push In 6 mm | |
| Series | RS PRO | |
| Connection Gender | Male | |
| Tube Connection Size | 6mm | |
| Tube Connection Type | Push-in | |
| Material | Brass | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 14743:2004, 1907/2006 REACH, PED 2014/68/UE | |
| Finish | Nickel | |
| Maximum Operating Pressure | 20 bar | |
| Food Grade | No | |
| Chemical Resistant | Yes | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size 1/4 in | ||
Connection Size A G 1/4 Male | ||
Connection Thread Standard G | ||
Connection Type Threaded-to-Tube | ||
Connection Size B Push In 6 mm | ||
Series RS PRO | ||
Connection Gender Male | ||
Tube Connection Size 6mm | ||
Tube Connection Type Push-in | ||
Material Brass | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 14743:2004, 1907/2006 REACH, PED 2014/68/UE | ||
Finish Nickel | ||
Maximum Operating Pressure 20 bar | ||
Food Grade No | ||
Chemical Resistant Yes | ||
- COO (Country of Origin):
- IT

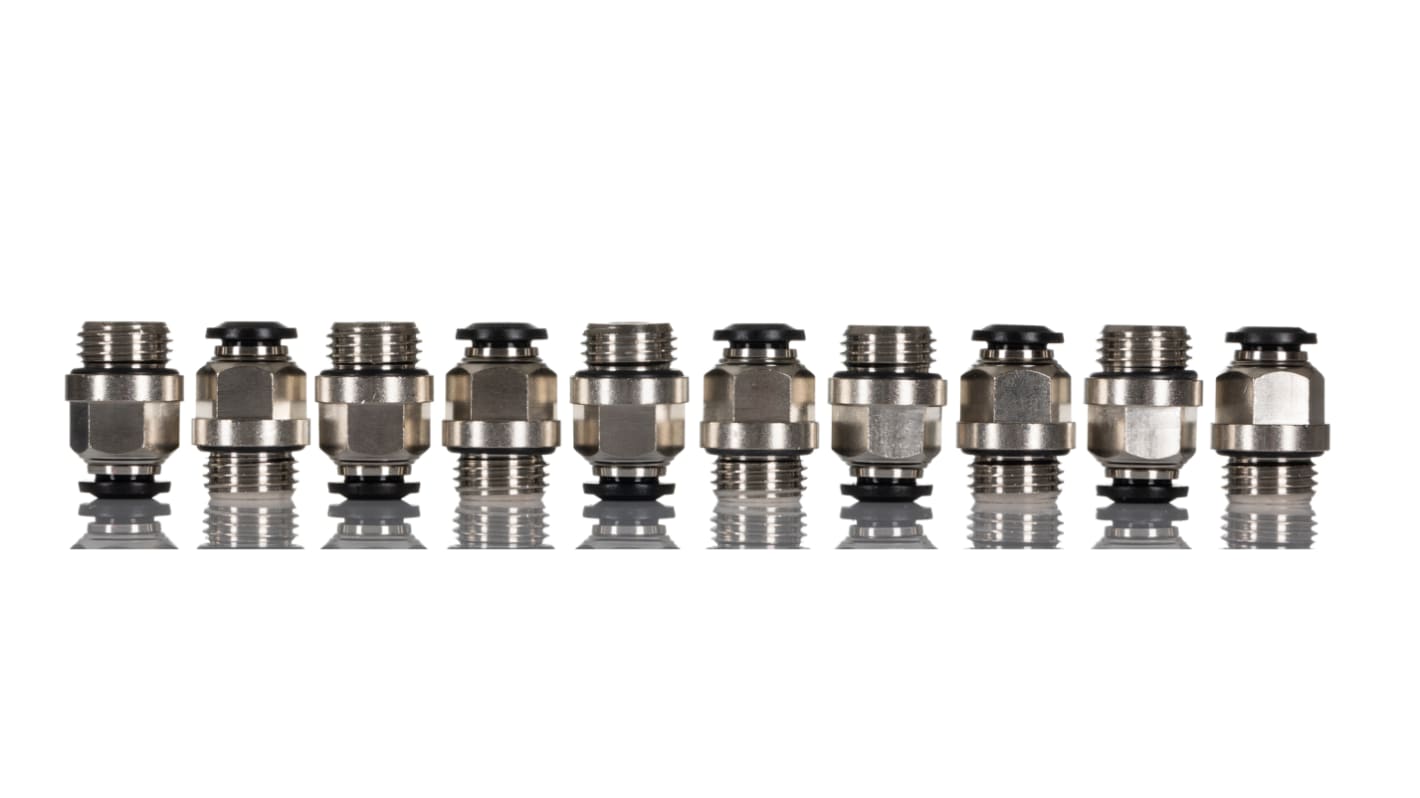

RS PRO Threaded-to-Tube Pneumatic Fitting G 1/4 to Push-in 6 mm, 20 bar
A useful component for connecting and disconnecting parts in a pneumatic system, this RS PRO pneumatic fitting has one threaded end and one push-in end to ensure secure connections.
This product is made from brass with a nickel-plated finish to make it highly resistant to wear and impact. Contributing further to its reliability, the component also includes fitted seals that ensure a perfect vacuum and prevent any loss of pressure. The component is well-suited for a variety of different environments thanks to its wide operating temperature range of -20°C to +80°C.
The pneumatic fitting has been tested extensively to meet RS PRO's strict standards for safety and quality and also has European PED and international ISO certifications for pressurised-system components. It's used in industrial pneumatics, robotics and water-treatment applications, as well as engine cylinders and other automotive equipment.
Features and Benefits
• Pneumatic fitting
• Threaded connector, diameter of 1/4 inch (G 1/4)
• Push-in connector, diameter of 6 mm
• Inline mounting
• Made of brass, nickel-plated
• Operating pressure range of 20 bar
• Operating temperature range of -20°C to +80°C
