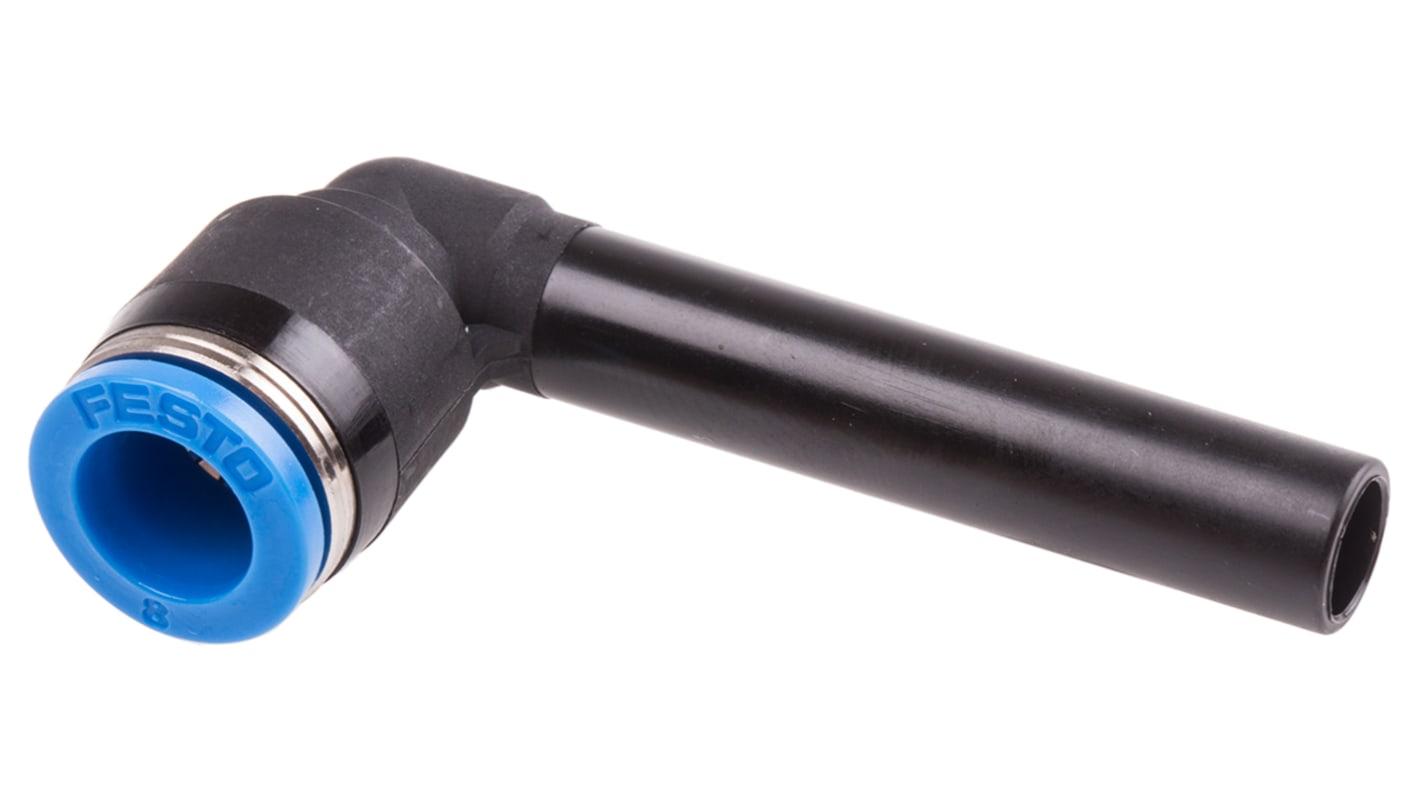

Festo QSL Series Elbow Tube-toTube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, 153067
- RS Stock No.:
- 121-6119
- Mfr. Part No.:
- QSL-8HL
- Manufacturer:
- Festo
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 10
MYR361.19
| Bag(s) | Per Bag | Per Unit* |
| 1 - 4 | MYR361.19 | MYR36.119 |
| 5 - 9 | MYR351.09 | MYR35.109 |
| 10 + | MYR336.65 | MYR33.665 |
| *price indicative | ||
- RS Stock No.:
- 121-6119
- Mfr. Part No.:
- QSL-8HL
- Manufacturer:
- Festo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FESTO QSL Tube to Tube Elbow Push in Fittings
The Quick Star QSL range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, tube to tube adapters offer a variety of connections to suit each and every application.
Features and Benefits
• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• L shaped elbow pneumatic fitting
• Tube to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different fitting connector sizes
• Strong and durable thermoplastic (PBT)
• Can be rotated in any direction
• Effortless, quick and simple push-in installation
• L shaped elbow pneumatic fitting
• Tube to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different fitting connector sizes
• Strong and durable thermoplastic (PBT)
• Can be rotated in any direction
QSL-8HL Quick Star L-Fitting from FESTO push-in fitting for core pneumatic applications. High alloy steel, non-corrosive retaining claw within the fitting holds the tubing securely without damaging its surface.
Features and Benefits
- Reliably connected
- The fitting can be aligned after assembly
- Assembly position - any
- Operating medium - Compressed air in accordance with ISO8573-1:2010 [7:-:-]
- Pneumatic connection, port 1 – Push-in sleeve QS-8
- Pneumatic connection, port 2 – for tubing with 8 mm outside diameter
- Material release ring – Polyoxymethylene (POM)
- Material of tubing seal – Nitrile rubber (NBR)
- Conforms to RoHS
Specifications
Attribute | Value |
|---|---|
| Connector A | Push In 8 mm |
| Connector B | Push In 8 mm |
| Pneumatic Fitting Type | Elbow Tube-toTube Adaptor |
| Connection Style | Tube-to-Tube |
| Manufacturer Series | QSL |
| Model Number p | 153067 |
| Thread Material | Nickel Plated Brass |
| Body Material | PBT |
| Chemical Resistant | No |
| Swivel Connection | No |
| Maximum Operating Pressure | 14 bar |
| Angle | 90° |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +80°C |
| Food Grade | No |
| Mounting Type | Inline |
