Wurth Elektronik 3593 Series Pluggable Terminal Block, 7-Contact, 3.81 mm Pitch, 1-Row
- RS Stock No.:
- 191-6553
- Mfr. Part No.:
- 691359340007
- Manufacturer:
- Wurth Elektronik

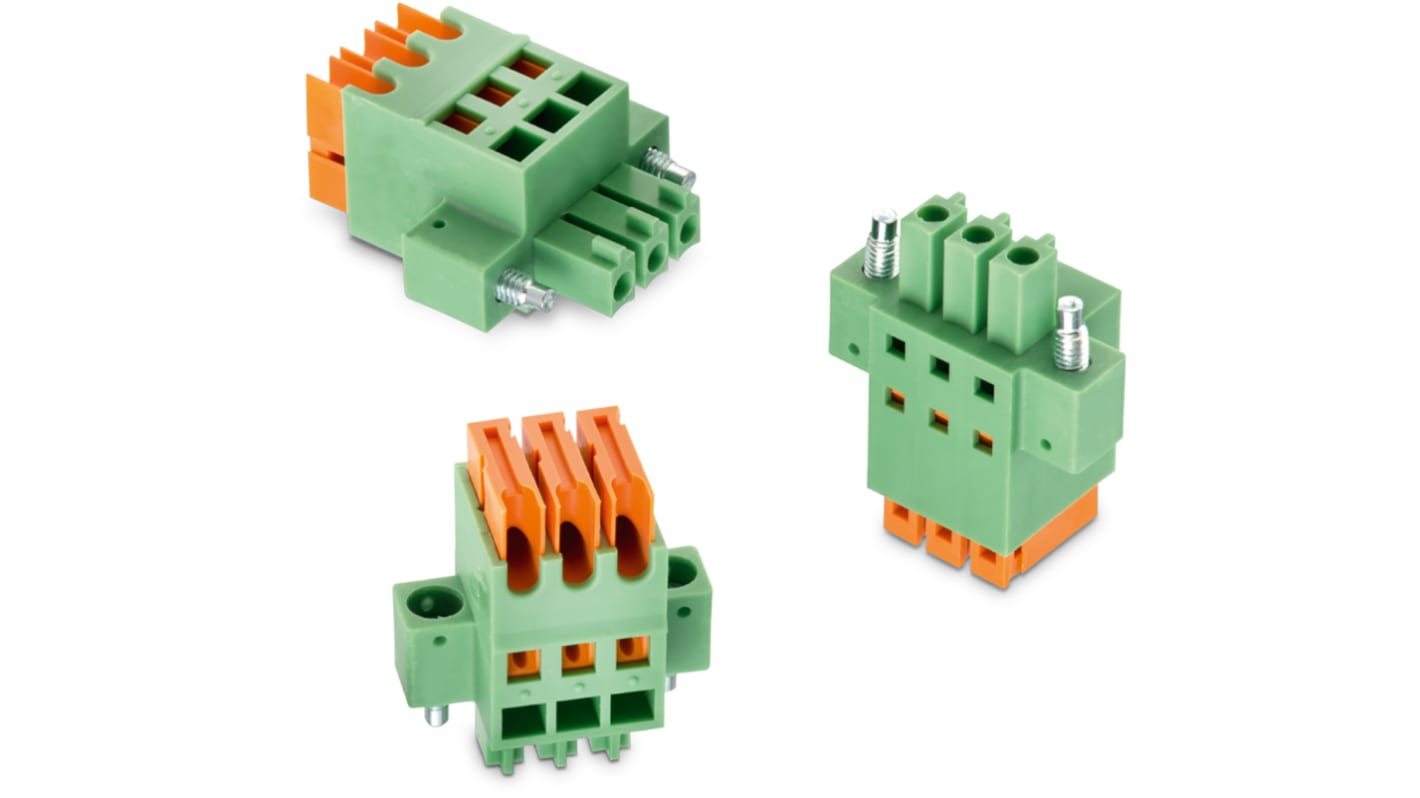

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
MYR43.26
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 2 - 14 | MYR21.63 | MYR43.26 |
| 16 - 28 | MYR19.87 | MYR39.74 |
| 30 + | MYR17.97 | MYR35.94 |
*price indicative
- RS Stock No.:
- 191-6553
- Mfr. Part No.:
- 691359340007
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 7 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Current | 5A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.32mm² | |
| Maximum Wire Size mm² | 0.51mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 22 AWG | |
| Maximum Wire Size AWG | 20 AWG | |
| Orientation | Horizontal | |
| Colour | Orange, Green | |
| Wire Connection Method | Solder | |
| Voltage | 1.6 kV | |
| Depth | 26.8mm | |
| Standards/Approvals | RoHS | |
| Series | 3593 | |
| Length | 31.86mm | |
| Width | 12.9 mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 7 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Current 5A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.32mm² | ||
Maximum Wire Size mm² 0.51mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 22 AWG | ||
Maximum Wire Size AWG 20 AWG | ||
Orientation Horizontal | ||
Colour Orange, Green | ||
Wire Connection Method Solder | ||
Voltage 1.6 kV | ||
Depth 26.8mm | ||
Standards/Approvals RoHS | ||
Series 3593 | ||
Length 31.86mm | ||
Width 12.9 mm | ||
- COO (Country of Origin):
- CN
Wurth Elektronik WR-TBL are available in different connection types and offer large and modular Terminal Block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
